CHASSIS 5-35

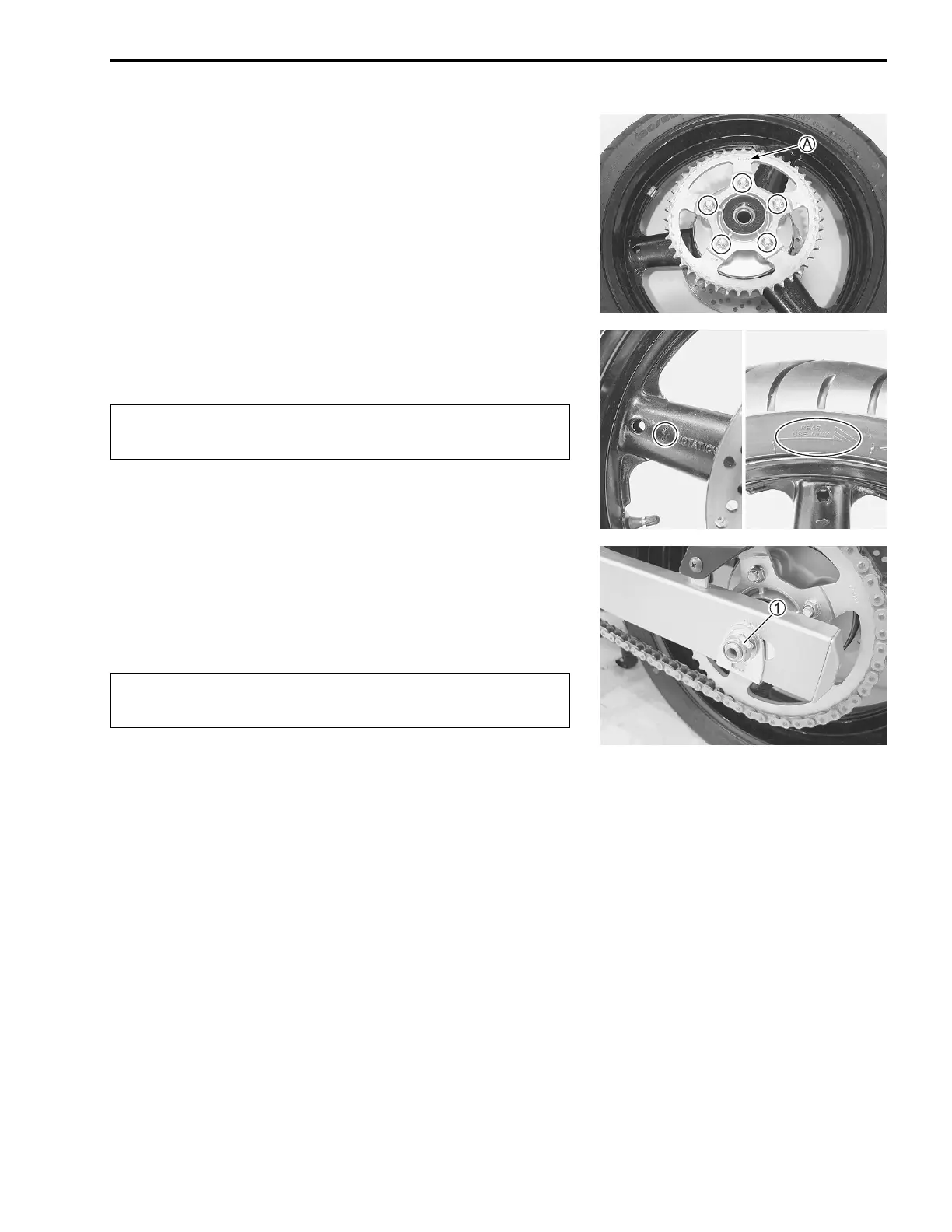

• Tighten the rear sprocket nuts to the specified torque.
# Rear sprocket nut: 50 N·m (5.0 kgf-m)
NOTE:
The stamped mark

A on the rear sprocket should face outside.
WHEEL
• Install the rear wheel.
)
• Adjust the drive chain slack after installing the rear wheel.
(!2-14)
• Tighten the rear axle nut

1 to the specified torque.
# Rear axle nut: 100 N·m (10.0 kgf-m)
)
• Install a new cotter pin. (E-28)
The directional arrow on the wheel and tire must point
to the wheel rotation, when remounting the wheel.
After remounting the rear wheel, pump the brake pedal
a few times to check for proper brake operation.

Suzuki GSF650S Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Bore x Stroke	65.5 mm x 48.7 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Displacement	656 cm³
Front Brakes	Disc
Rear Brakes	Disc
Front Tire	120/70ZR17
Rear Tire	160/60ZR17
Fuel Tank Capacity	19 liters
Seat Height	790 mm
