2-84

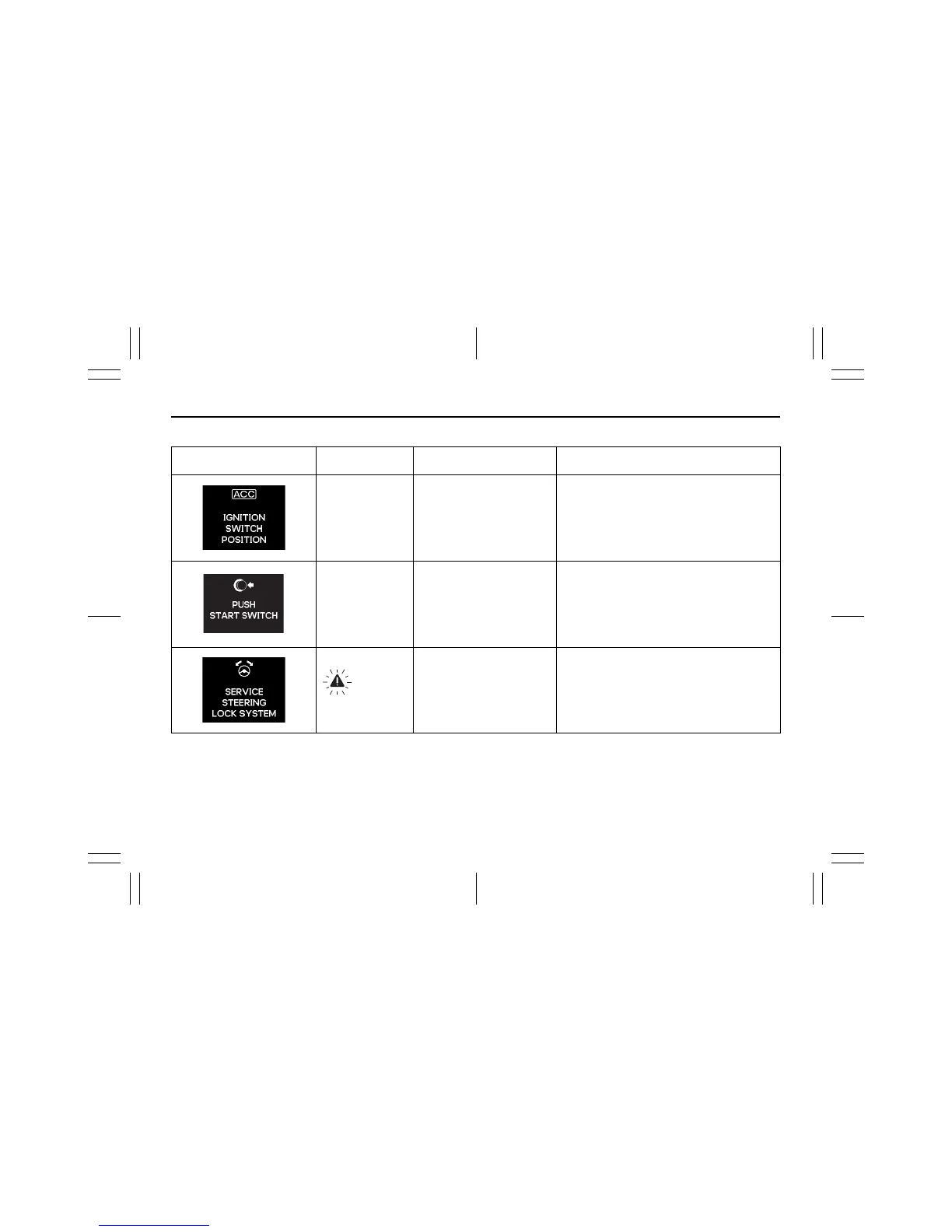

BEFORE DRIVING

75RM0-01E

Vehicle with keyless push start system

Warning and indicator

message

Master warning

indicator light

Sound Cause and remedy

61MM0A163

Off Off This message is displayed when the ACC posi-

tion is selected as the ignition mode. (#1)

75RM214

Off Off The brake pedal (for CVT or Auto Gear Shift

models) or the clutch pedal (for manual tran-

saxle models) is depressed. Press the engine

switch to start the engine.

61MM0A168

Blinks Beep (one time from interior

buzzer)

There is a problem with the steering lock sys-

tem.

Have your vehicle inspected by an authorized

SUZUKI dealer.

(#1) This message will disappear for a while even if the problem that caused the message to appear is not corrected.

Modification Warning4
