6-6

VEHICLE LOADING AND TOWING

75RM0-01E

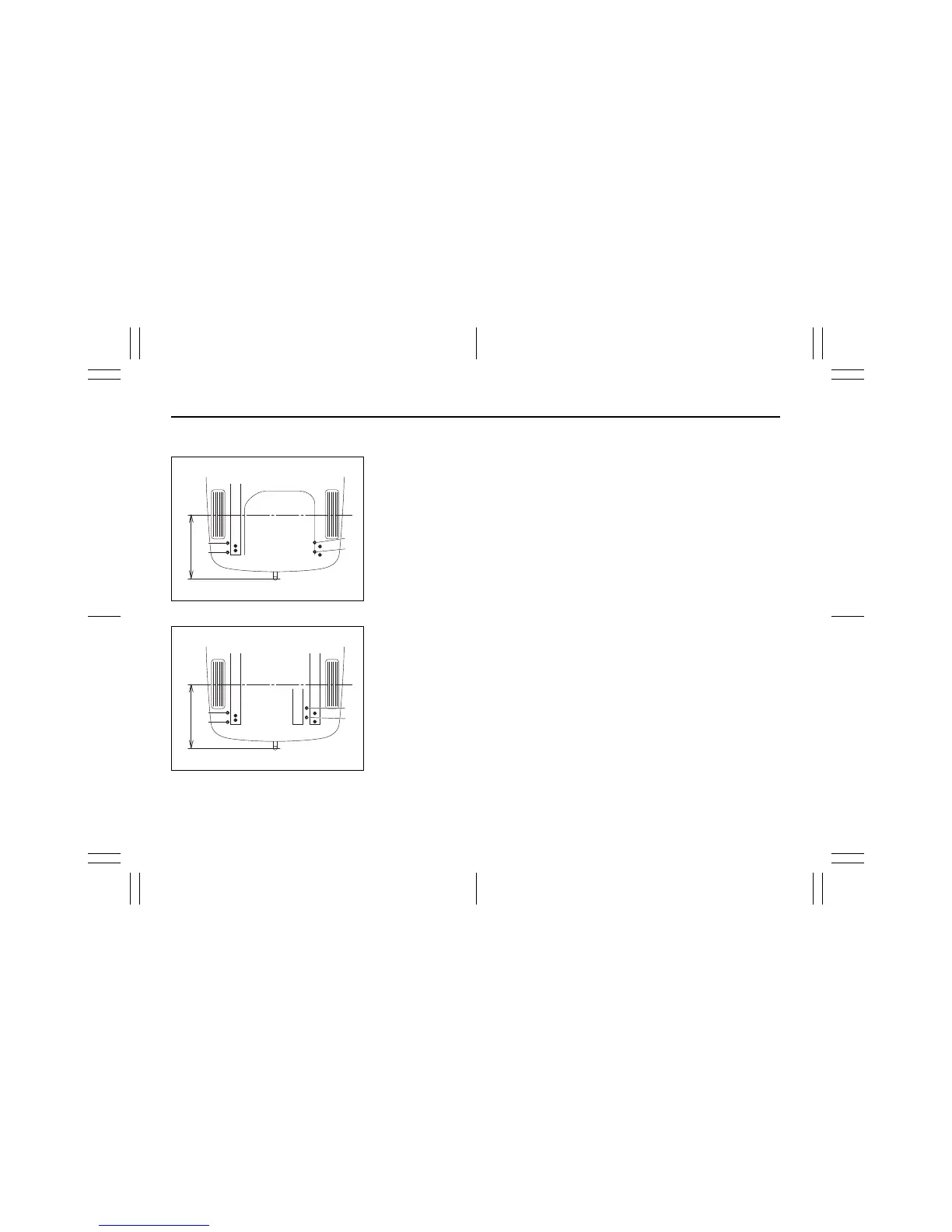

Trailer hitch installation points

2WD models

75RM364

4WD models

75RM365

(1) Side

(2) Diagonal

Maximum vertical load on trailer hitch

point (EU)

50 kg (110 lbs)

Maximum permissible overhang “a”

623 mm (24.5 in.)

“a”

(1)

“a”

(1)

(2)
