OTHER CONTROLS AND EQUIPMENT
75RM0-01E
Manual heating and air conditioning system

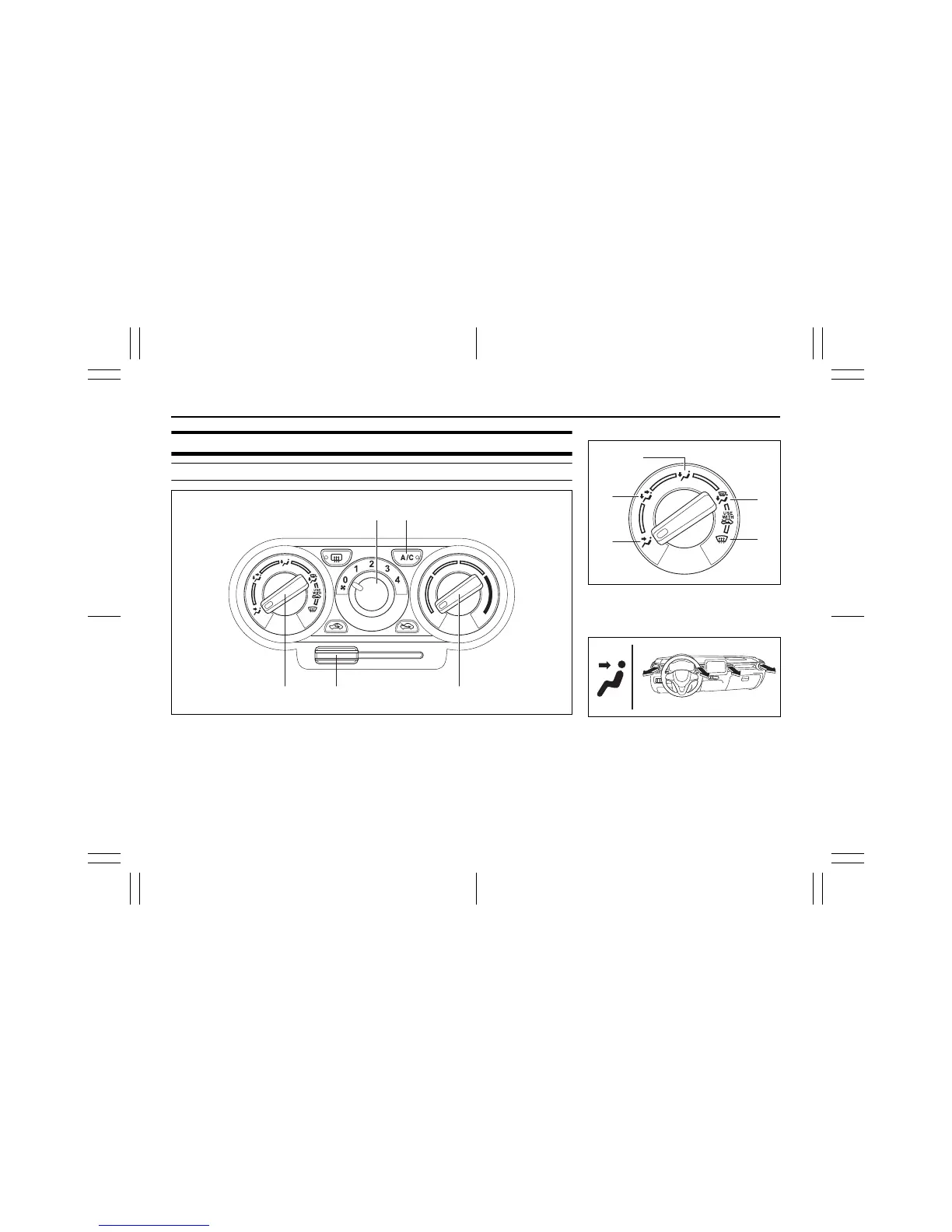

Description of controls
75RM060
Temperature selector (1)
This is used to select the temperature by turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to select blower speed by turning the selector.
(3) (1)(4)
(2) (5)
Air flow selector (3)
75RM022
This is used to select one of the following
functions.
VENTILATION (a)
75RM352
Temperature-controlled air comes out of
the center and side air outlets.
(a)
(b)
(e)
(d)
(c)
