Suzuki IGNIS Series 2016 User Manual

7-47
INSPECTION AND MAINTENANCE
75RM0-01E
NOTE:
Check that the fuse box always carries
spare fuses.

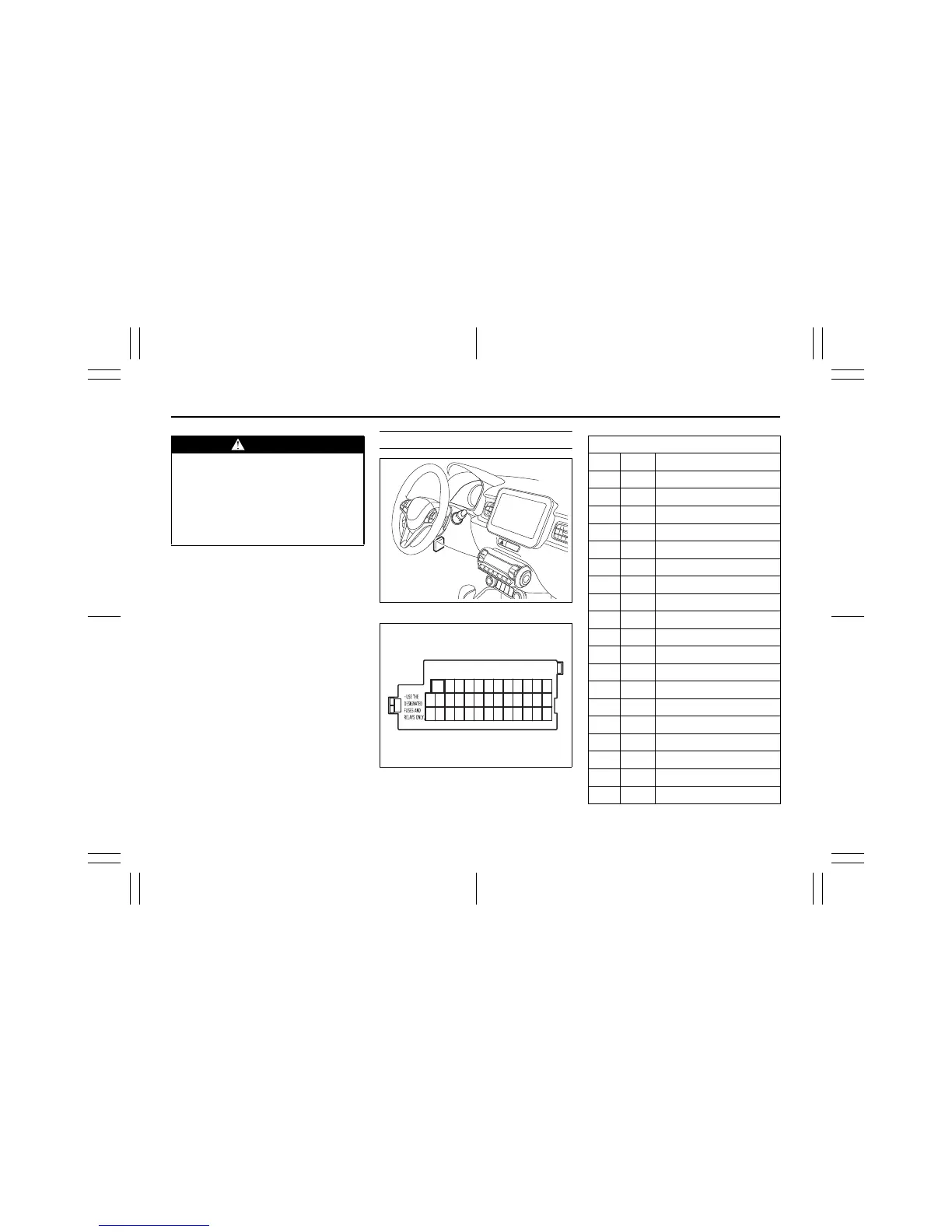

Fuses under dashboard
75RM299
80P0185
WARNING
If the main fuse or a primary fuse
blows, have your vehicle inspected
by an authorized SUZUKI dealer.
Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
EXAMPLE
12
15
28
14
27
13
26
3
16
29
4
17
30
5
18
31
6
19
32
7
20
33
8
21
34
9
22
35
10
23
36
11
24
37
12
25
38
PRIMARY FUSE
(1) 30 A Power window
(2) 10 A Meter
(3) 15 A Ignition coil
(4) 5 A Ignition-1 signal 2
(5) 20 A Shift lever
(6) – Blank
(7) – Blank
(8) 20 A Door lock
(9) 15 A Steering lock
(10) 10 A Hazard
(11) 5 A A-STOP controller
(12) 10 A Rear fog lamp
(13) 5 A
ABS/ESP
®
control module
(14) 15 A Seat heater
(15) 5 A Ignition-1 signal 3
(16) 10 A Dome light-2
(17) 5 A Dome light
(18) 15 A Radio
(19) 5 A CONT
(20) 5 A Key 2
