For countries applied for the revised edition since the third edition of UN Regulation No.10
Installation of Radio Frequency (RF) Transmitting Equipment
Your vehicle is conformed to the revised edition since the third edition of UN Regulation No.10.
When you intend to use RF transmitting equipment in your vehicle, we strongly recommend that you select the equipment which con-
forms to applicable rules or regulations in your country, and consult your SUZUKI dealer or qualified service technician for advice.

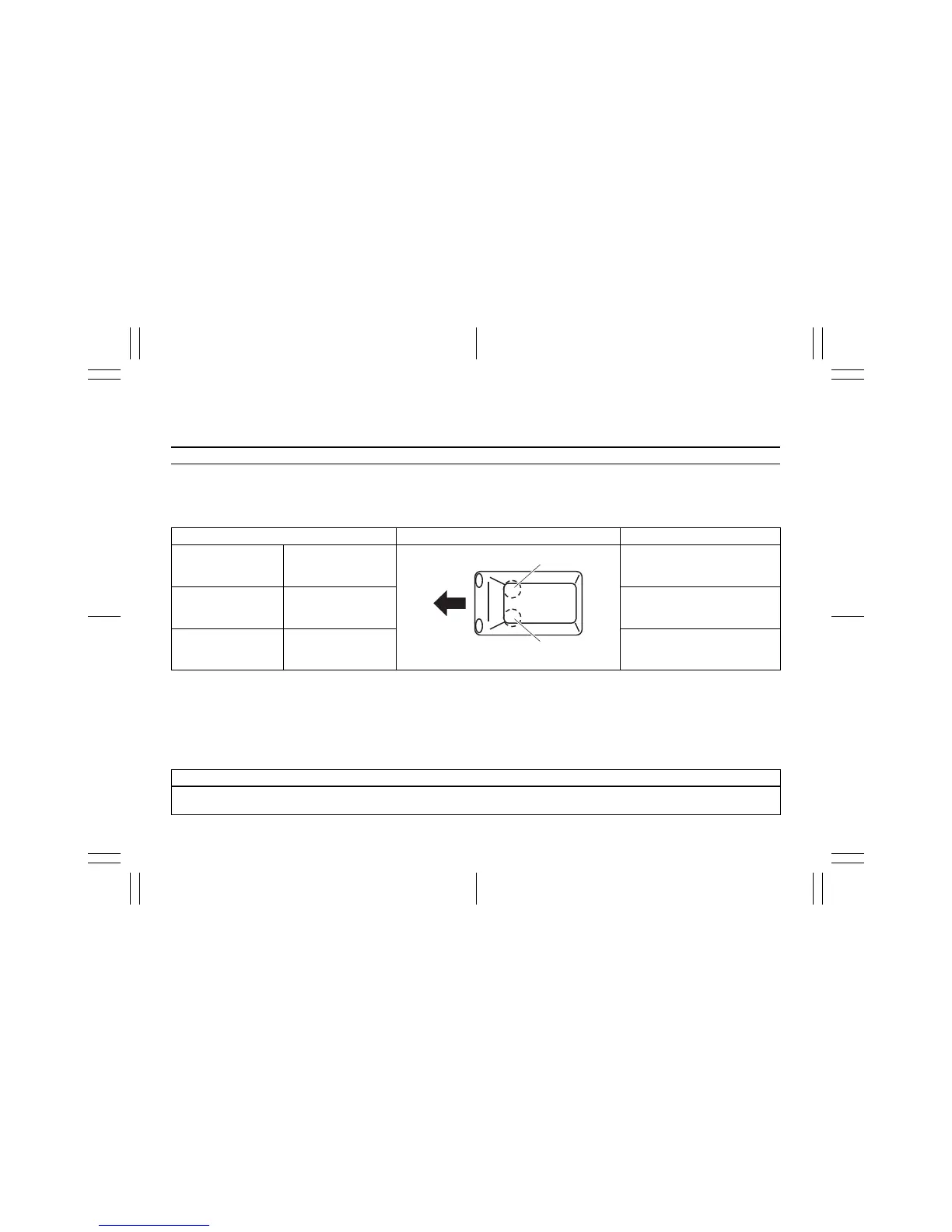

Table : Installing and the use of the on-board RF transmitter equipment
*The illustration is example of hatchback vehicle.
Specific conditions for installation
NOTE:
1) Antenna cable is routed as far as possible from the vehicle electronic devices and wiring harness in the vehicle.
2) Power cable of transmitter is properly connected to lead-acid battery on the vehicle.
Frequency bands (MHz) Antenna position at vehicle* Maximum output power (W)
144-146 Amateur band
75RM342
50
430-440 Amateur band 50
1200-1300 Amateur band 10
(1) Front (2) Antenna installation position: Front left of roof (3) Antenna installation position: Front right of roof
NOTICE
Before using your vehicle, check if there is no interference to all electrical devices on your vehicle for both Standby mode
and Transmitting mode of the RF transmitting equipment.
(1)
(2)
(3)
