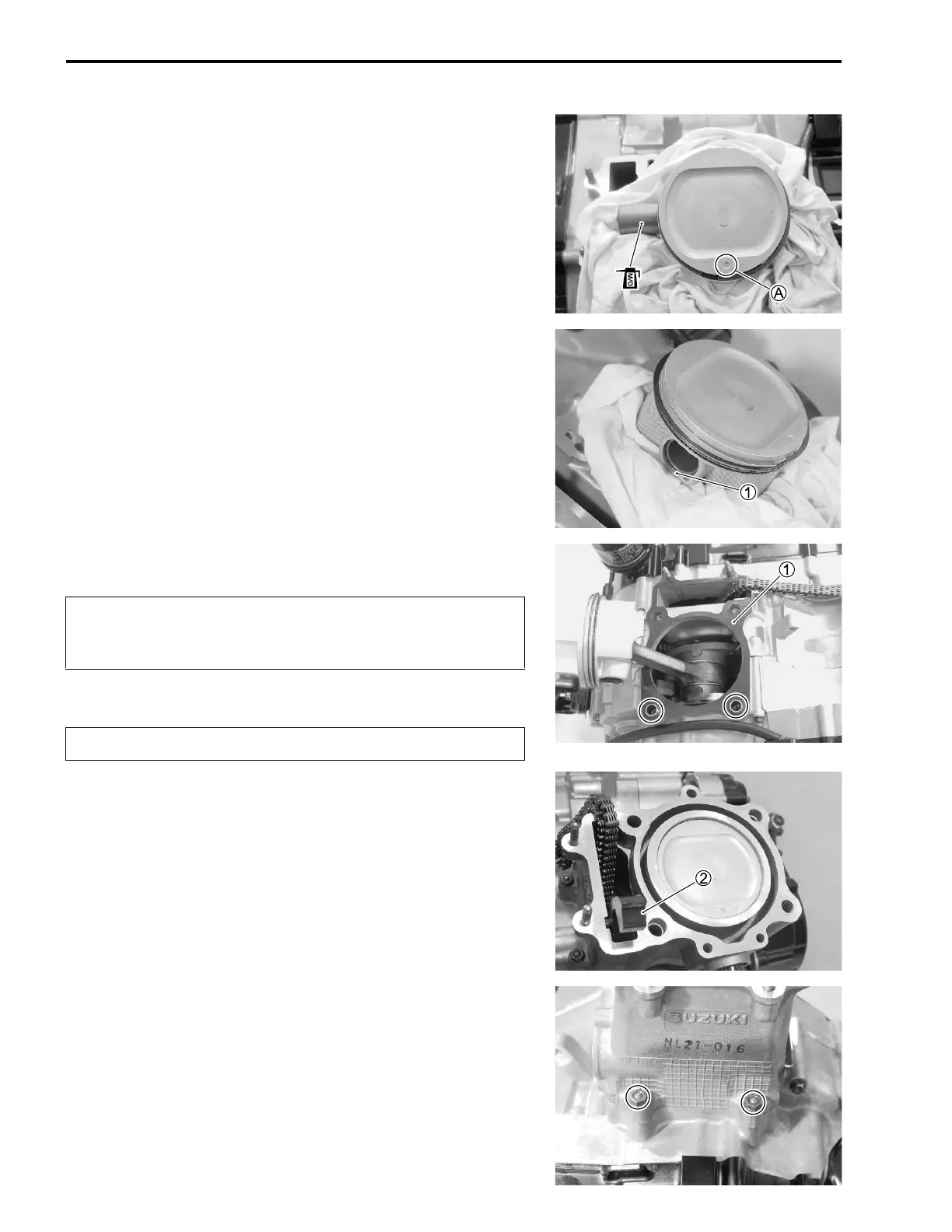

3-100 ENGINE
• Apply a light coat of molybdnum oil solution to the piston pin.
* MOLYBDNUM OIL SOLUTION
• Install the piston and piston pin.
NOTE:
When installing the piston, the dent
A on the piston head is
located to the exhaust side.
• Place a cloth beneath the piston, install the circlip
1.
CYLINDER
"
• Fit the dowel pins and the new gasket
1.
"
• Install the cam chain guide
2.
NOTE:
There is a holder for the bottom end of the cam chain guide cast
in the crankcase. Be sure that the guide
2 is inserted properly
or binding of the cam chain and guide may result.
• Hold each piston ring with properly position, insert the piston
into the cylinder.
• Tighten the cylinder base nuts temporarily.
When turning the crankshaft, pull the cam chain
upward, or the chain will be caught between the crank-
case and the cam drive sprocket.
Use a new gasket to prevent gas leakage.
