8-14 ELECTRICAL SYSTEM
OIL SEAL

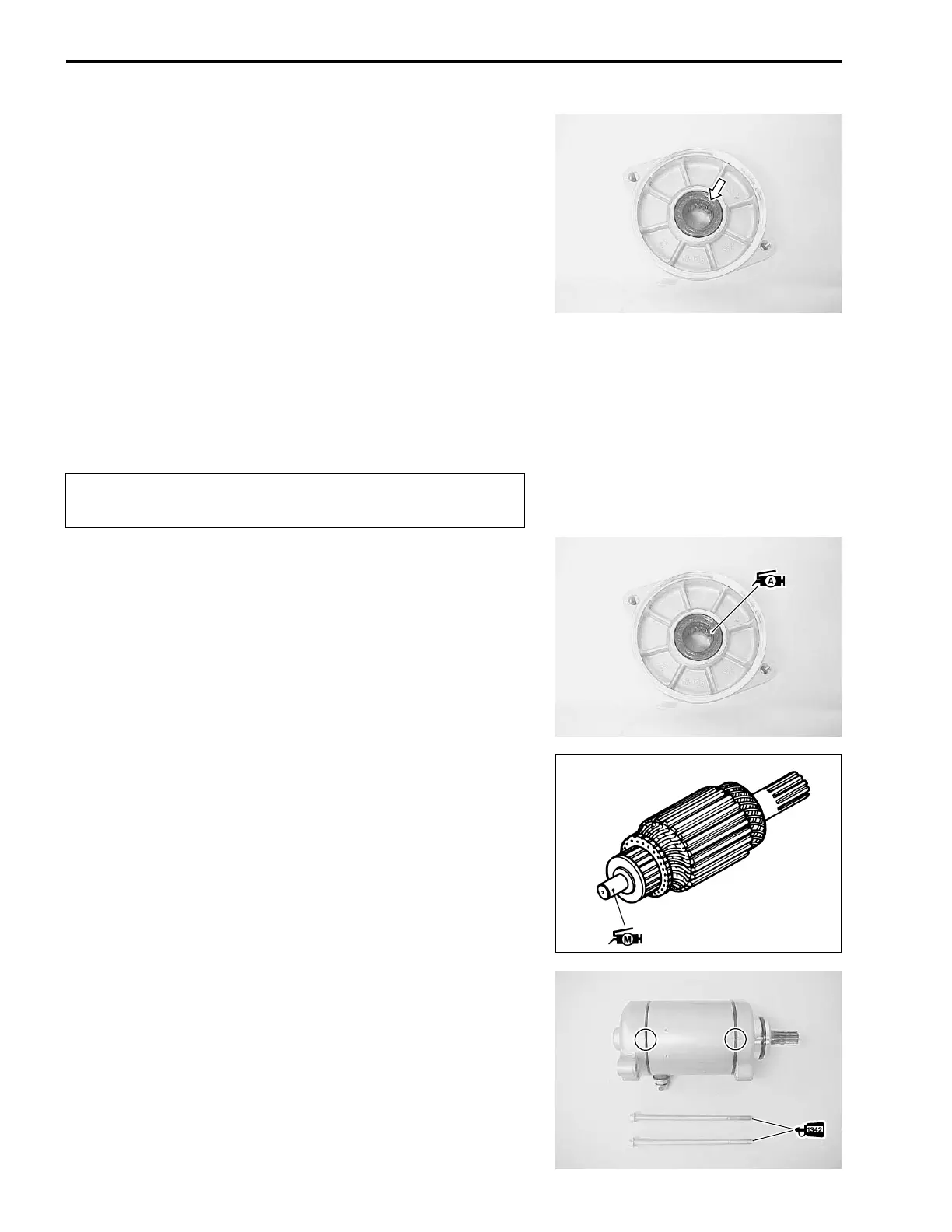

Check the seal lip for damage or leakage. If any damages are
found, replace the starter motor with a new one.
STARTER MOTOR REASSEMBLY AND
REMOUNTING
Reassemble and remount the starter motor in the reverse order
of removal and disassembly. Pay attention to the following
points:
"
• Apply SUZUKI SUPER GREASE “A” to the lip of the oil seal.
. 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Apply a small quantity of SUZUKI MOLY PASTE to the arma-
ture shaft.
/ 99000-25140: SUZUKI MOLY PASTE
• Align the match marks on the starter motor case with the
match mark on the housing end.
• Apply a small quantity of THREAD LOCK “1342” to the starter
motor housing bolts and tighten it sequrely.
0 99000-32050: THREAD LOCK “1342”
Replace the removed O-rings with new ones to pre-
vent oil leakage and moisture.
