9-12 SERVICING INFORMATION
WIRING HARNESS, CABLE, AND HOSE ROUTING

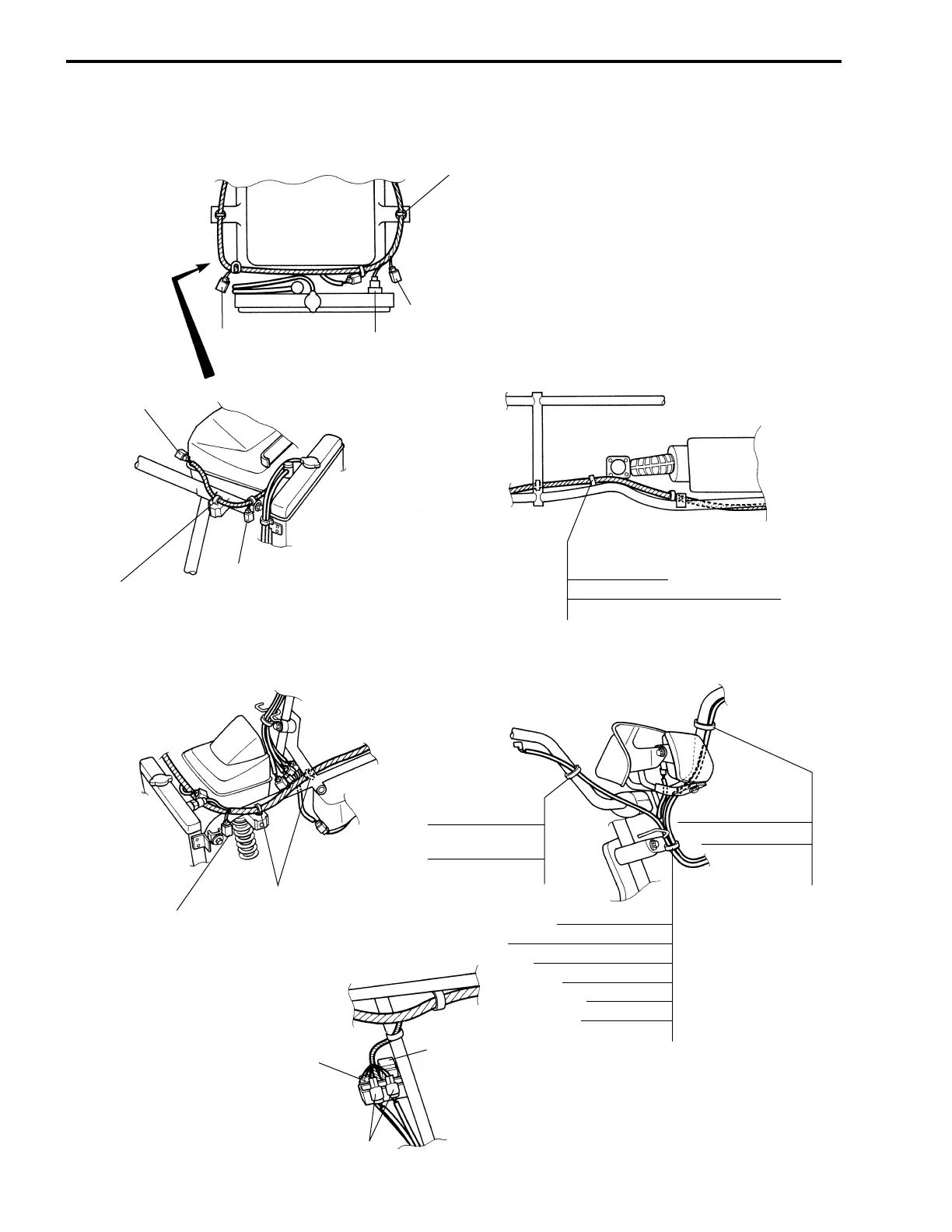

WIRING HARNESS ROUTING
Fix the wiring harness
clamp to the frame.
To headlight (LH)
Cooling fan thermo-switch
To headlight (RH)
To power source
Fix the wiring harness
clamp to the frame.
To headlight (RH)
Wiring harness
Engine coolant temperature switch
Clamp
To headlight (LH)
Fix the wiring harness
clamp to the frame.
Speedometer
Ignition switch
Clamp
Handlebar switch (LH)
Rear brake switch
Front brake switch
2WD/4WD selecting button
Front brake switch
2WD/4WD
selecting button
Clamp
2WD/4WD selecting relay
2WD/4WD motor
2WD/4WD switch coupler
Clamp
Handlebar switch (LH)
Rear brake switch
