ELECTRICAL SYSTEM 8-23

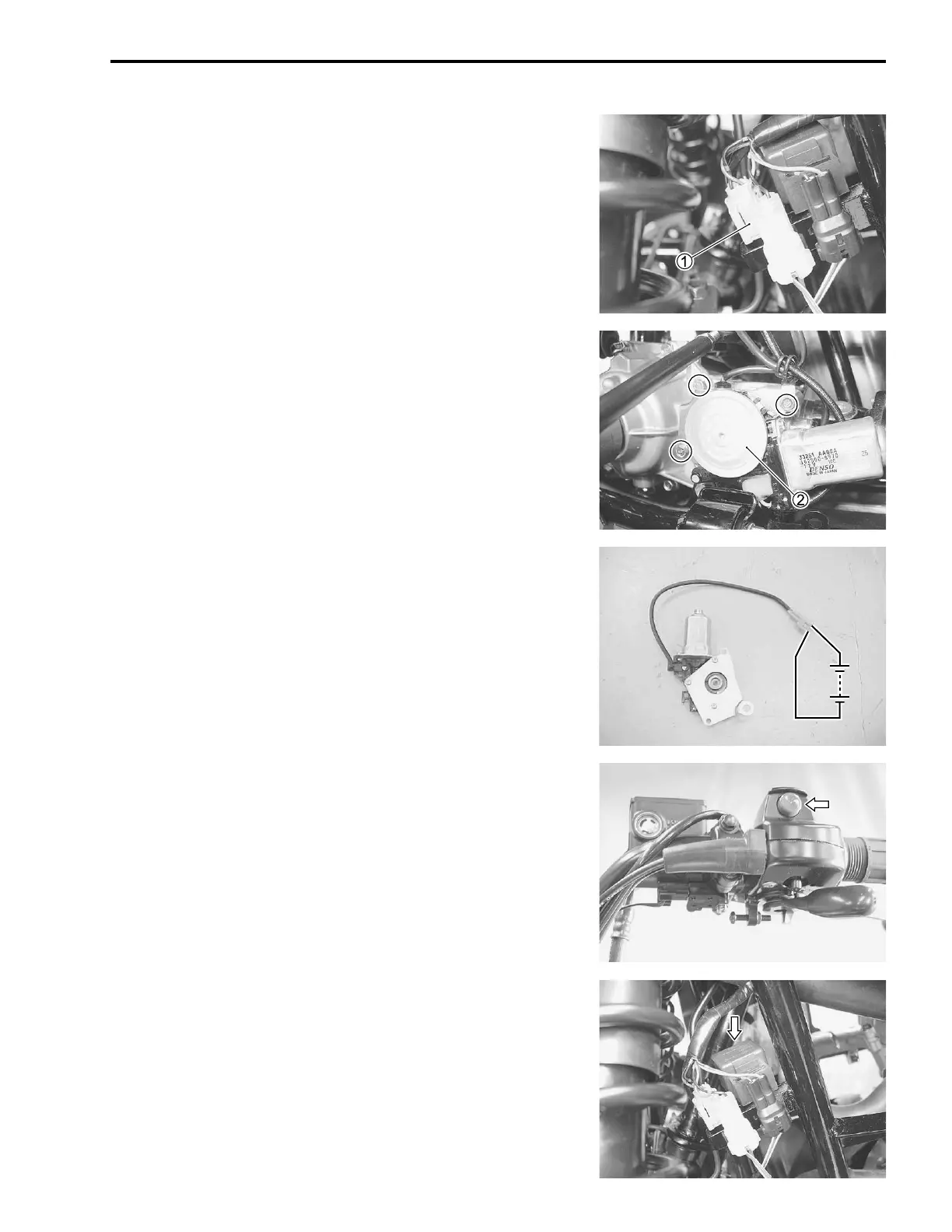

INSPECTION
2WD/4WD MOTOR
• Remove the left inner fender. (!7-7)
• Disconnect the 2WD/4WD motor coupler
1.
• Remove the 2WD/4WD motor
2.
Connect the 12 V battery to the 2WD/4WD motor lead wires as
shown. If the motor does not run, replace the motor assembly
with a new one.
• Install the 2WD/4WD motor and tighten the bolts to the speci-
fied torque. (!4-15)
2WD/4WD SELECTING BUTTON
(!8-33)
2WD/4WD SELECTING RELAY
• Remove the left inner fender. (!7-7)
• Remove the 2WD/4WD selecting relay.
12 V12 V
