DRIVE TRAIN 4-3
FRONT DRIVE (DIFFERENTIAL) REMOVAL
• Remove the front fender and front wheels. (!7-6 and 7-11)
• Drain the differential gear oil. (!2-11)
• Remove the front suspension. (!7-33)

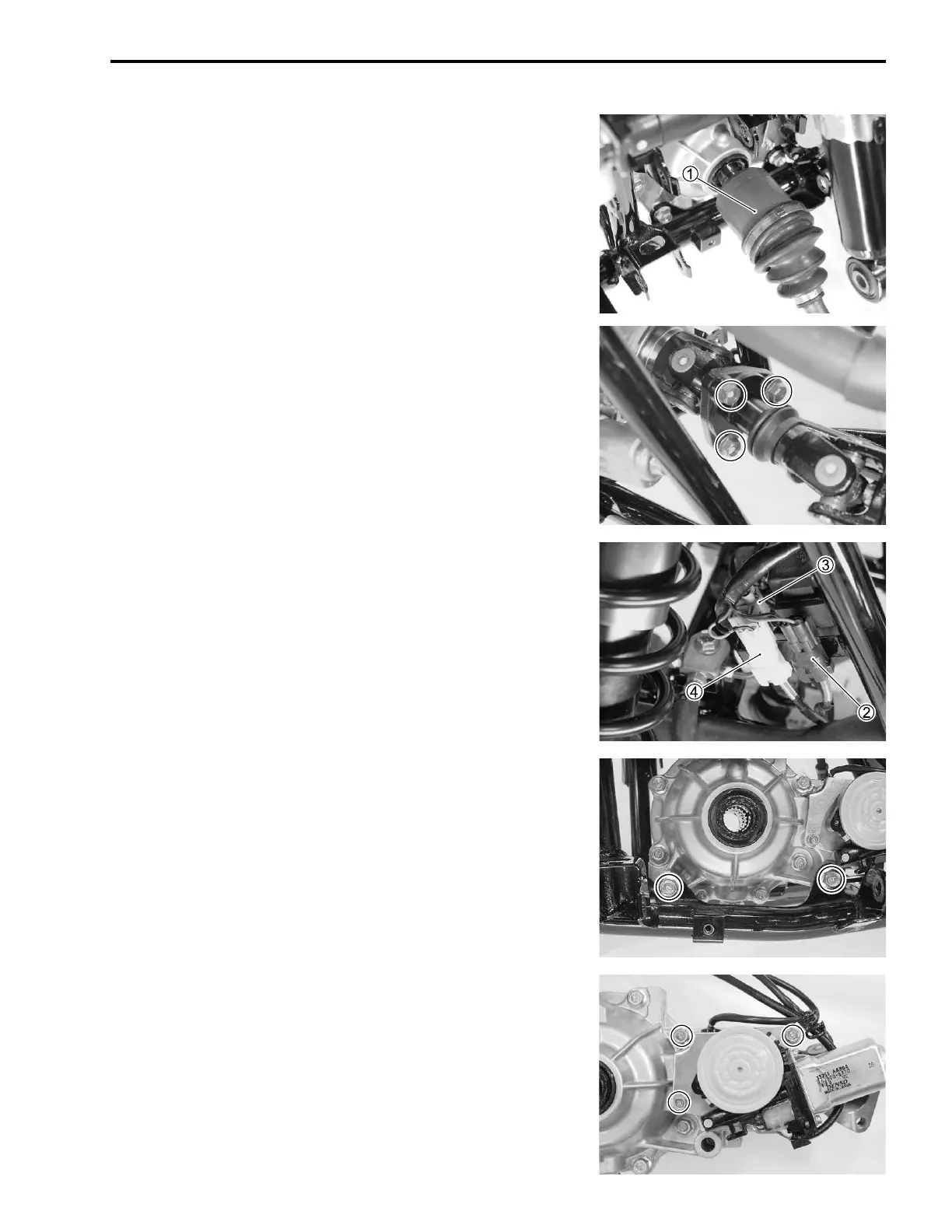

• Hold the inboard joint
1 of the drive shaft and tug the drive
shaft horizontally.
NOTE:
If it is difficult to remove the drive shaft from the differential case,
use the special tool.
• Remove the front propeller shaft flange coupling bolts.
• Disconnect the following lead wire couples.
2 2WD lead wire coupler
3 2WD/4WD motor lead wire coupler
4 4WD lead wire coupler
• Remove the front drive (differential) gear case mounting bolts.
• Remove the front drive (differential) assembly out of the
frame.
FRONT DRIVE (DIFFERENTIAL)
DISASSEMBLY
2WD/4WD SHIFTING MOTOR
• Remove the 2WD/4WD shifting motor assembly.
MOTOR INSPECTION !8-23.
