DRIVE TRAIN 4-37
• Install the rear drive gear case under cover.

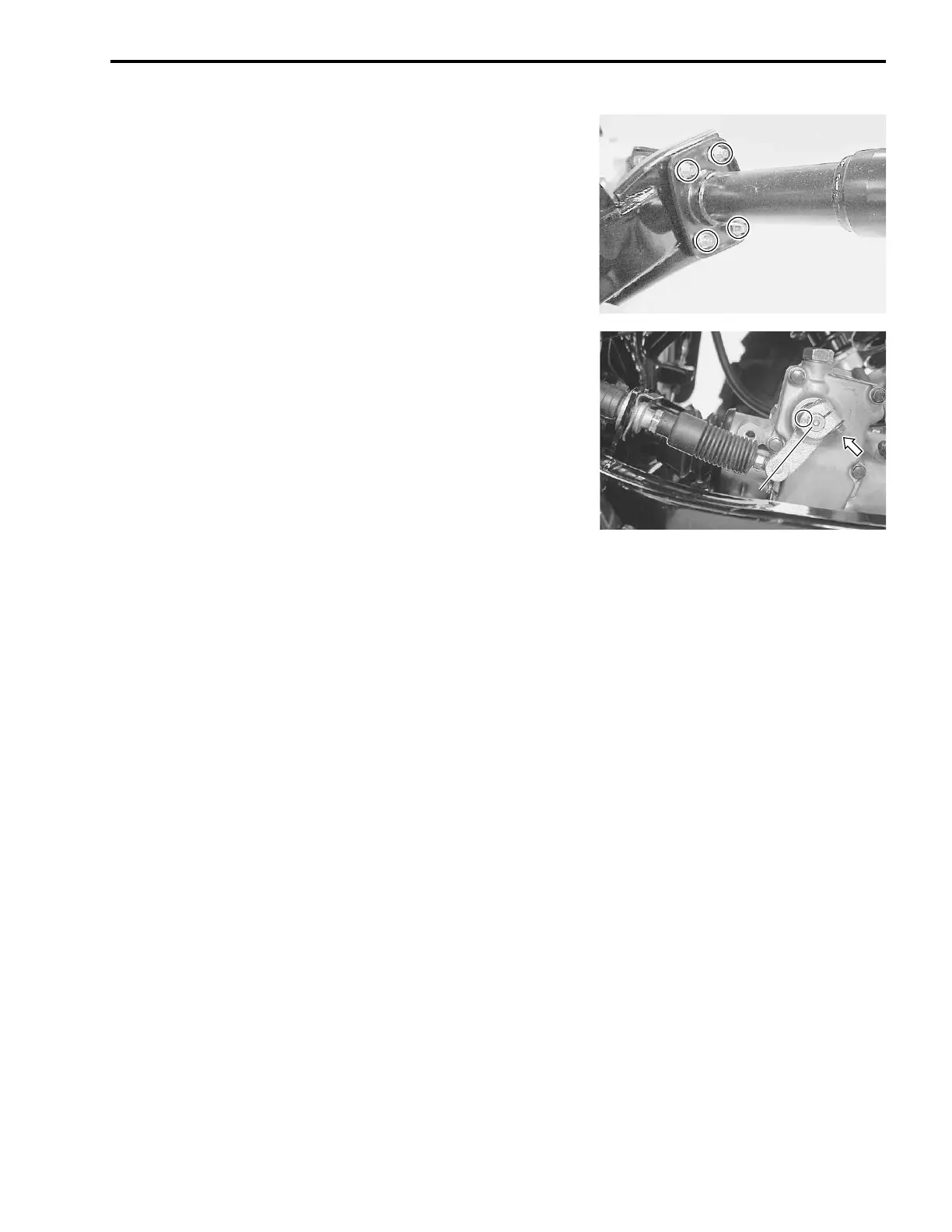

• Tighten the axle housing mounting bolts to the specified
torque.
( Axle housing mounting bolt:
60 N·m (6.0 kgf-m, 43.5 lb-ft)
• When installing the parking cam lever, align the punched
marks on the shaft and lever.
• Make sure that the parking cam lever is in “P” position.
• Tighten the lever bolt to the specified torque.
( Parking cam lever bolt: 10 N·m (1.0 kgf-m, 7.3 lb-ft)
• Adjust the cable play. (!7-83)
• Pour the specified hypoid gear oil (SAE #90) in through the
filler hole. (!2-11)
• Install the rear brake caliper. (!7-51)
• Install the rear wheels. (!7-11)
P
