CHASSIS 7-31

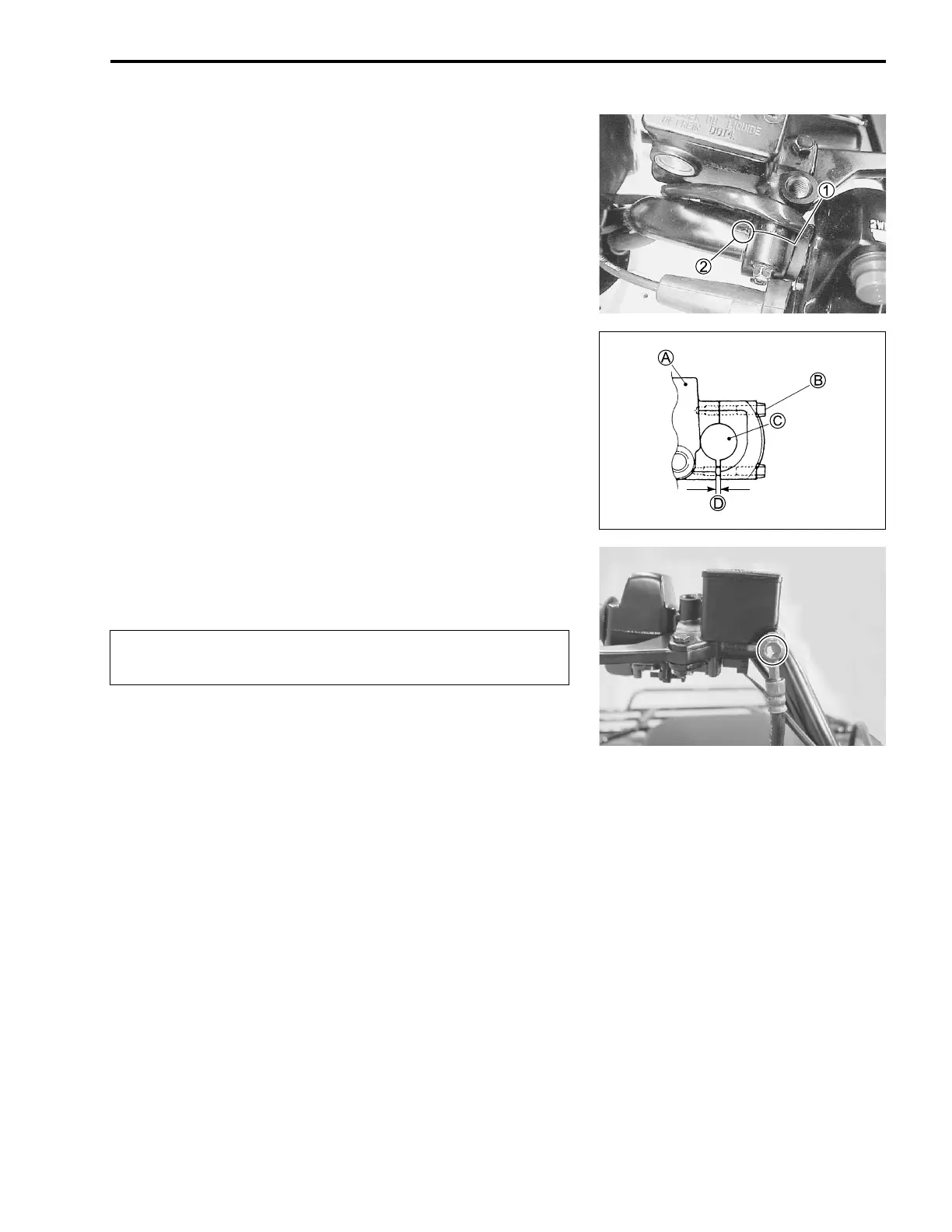

When remounting the master cylinder on the handlebars, align
the master cylinder holder's mating surface
1 with the punch
mark
2 on the handlebar and tighten the upper clamp bolt first.
# Master cylinder clamp bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
A Master cylinder
B Master cylinder upper clamp bolt
C Handlebar
D Clearance
• Tighten the brake hose union bolt to the specified torque.
# Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
$
Bleed air from the brake system after reassembling
the master cylinder. (!2-17)
