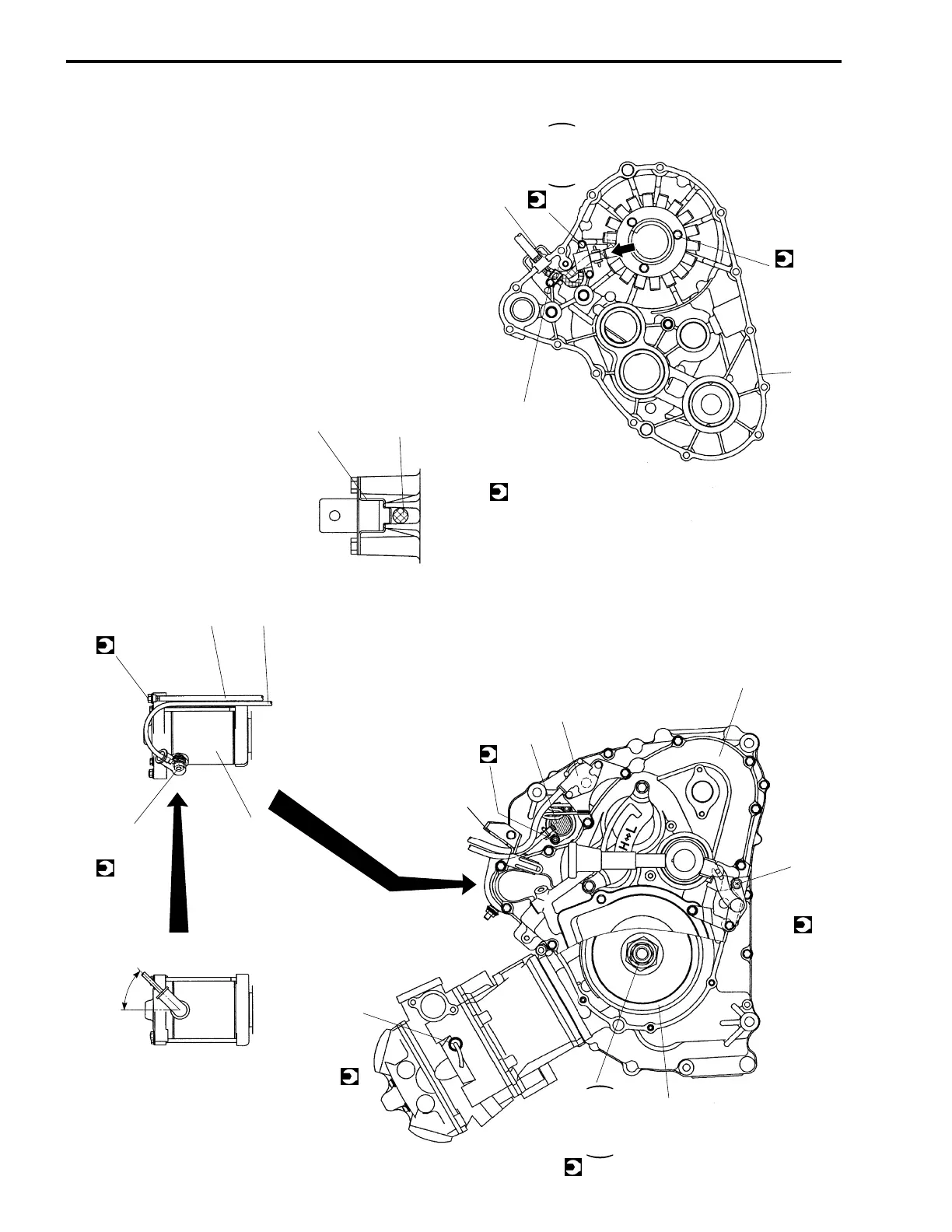

9-14 SERVICING INFORMATION
45˚
AA
VIEW A
Starter motor
5 N·m (0.5 kgf-m, 3.7 lb-ft)
Gromet
6.5 N·m (0.65 kgf-m, 4.7 lb-ft)
Reverse switch
Neutral switch
5 N·m 0.5 kgf-m 3.7 lb-ft
6 N·m (0.6 kgf-m, 4.3 lb-ft)
10 N·m (1.0 kgf-m, 7.0 lb-ft)
Ground wire
Starter motor lead wire
Clamp
Generator lead wire
10 N·m (1.0 kgf-m, 7.0 lb-ft)
Transfer cover
Engine coolant temperature switch
10 N·m (1.0 kgf-m, 7.0 lb-ft)
Generator rotor
4 N·m (0.4 kgf-m, 3.0 lb-ft)
Transfer cover
Reverse cable braket
160 N·m 16.0 kgf-m 115.5 lb-ft
