SERVICING INFORMATION 9-17

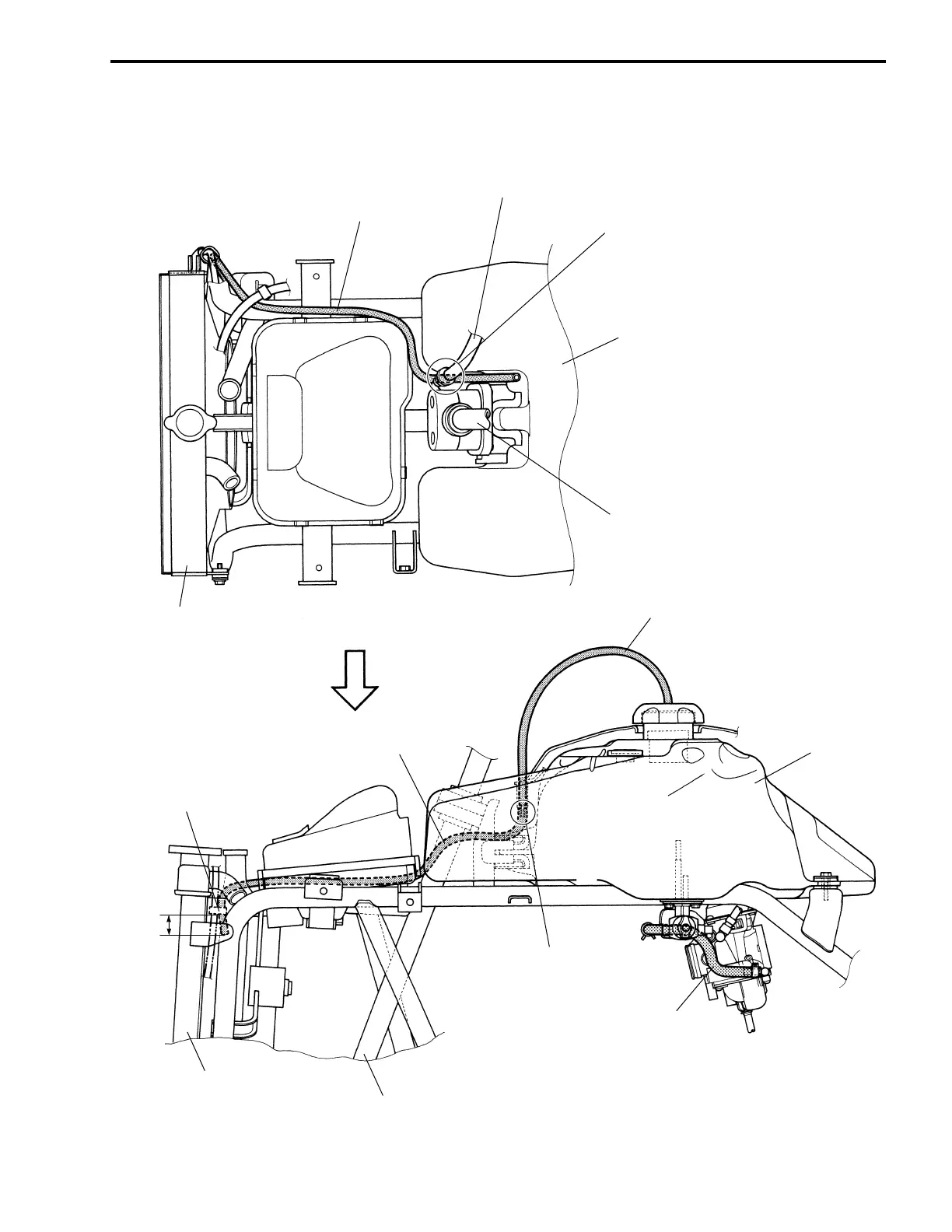

Pass the breather hose No.2
the right of the brake hose.
Fuel tank
Steering shaft
Radiator
Clamp the breather hose No.2
at 20 mm (0.8 in) from hose end.
20mm
(0.8 in)
Radiator
Steering shaft
Connect the breather hose No.2
to the fuel tank top cover.
Fuel tank
Breather hose No.1
Fuel hose
Breather hose No.2
Breather hose No.2
Brake hose
