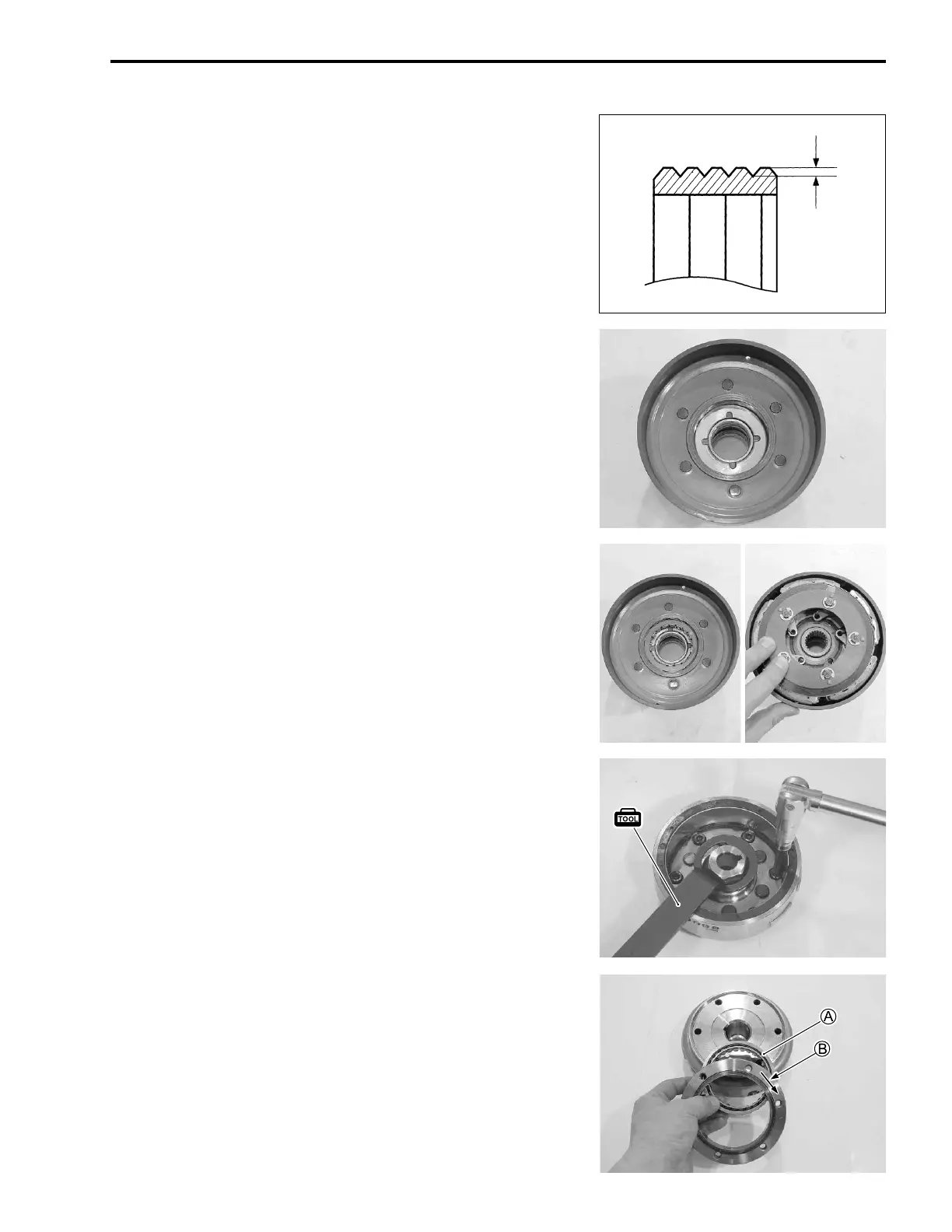

ENGINE 3-43
CLUTCH SHOES
Inspect the clutch shoes for chips, cracks, uneven wear, and
heat discoloration. Also, check the depth of the grooves on the
clutch shoes. If there is no groove at any part of the shoes,
replace the shoes as a set.
NOTE:
The clutch shoes must always be changed as a set.
CLUTCH WHEEL
Inspect the condition of the inner clutch wheel surface for scuffs,
scratches, cracks or uneven wear. If any damages are found,
replace the clutch wheel with a new one.
ONE-WAY CLUTCH
Put the one-way clutch onto the clutch wheel and install the
clutch shoe assembly. Rotate the clutch shoe assembly by hand
to inspect that the shoe assembly turns to one direction only and
never turns to the opposite direction. If the shoe assembly turns
to both directions or is locked, replace the one-way clutch with a
new one.
STARTER CLUTCH
• Remove the starter clutch securing bolts by holding the rotor
with the special tool.
( 09930-44541: Rotor holder
• Install the starter clutch in the proper direction.
NOTE:
* When installing the starter clutch onto the rotor, make sure the
flange side
A of the one way clutch faces to the rotor.
* The arrow mark
B must face to the engine side.
• Apply engine oil to the starter clutch.
