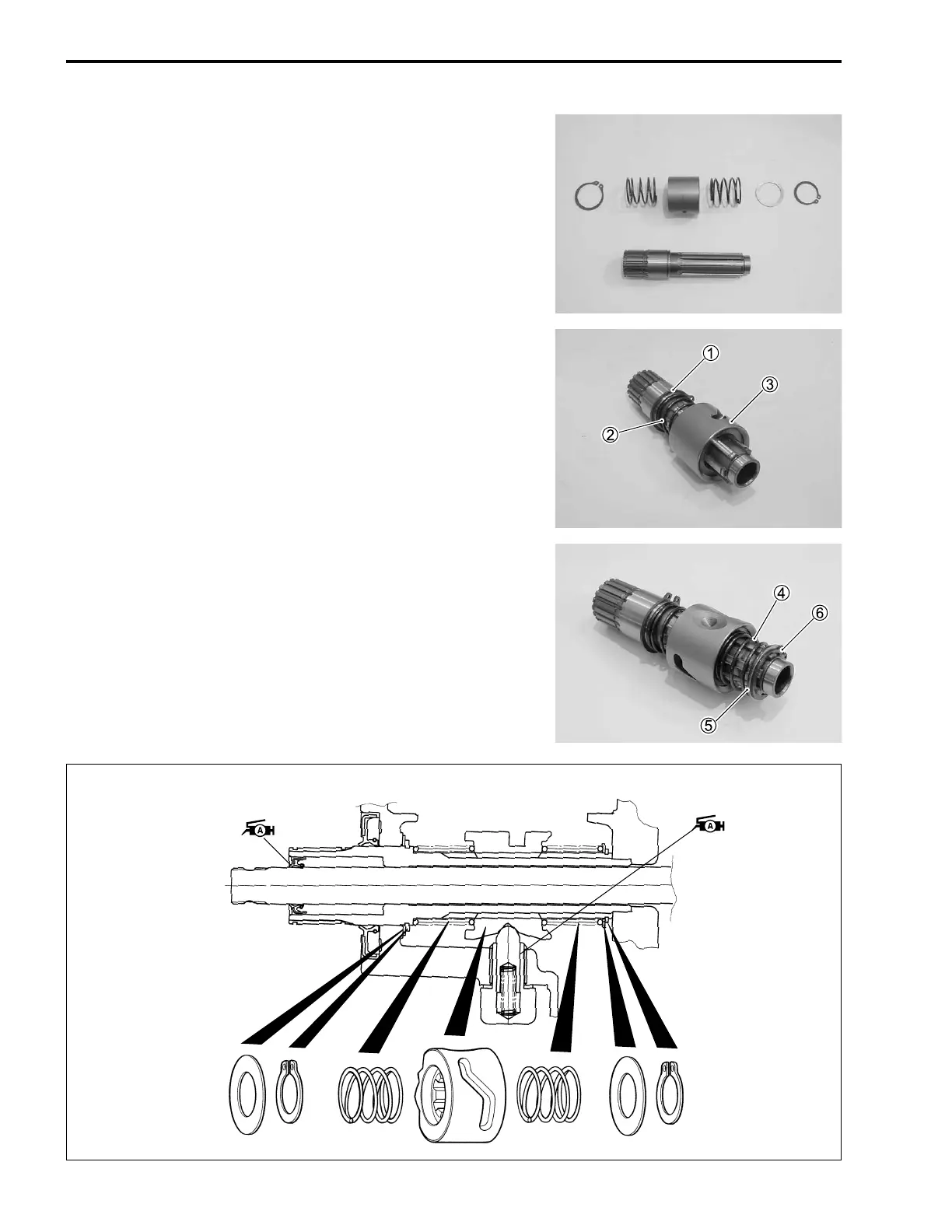

3-50 ENGINE
DISASSEMBLY
• Disassemble the transfer gearshift cam as shown.
REASSEMBLY
• Install the snap ring
1, spring
2 and gearshift cam
3.
NOTE:
The convex side of the gearshift cam
3 face lower side.
• Install the spring
4, washer
5 and snap ring
6.
