4-2
INSTRUMENT CLUSTER
69TB-01E
Speedometer
The speedometer indicates vehicle speed.
Tachometer
The tachometer indicates engine speed in
revolutions per minute.
Fuel gauge
69T040020
When the ignition mode is ON, this gauge
gives a rough indication of the amount of
fuel in the fuel tank. “F” stands for full and
“E” stands for empty.
If the indicator approaches a low level
(near “E”) on fuel gauge, refill the tank as
soon as possible.
NOTE:
The indicator moves a little depending on
road conditions (for example, slope or
curve) and driving conditions because of
fuel movement in the tank.

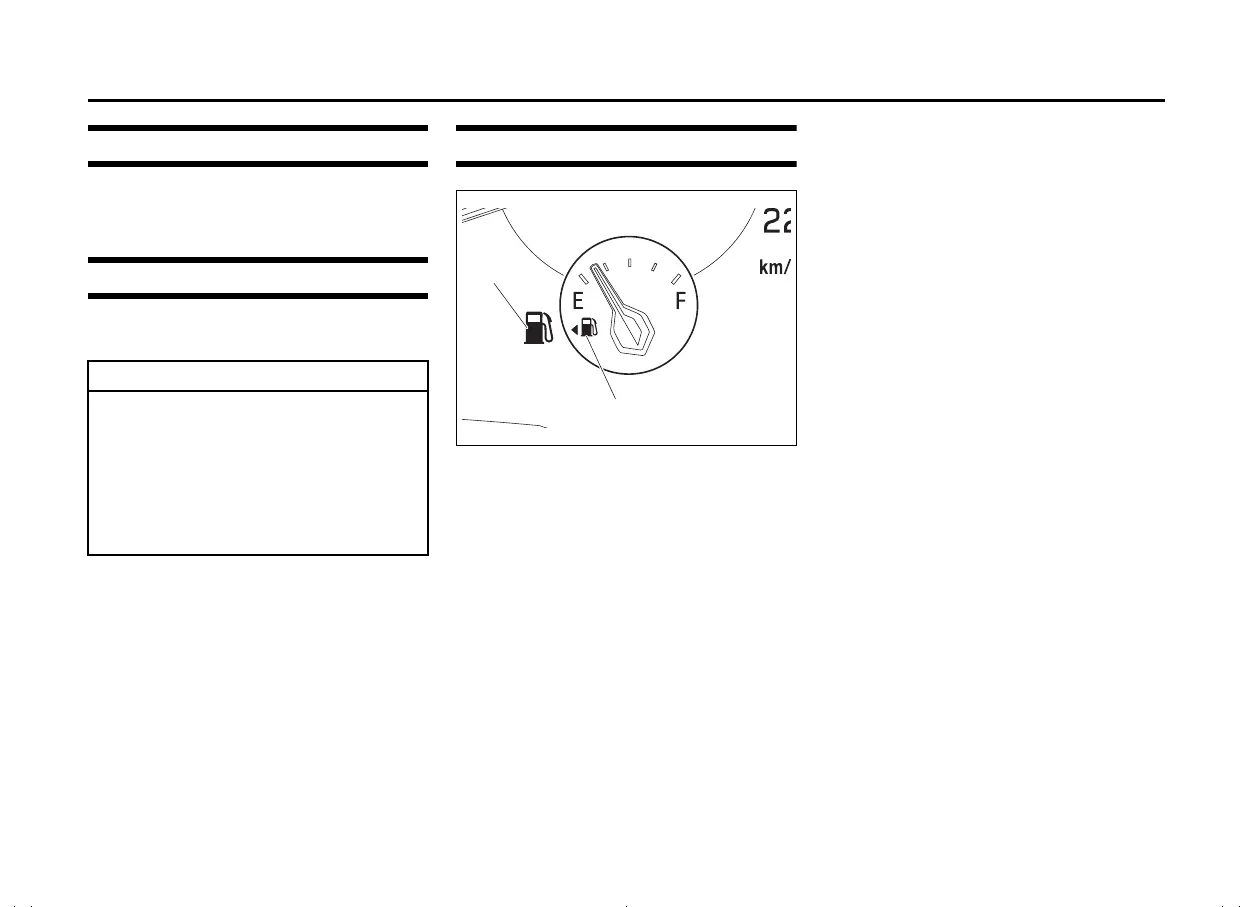

If the low fuel warning light (1) comes on,
refill the fuel tank as soon as possible.
Refer to “Low fuel warning light” (P.4-43)
for details.
The mark (2) indicates that the fuel filler
door is located on the left side of the vehi-
cle.
NOTICE
Never drive the vehicle with the
engine revving in the red zone or
severe engine damage can result.
Keep the engine speed below the red
zone even when downshifting to a
lower gear position.
Refer to “Downshifting maximum
allowable speeds” (P.5-39).
