7-25
OTHER CONTROLS AND EQUIPMENT
69TB-01E
Automatic heating and air conditioning system
(climate control)
Description of controls

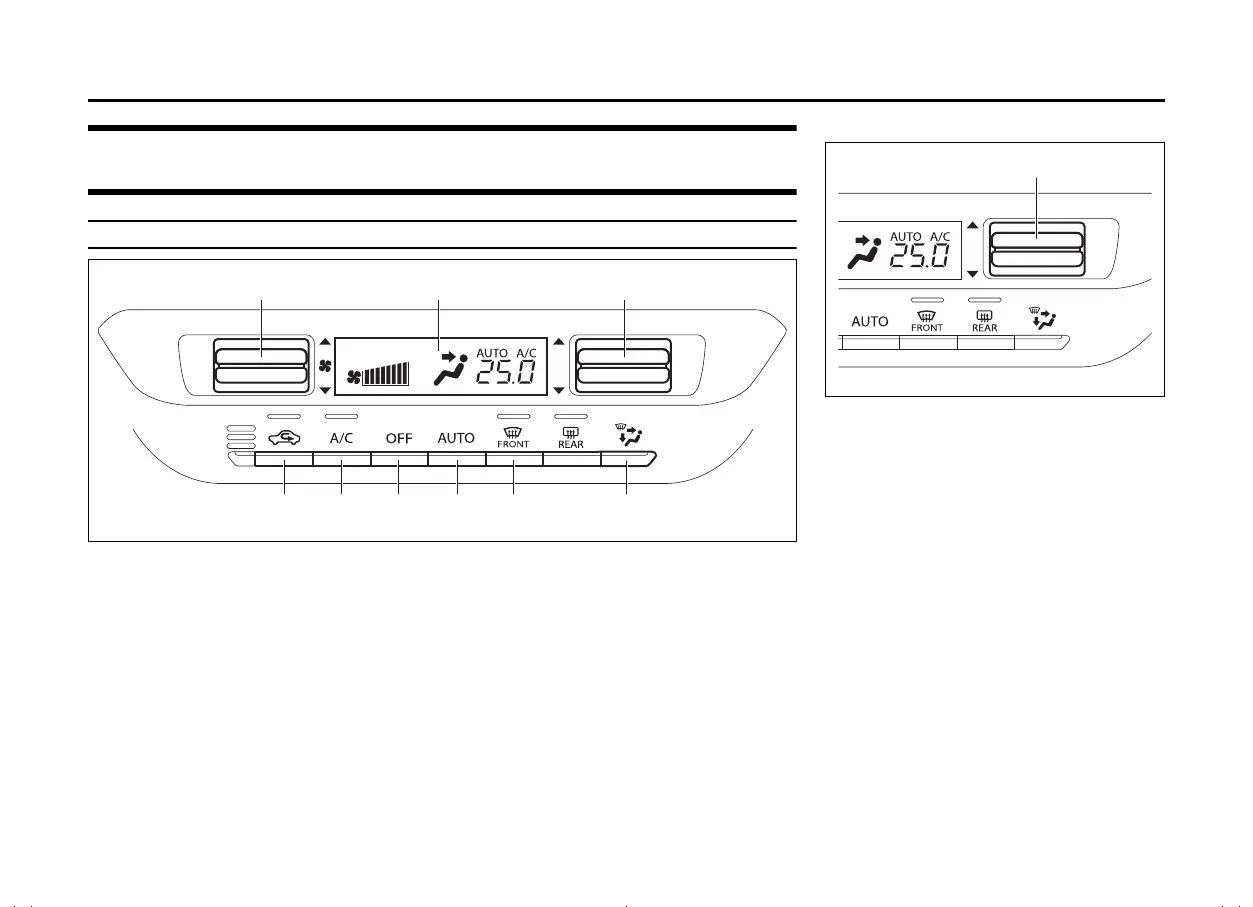

52RM50340
(1) Temperature selector
(2) Blower speed selector
(3) Air intake selector
(4) Air flow selector
(5) Defrost switch
(6) Air conditioning switch
(7) “OFF” switch
(8) “AUTO” switch
(9) Display
(1)(2) (9)
(4)
(5)(8)(6) (7)(3)
Temperature selector (1)
69T070370
Push upper part or lower part of the tem-
perature selector (1) to adjust the tempera-
ture.
NOTE:
• If you push upper part or lower part of
the temperature selector (1) until “HI” or
“LO” appears on the display, the climate
control system will operate at maximum
heating or cooling. The temperature of
the air from the outlets may change sud-
denly while “LO” or “HI” is displayed, but
this is normal.
• When you change the unit of tempera-
ture in the information display, the unit of
temperature in the air conditioning sys-
tem will be changed. Refer to “Setting
mode of information display” (P.12-8) for
details.
