9-40
INSPECTION AND MAINTENANCE
69TB-01E

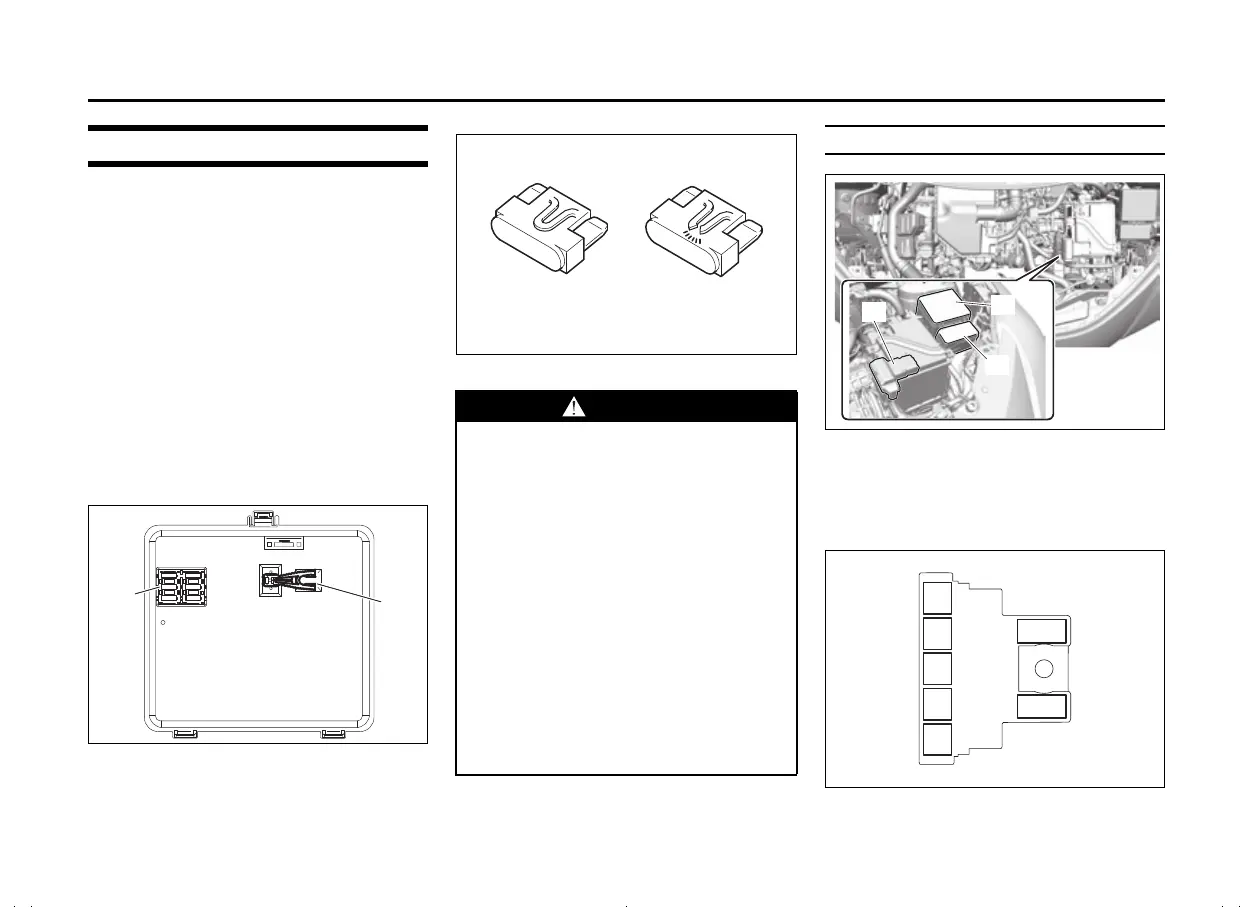

Fuses
Your vehicle has three types of fuses, as
described below:
Main fuse
The main fuse takes current directly from
the lead-acid battery.
Primary fuses
These fuses are between the main fuse
and individual fuses, and are for electrical
load groups.
Individual fuses
These fuses are for individual electrical cir-
cuits.
To remove a fuse, use the fuse puller pro-
vided in the fuse box cover.
55T090640
(1) Fuse puller
(2) Spare fuse
69T090460
Fuses in engine compartment
69T090130
(1) Main fuse box
(2) Relay box
(3) Sub relay box
Main fuse box
69T090140
(1)
(2)
WARNING
• If the main fuse blows, have your
vehicle inspected by an authorized
SUZUKI dealer or a qualified work-
shop.
• Always replace a blown fuse with a
fuse of the correct amperage and
the same size. Never use a substi-
tute such as aluminum foil or wire
to replace a blown fuse. Otherwise,
wiring may burn out and it may
cause a fire.
• If you replace a fuse and the new
one blows in a short period of time,
you may have a major electrical
problem. Have your vehicle
inspected immediately by a
SUZUKI dealer or a qualified work-
shop.
(1)
(2)
(3)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
