INSPECTION AND MAINTENANCE
69TB-01E

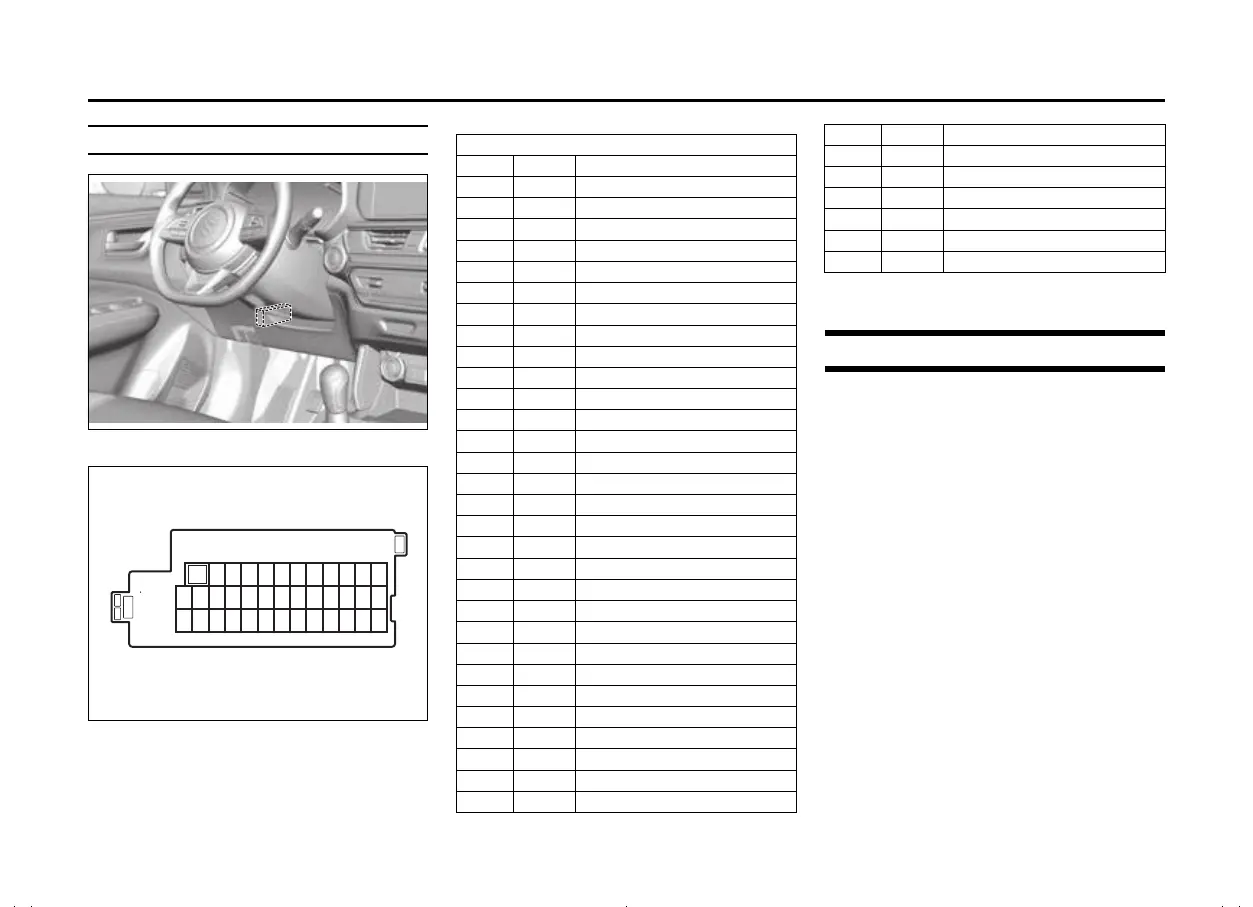

Fuses under dashboard
69T090170
81P70220
Headlight aiming
Since special procedures are required, ask
an authorized SUZUKI dealer or a qualified
workshop for this job.
USE THE
DESIGNATED
FUSES AND
RELAY ONLY.
1 23456789101112
15 1613 14 17 18 19 20 21 22 23 24 25
28 2926 27 30 31 32 33 34 35 36 37 38
PRIMARY FUSE
(1) 30 A Power window
(2)
10 A Meter
(3)
15 A Ignition coil
(4) 5 A Ignition-1 signal 2
(5) 20 A Shift lever
(6) 10 A CHG
(7) 10 A Steering lock 2
(8)
20 A Door lock
(9)
15 A Steering lock
(10) 10 A Hazard
(11) 5 A A-STOP controller
(12)
10 A Rear fog lamp
(13) 5 A ABS/ESP
®
control module
(14) 15 A Seat heater
(15)
5 A Ignition-1 signal 3
(16) 10 A Dome light-2
(17) 5 A Dome light
(18)
15 A Radio
(19) 5 A CONT
(20) 5 A Key 2
(21)
20 A Power window timer
(22) 5 A Key
(23) 15 A Horn
(24)
5 A Tail light (Left)
(25) 10 A Tail light
(26) 10 A Airbag
(27)
10 A Ignition-1 signal
(28) 10 A Back-up light
(29) 5 A ACC-3
(30)
20 A Rear defogger
(31) 10 A Heated mirror
(32) 15 A ACC-2
(33) 5 A ACC
(34)
10 A Rear wiper
(35)
5 A Ignition-2 signal
(36)
15 A Washer
(37)
25 A Front wiper
(38) 10 A Stop light
