INSPECTION AND MAINTENANCE
69TB-01E
Clutch
Clutch pedal
69T090450

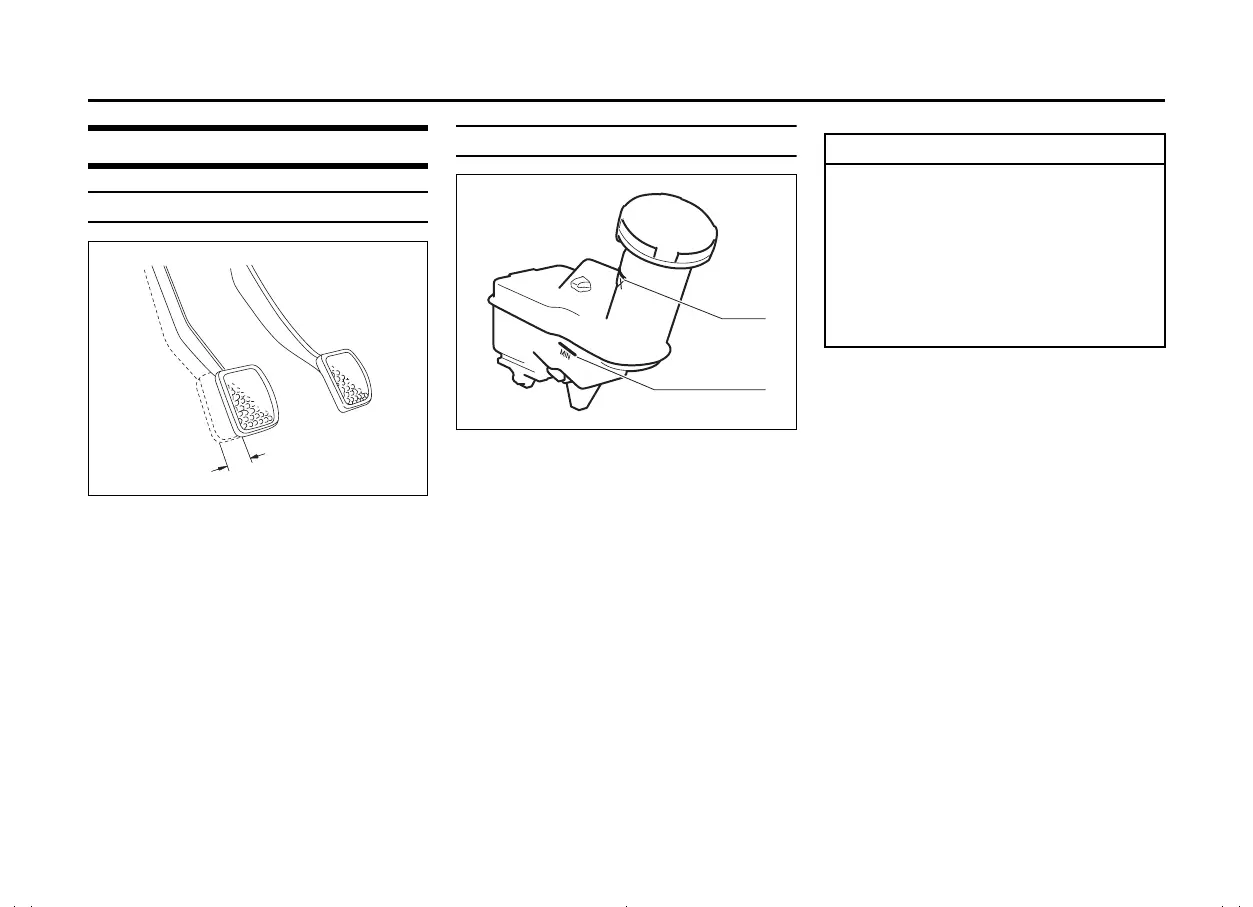

Clutch pedal play “a”:
MAX 10 mm (0.4 in.)
Measure the clutch pedal play by moving
the clutch pedal with your hand and mea-
suring the distance it moves until you feel
slight resistance. The play in the clutch
pedal should be less than the specified
values. If the play is more than the above,
or clutch dragging is felt with the pedal fully
depressed, have the clutch inspected by
an authorized SUZUKI dealer or a qualified
workshop.
Clutch fluid
52RM70020
Check the clutch pedal for smooth opera-
tion and clutch fluid level from time to time.
If clutch dragging is felt with the pedal fully
depressed, have the clutch inspected by
an authorized SUZUKI dealer or a qualified
workshop. If the clutch fluid level is near
“MIN” line, fill it up to “MAX” line with DOT3
or SAE J1703 brake fluid.
MIN
MAX
NOTICE
Clutch fluid is supplied from brake
fluid reservoir. If your clutch fluid
level is increased or near the “MIN”
line, there is a possibility of clutch or
brake fluid leakage or abnormal wear
of clutch.
Have your vehicle inspected immedi-
ately by an authorized SUZUKI dealer
or a qualified workshop.
