7-1
OTHER CONTROLS AND EQUIPMENT
69TB-01E

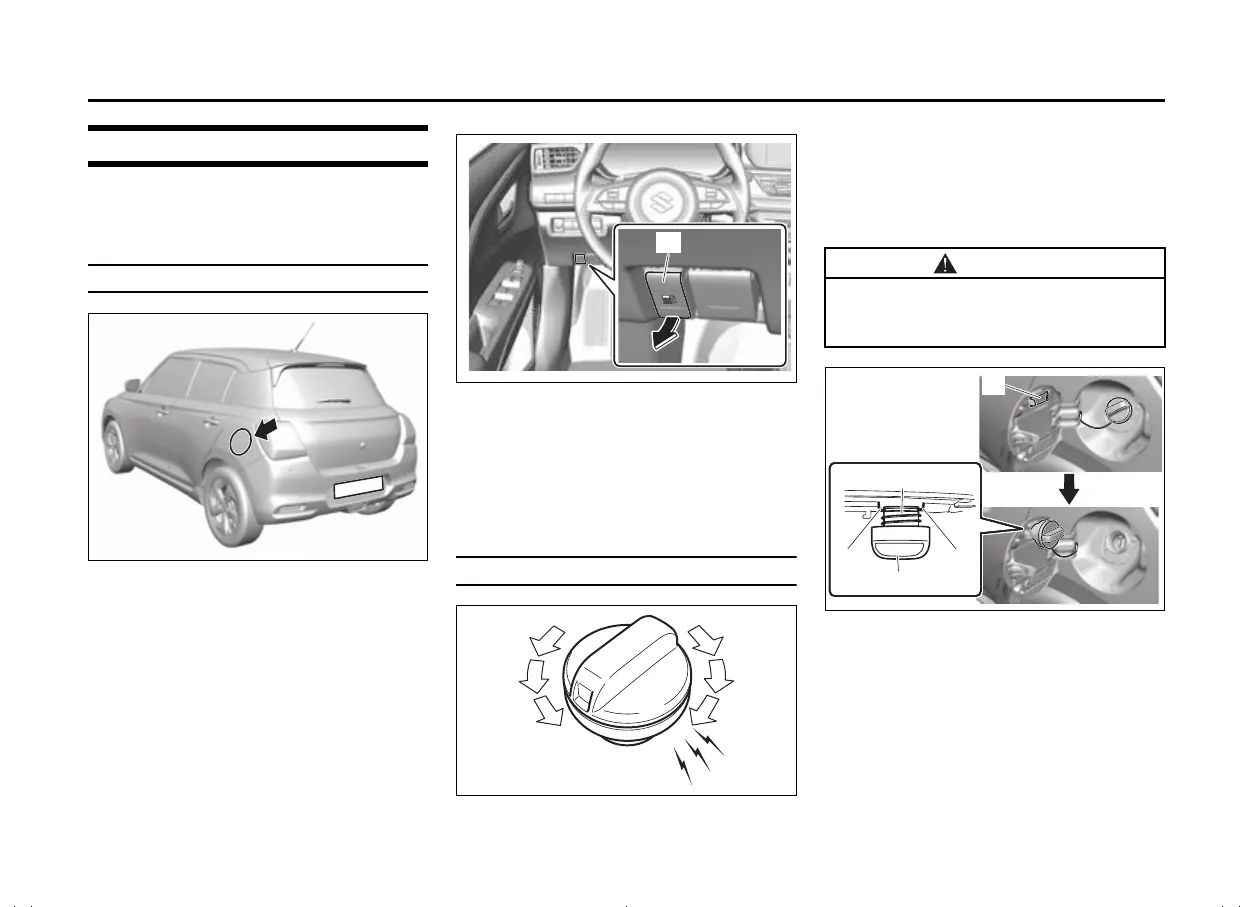

Fuel filler opening
Make sure to read “Refueling” in this sec-
tion.
Fuel filler door
69T070430
69T070010
A fuel filler door is located on the left rear
side of the vehicle. The fuel filler door can
be unlocked by pulling up the opener lever
(1) located under the driver’s side instru-
ment panel in the outboard position and
locked by simply closing the door.
Fuel filler cap
57L51093
To remove the fuel filler cap:
1) Stop the engine and close all the doors
and windows while refueling.
2) Open the fuel filler door.
3) Remove the cap by turning it counter-
clockwise.
69T070020
NOTE:
The cap holder (1) holds the fuel filler cap
(2) by hooking the groove (3) when refuel-
ing.
To reinstall the fuel filler cap:
1) Turn the cap clockwise until you hear
several clicks.
2) Close the fuel filler door.
(1)
CAUTION
Remove the fuel filler cap slowly. The
fuel may be under pressure and may
spray out, causing injury.
(1)
(1)
(1)
(2)
(3)
To Next Page
