General descriptions, dangers and warnings |
7

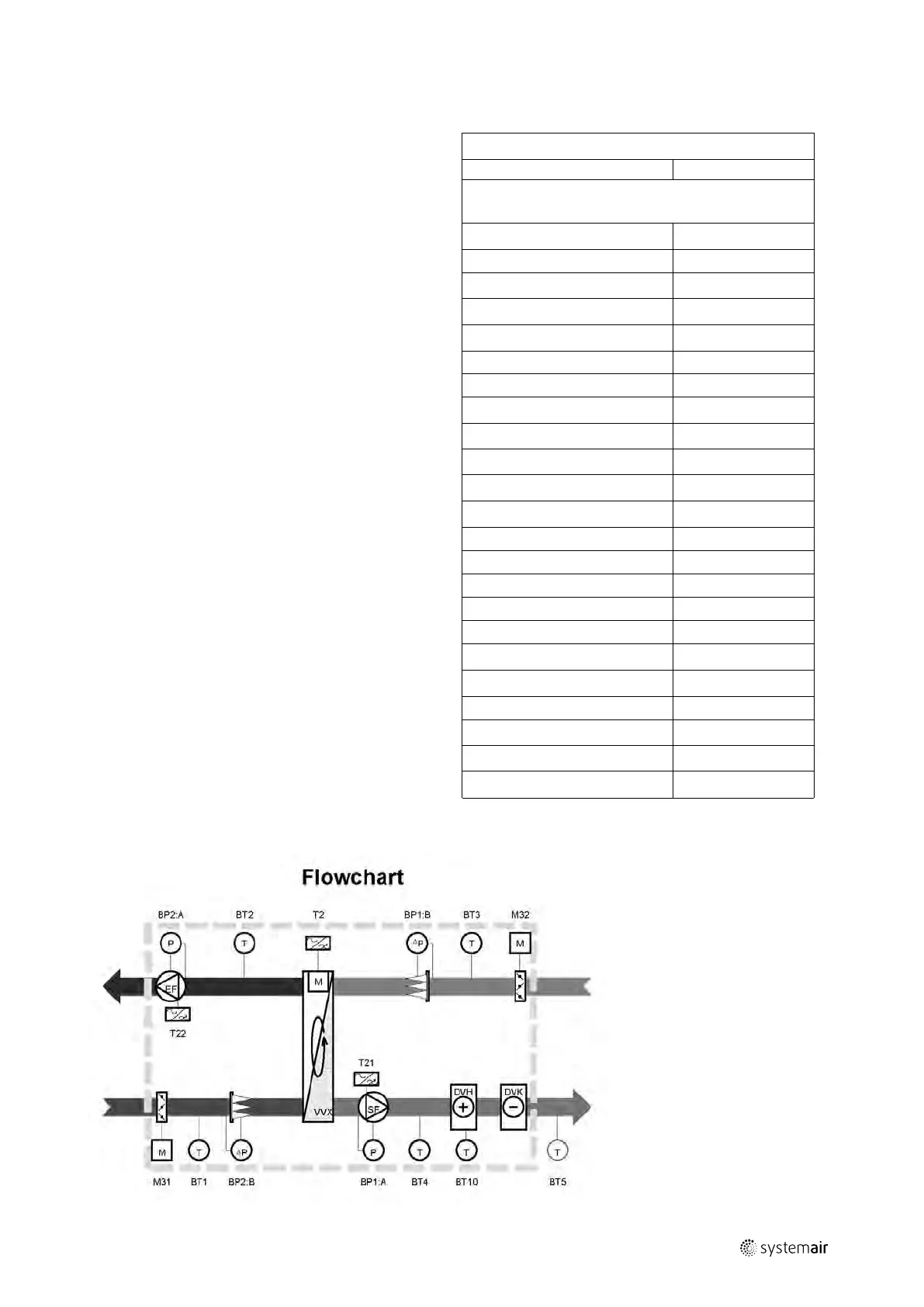

D.2.2 Label with data about the cabinet — example.
Systemair A/S
Systemair declares hereby that the cabinet is in
conformity with:
SBB Low voltage panels:
N60439-1
Electrical material on machines:
EN60204-1
EMC-directive environment: 89/336/EOF
Diagram version Geniox ver. X:XX
Systemair order number
72800-1
Unit size 10
Cabinet data:
System ground
TN-S
Current type AC
Frequence 50 HZ
Rated voltage
3*400 V+N+PE VAC
Control voltage
24 VDC
PSCC max
6 kA
PSCC min 650 A
Max fuse
25
Min fuse
10
Cable colors:
Protection circuit
Green/yellow
230 VAC phase Black
0 VAC neutral Blue
24 VDC Grey
0 VDC Grey
Analog/digital
Grey
An example of the label that is always placed on or with
the cabinet
D.2.3 Flowchart – example of the label placed on or with the cabinet
