SystemAir Geniox 12 User Manual

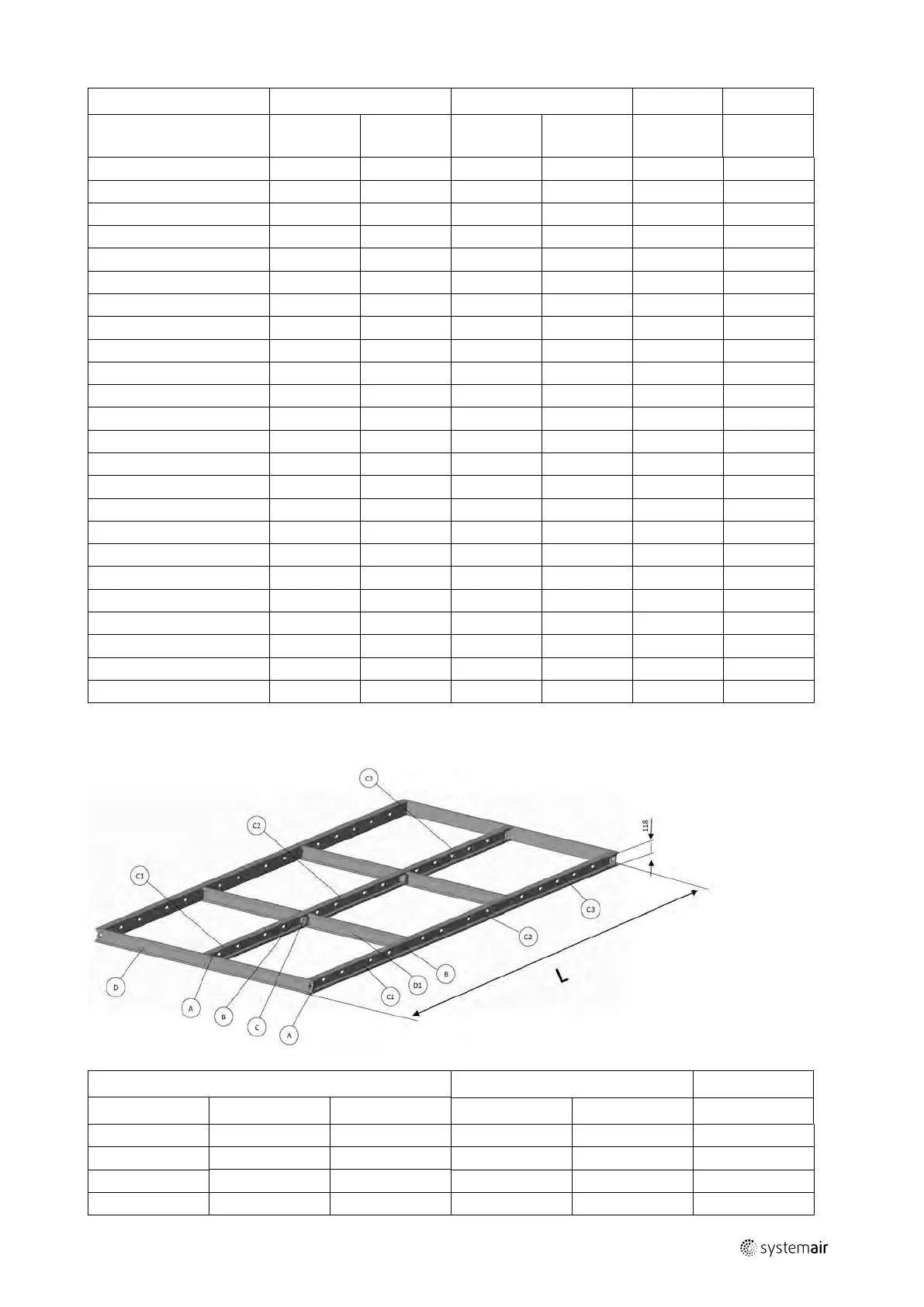

Assembly of base frame – height 118 mm for unit sizes 20 – 31 |
5-3
Length profile type C1 Length profile type C2
Corner A
Splice B
Adjustable length of
frame — L [mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Quantity Quantity
2582-2664 3 1200 3 1300 6 3
2682-2764 3 1300 3 1300 6 3
2782-2864 3 1300 3 1400 6 3
2882-2964 3 1400 3 1400 6 3
2982-3064 3 1400 3 1500 6 3
3082-3164 3 1500 3 1500 6 3
3182-3264 3 1500 3 1600 6 3
3282-3364 3 1600 3 1600 6 3
3382-3464 3 1600 3 1700 6 3
3482-3564 3 1700 3 1700 6 3
3582-3664 3 1700 3 1800 6 3
3682-3764 3 1800 3 1800 6 3
3782-3864 3 1800 3 1900 6 3
3882-3964 3 1900 3 1900 6 3
3982-4064 3 1900 3 2000 6 3
4082-4164 3 2000 3 2000 6 3
4182-4264 3 2000 3 2100 6 3
4282-4364 3 2100 3 2100 6 3
4382-4464 3 2100 3 2200 6 3
4482-4564 3 2200 3 2200 6 3
4582-4664 3 2200 3 2300 6 3
4682-4764 3 2300 3 2300 6 3
4782-4864 3 2300 3 2400 6 3
4882-4964 3 2400 3 2400 6 3
5.3 Base frame length 4982 – 6164 [mm] Unit size 20 – 31
End profile type D (width of base frame)
Middle profile type D1
Spacer F
Unit size Quantity
Length [mm]
Quantity
Length [mm]
Quantity
Geniox20 2 2070 4 941 2
Geniox22 2 2270 4 1041 2
Geniox24 2 2470 4 1141 2
Geniox27 2 2770 4 1291 2
output |
