Installation and assembly instructions for reduction of noise and vibration emissions |
31

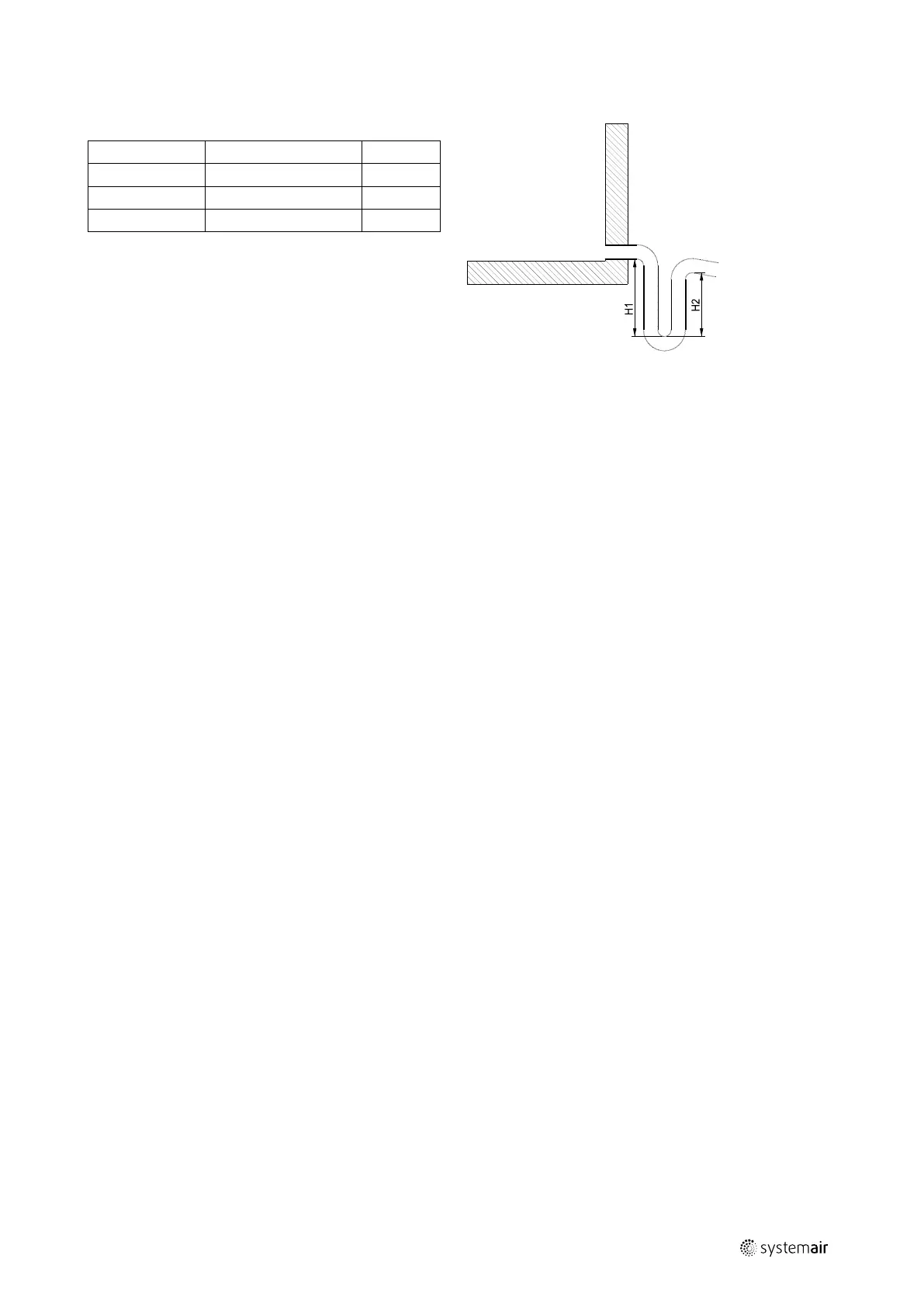

Remember to check that there is water in the water trap.
Table 2 Positive pressure P (Pa)
P H1 Minimum H2
500 Pa 90 mm 65 mm
750 Pa 120 mm 90 mm
1.000 Pa 150 mm 120 mm
J Installation and assembly instructions for reduction of noise and vibration
emissions
Due to the design and construction of the units the (A) weighed sound pressure level from fans and other components
do not exceed 70 dB (A) outside the units.
Data about sound in Annex 2.
Installation of the units on springs will reduce the transmission of noise and vibrations to the building. Systemair does
not deliver springs for this purpose.
Flexible connections between the units and the ducts are available as accessories.
K Start-up, adjustments, use, commissioning and unit in hipernation
K.1 Print-outs on paper
The documents listed below are always printed on paper and delivered together with the units according to the Machi-
nery Directive and the related national laws
This User Manual with:
• Declaration of incorporation – annex 1
• The unique technical data for this unit - Annex 2
• Installation instructions including instructions for the Danfoss frequency converter – Annex 4-12
• Printed form for Commissioning protocol - Annex 13
• Test report – Annex 14
• Short description about the main components in the control system – Annex 15
• Wiring diagrams - Annex 16
• Operator’s guide for the Systemair control panel - Annex 17
K.2 Electronic media
A DVD is delivered with every unit. The below-mentioned documents are available on every DVD and this means that
every DVD is provided with information about many components that are not delivered with every unit. The documents
on the DVD:
Common
• This User Manual
• Operator’s Guide
• Commissioning Protocol as a Word-file for modification by the installer
Components in the control system
• Danfoss frequency converter
• Corrigo controller manuals
• Information about Building Management Systems
