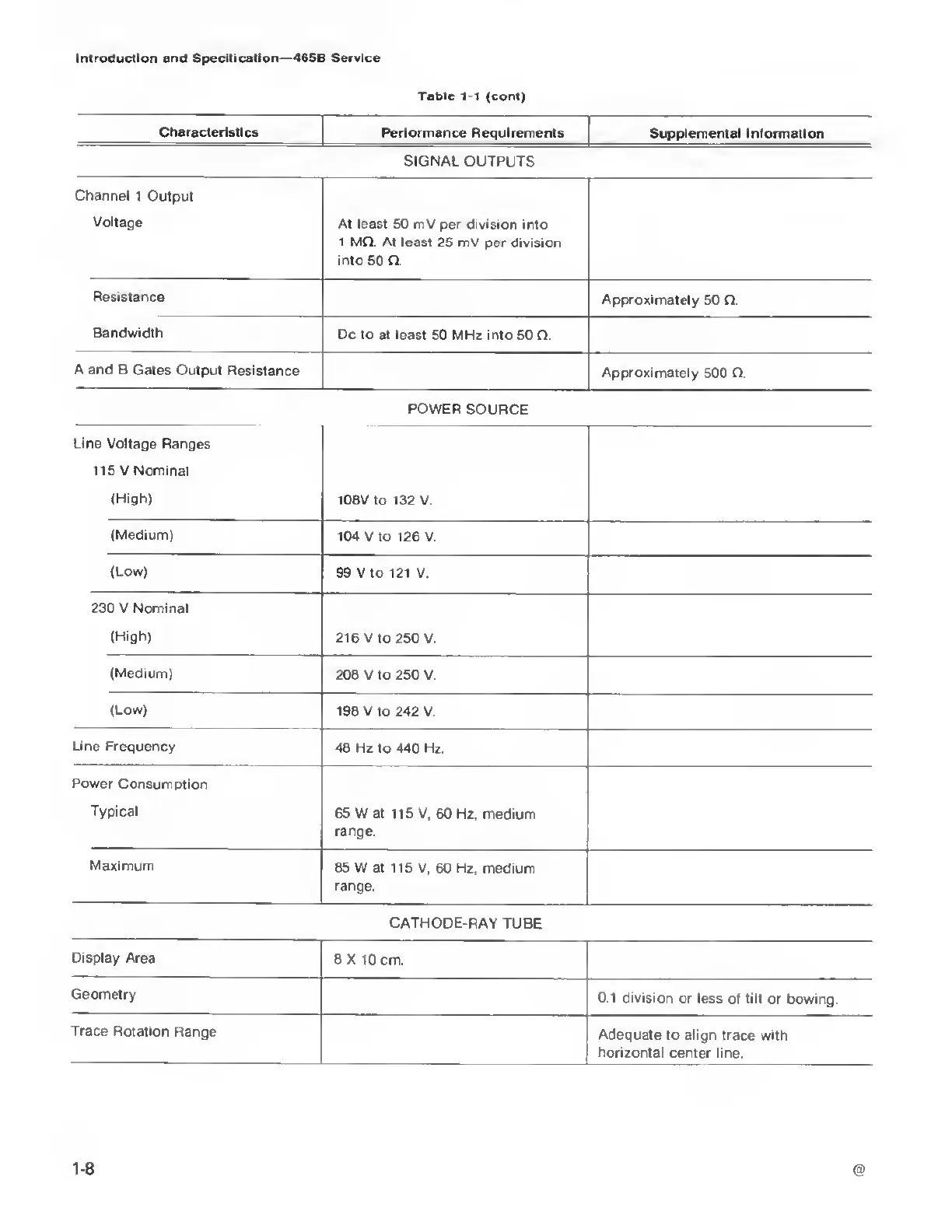

Introduction
and Specification—465B Service
Table 1-1
(cont)
Characteristics
Performance Requirements Supplemental
Information
SIGNAL OUTPUTS
Channel
1 Output
Voltage
At least
50 mV per division into
1 MO. At least
25 mV per division
into
50 0.
Resistance
Approximately
50
O.
Bandwidth
Dc to
at
least
50 MHz into
50 O
A and
B Gates Output
Resistance
Approximately
500 O.
POWER
SOURCE
Line Voltage
Ranges
115
V Nominal
(High)
108V to 132 V
(Medium)
l
104 V
to 126 V.
(Low)
99 V to 121
V
230 V Nominal
(High)
216 V to 250 V.
(Medium)
208 V to
250 V.
(Low)
198 V
to 242
V.
Line Frequency
48 Hz
to
440 Hz.
Power
Consumption
Typical
65 W
at 115 V, 60 Hz, medium
range.
Maximum
85 W at 115
V, 60 Hz, medium
range.
CATHODE-RAY TUBE
Display
Area
8 X 10 cm
Geometry
0
1 division
or less
of tilt or bowing.
Trace
Rotation
Range
Adequate
to
align
trace with
horizontal center
line.
