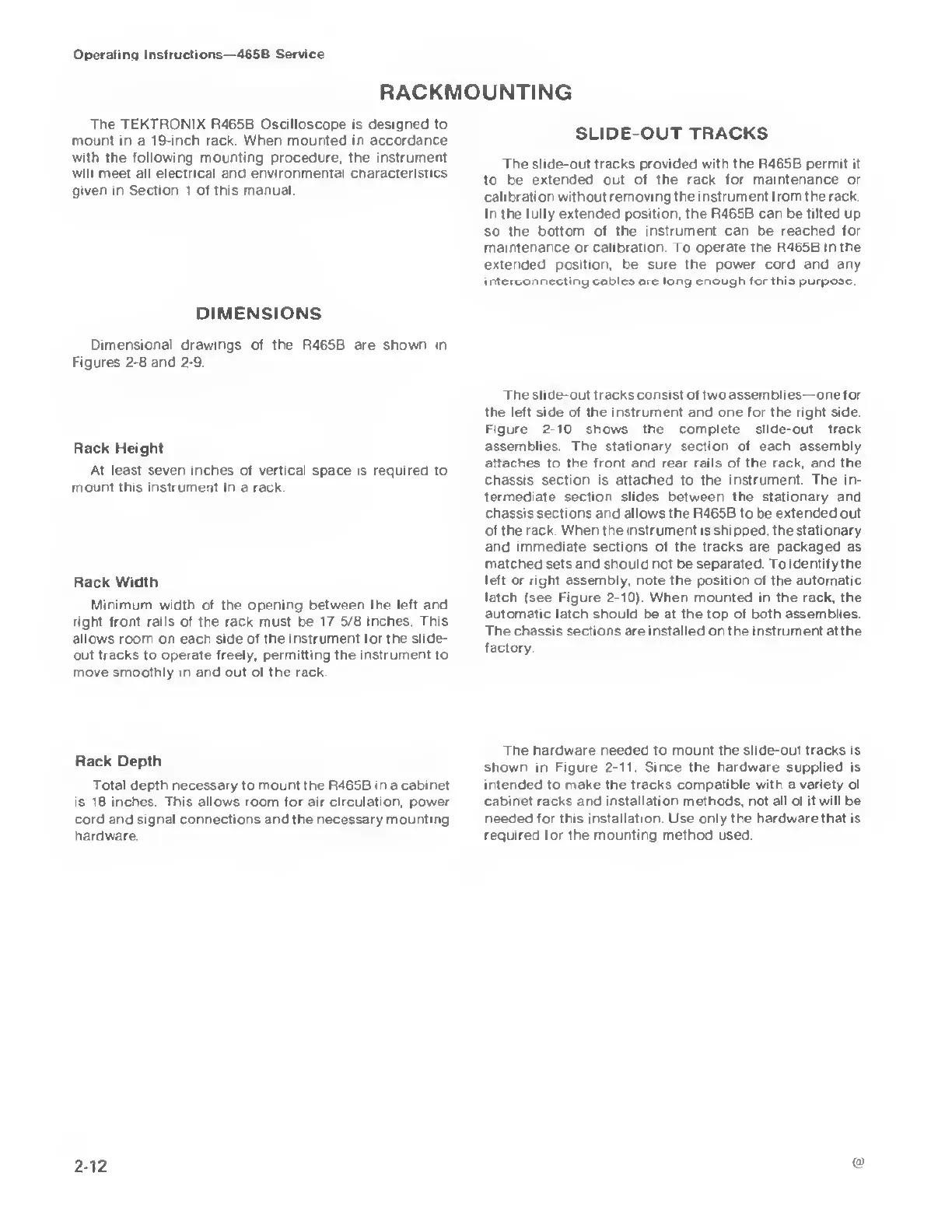

Operating Instructions—465B Service
RACKMOUNTING
The
TEKTRONIX R465B Oscilloscope
is
designed to
mount
in
a
19-inch rack When mounted in accordance
with the following mounting procedure, the instrument
will
meet
ail electrical and environmental cnaracterlstics
given in Section 1
of
this manual
DIMENSIONS
Dimensional drawings of the R465B are shown in
Figures
2-8
and
2-9
Rack Height
At least seven inches of vertical
space is
required
to
mount this instrument in a rack.
Rack Width
Minimum width of the opening between the left and
right front rails of the rack must be
17
5/8
inches This
allows room on each side of the
instrument for the slide-
out tracks to operate freely,
permitting the instrument
to
move smoothly
in
and out
of
the rack
Rack Depth
Total depth necessary
to
mount the R465B in
a
cabinet
is
18 inches This allows room for air circulation, power
cord and signal connections and the necessary mounting
hardware.
SLIDE OUT TRACKS
The
slide-out tracks
provided
with
the R465B permit it
to
be
extended out of the
rack for maintenance or
calibration
without removing the i nstrument from the rack.
In the fully extended position,
the R465B can
be
tilted
up
so the bottom of the instrument can be
reached for
maintenance or calibration To operate the
R465B in the
extended position, be
sure the power cord and any
interconnecting
cables are long enough for this
purpose
The slide-out tracks consist of two assemblies—one for
the left side of the instrument and one for the right side
Figure
2-10
shows the complete slide-out track
assemblies. The stationary section of each assembly
attaches to the front and rear rails of the rack, and the
chassis section is attached to the instrument
The
in-
termediate section slides between the stationary and
chassis sections
and
allows the R465B to be extended out
of
the
rack.
When
the
instrument is shipped, the stationary
and immediate sections
of
the
tracks are packaged as
matched
sets
and
should
not
be
separated.
To
identify the
left
or
right
assembly, note
the position
of the
automatic
latch
(see
Figure
2-10)
When mounted in the rack, the
automatic
latch should
be at
the
top of both
assemblies.
The chassis sections are installed on the instrument at the
factory.
The
hardware needed
to mount
the slide-out tracks is
shown in Figure
2-11
Since the
hardware supplied
is
intended
to
make the tracks compatible with a variety of
cabinet racks and installation methods, not all of it will be
needed
for this installation Use only the hardware that is
required for the mounting method used.
