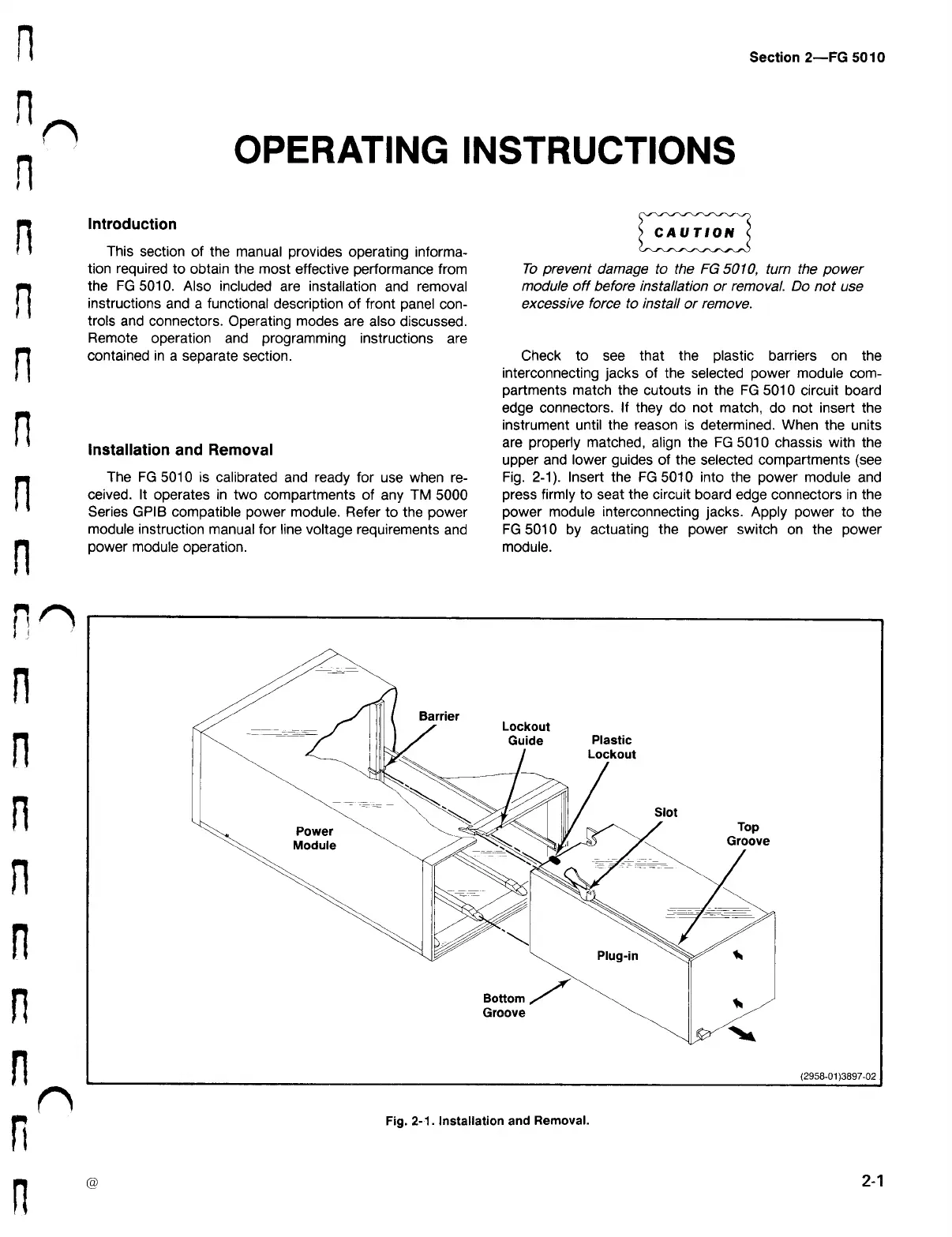

OPERATING INSTRUCTIONS
Introduction
This
section of the
manual
provides
operating
informa
tion required to obtain the most effective performance from
the FG 5010. Also included are installation and removal
instructions and a
functional
description of front
panel
con
trols and connectors . Operating modes are also discussed .
Remote operation and programming instructions are
contained
in a
separate section .
Installation and Removal
The FG
5010 is
calibrated and
ready for use
when re
ceived . It operates in two compartments of any TM 5000
Series
GPIB compatible
power
module .
Refer
to
the
power
module instruction manual for line voltage requirements and
power
module operation .
Power
Module
Barrier
To prevent damage to the FG 5010 , turn the power
module off before installation or removal . Do not use
excessive
force to
install or
remove
.
Lockout
Guide
Check to
see
that the plastic barriers on the
interconnecting jacks of the selected power module com
partments match
the
cutouts in the FG
5010 circuit
board
edge connectors . If they do not match , do not insert the
instrument until the reason is determined . When the units
are properly matched , align the FG 5010 chassis with the
upper and lower guides of the selected compartments ( see
Fig . 2-1 ) . Insert the FG 5010 into the power module and
press
firmly to seat
the circuit
board edge
connectors in the
power module interconnecting jacks . Apply power to the
FG 5010 by actuating the power switch on the power
module .
Bottom
Groove
Plastic
Lockout
CAUTION
Fig
. 2-1 .
Installation and
Removal .
Plug - in
Section 2 - FG 5010
Slot
Top
Groove
( 2958-01 ) 3897-02
2-1
