Tektronix FG 5010 User Manual

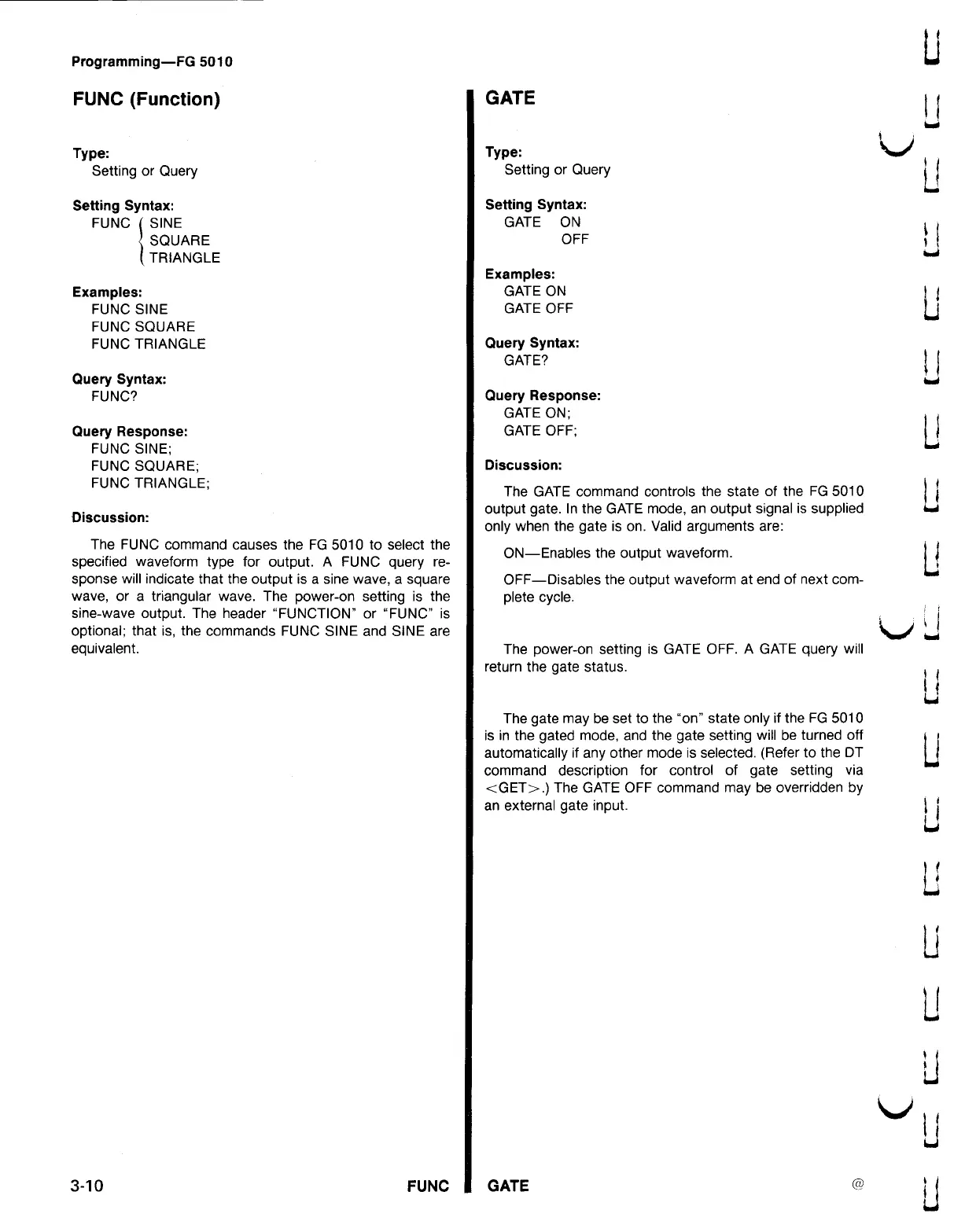

Programming -
FG 5010
FUNC (
Function
)
Type :
Setting or
Query
Setting Syntax :
FUNC SINE
Examples :
SQUARE
TRIANGLE
FUNC
SINE
FUNC SQUARE
FUNC TRIANGLE
Query Syntax :
FUNC ?
Query
Response
:
FUNC
SINE ;
FUNC
SQUARE
;
FUNC
TRIANGLE
;
Discussion
:
The FUNC command causes the FG 5010 to select the
specified waveform type for output . A FUNC query re
sponse will
indicate
that the
output is a sine
wave , a
square
wave , or a triangular wave . The power - on setting is the
sine - wave output . The header “ FUNCTION ” or " FUNC " is
optional ; that is , the commands FUNC SINE and SINE are
equivalent .
3-10
FUNC
GATE
Type :
Setting or Query
Setting Syntax :
GATE ON
OFF
Examples :
GATE ON
GATE OFF
Query Syntax :
GATE ?
Query
Response
:
GATE
ON ;
GATE OFF ;
Discussion :
The GATE command controls the state of the FG 5010
output gate . In the GATE mode , an output signal is supplied
only when the gate is on . Valid arguments are :
ON Enables the output waveform .
OFF Disables the output waveform at end of next com
plete cycle .
The
power - on
setting is GATE
OFF . A
GATE query
will
return the gate status .
The
gate may
be set to
the " on " state
only if the
FG 5010
is
in the gated mode
, and the gate
setting will be
turned off
automatically
if any other
mode is
selected . ( Refer
to the
DT
command description for control of gate setting via
< GET > . ) The GATE OFF command may be overridden by
an
external
gate
input .
GATE
>
U
L
U
U
U
U
11
U
U
U
U
C
