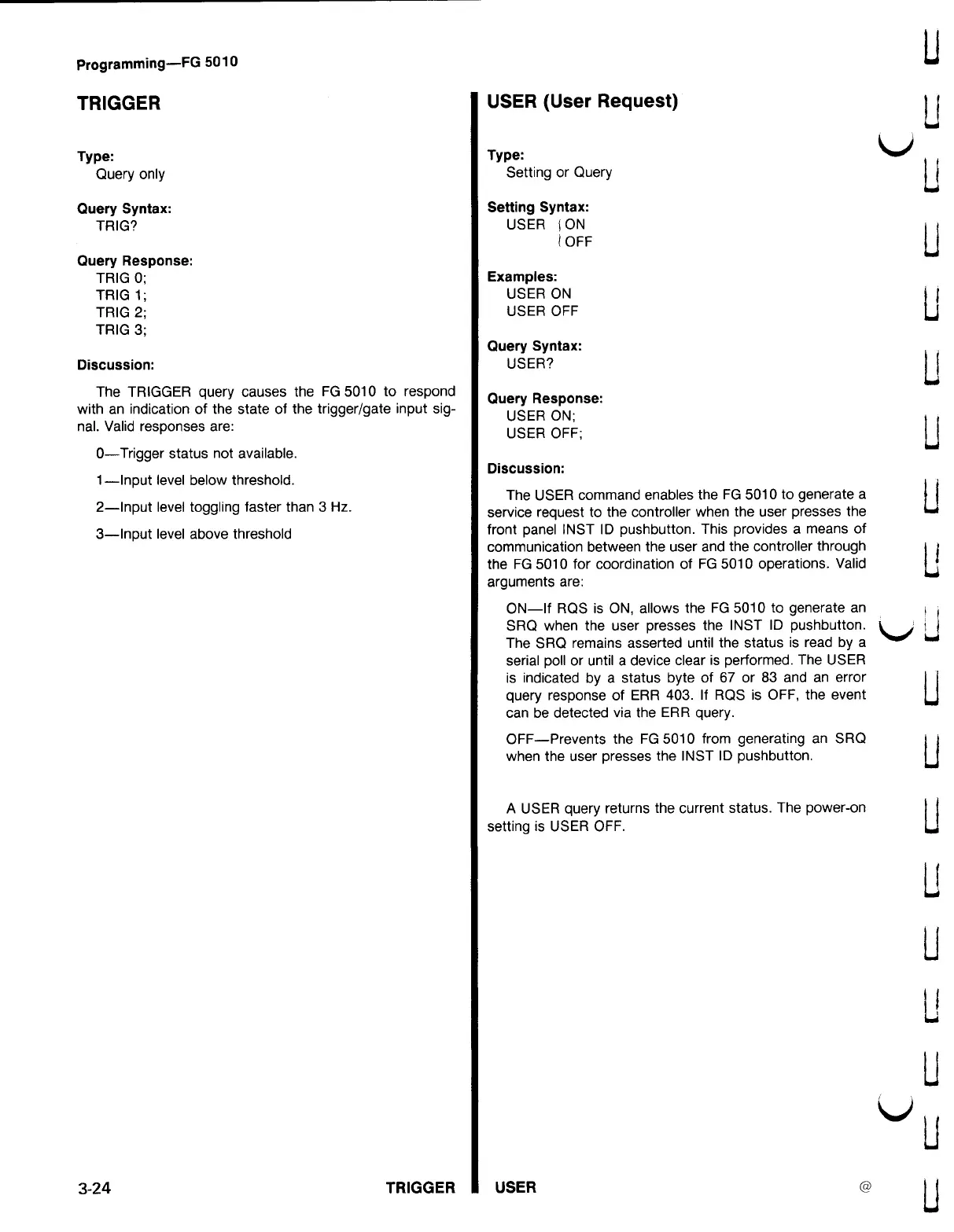

Programming
-
FG
5010
TRIGGER
Type :
Query only
Query Syntax :
TRIG ?
Query
Response
:
TRIG ;
TRIG 1 ;
TRIG
2 ;
TRIG 3
;
Discussion :
The TRIGGER query causes the FG 5010 to respond
with an indication of the state of the trigger / gate input sig
nal
.
Valid
responses
are :
- Trigger
status
not
available .
1
- Input level
below threshold .
2
-
Input
level
toggling
faster than
3 Hz
.
3
-
Input
level
above threshold
3-24
TRIGGER
USER (
User
Request )
Type :
Setting or Query
Setting Syntax :
USER ON
OFF
Examples :
USER ON
USER
OFF
Query Syntax :
USER ?
Query
Response
:
USER
ON
;
USER
OFF
;
Discussion :
The USER command enables the FG 5010 to generate a
service request to the controller when the user presses the
front panel INST ID pushbutton . This provides a means of
communication between the user and the controller through
the FG 5010 for coordination of FG 5010 operations . Valid
arguments
are :
ON - If RQS is ON , allows the FG 5010 to generate an
SRQ when the user presses the INST ID pushbutton .
The SRQ remains asserted until the status is read by a
serial poll or until a device clear is performed . The USER
is indicated by a status byte of 67 or 83 and an error
query
response
of
ERR
403. If
RQS
is
OFF ,
the event
can be
detected
via
the ERR
query
.
OFF - Prevents the FG 5010 from generating an SRQ
when the user presses the INST ID pushbutton .
A USER query returns the current status . The power - on
setting
is
USER
OFF
.
USER
( @ )
)
U
U
U
U
U
U
U
U
U
U
U
U
U
