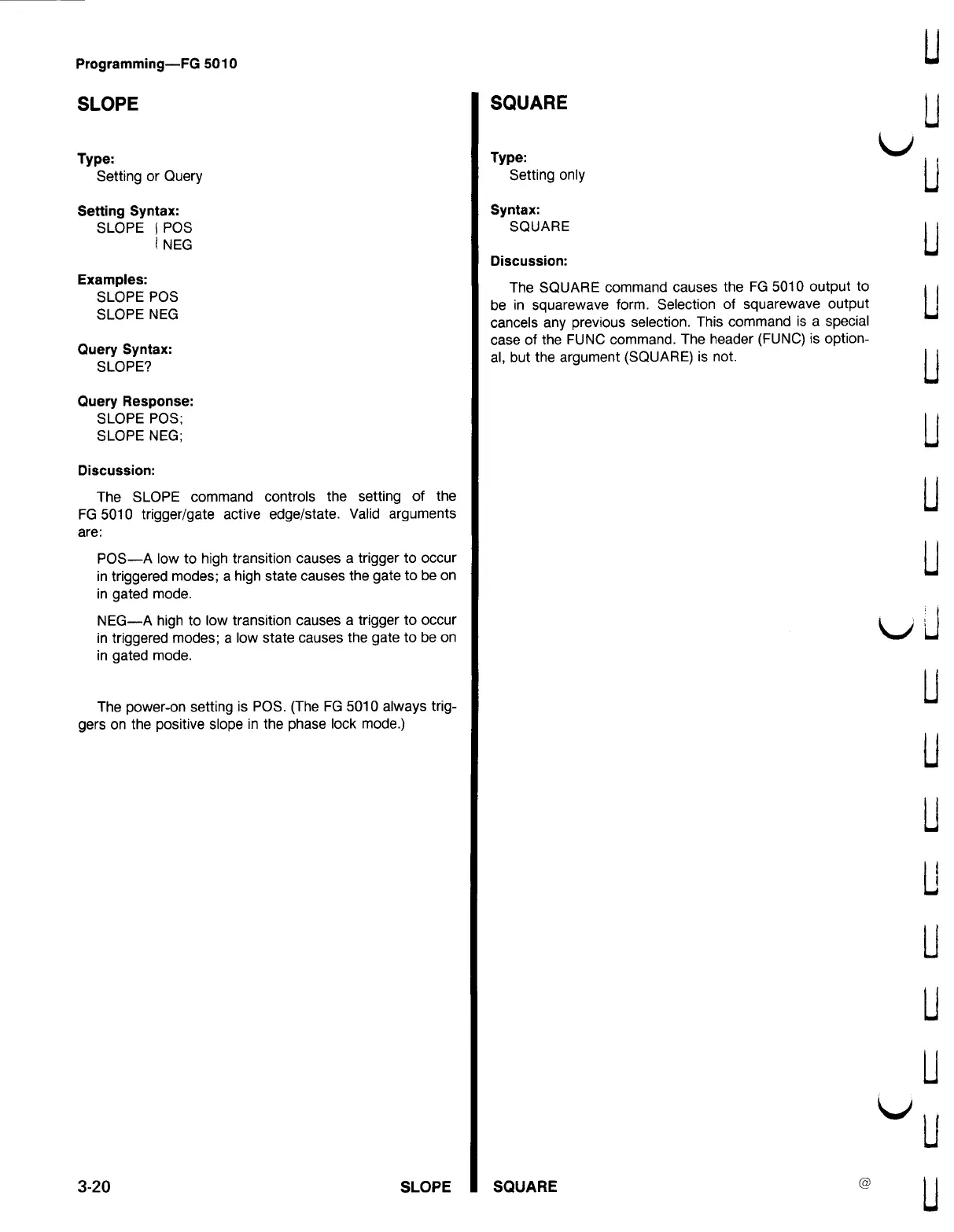

Programming -
FG 5010
SLOPE
Type :
Setting or Query
Setting Syntax :
SLOPE | POS
NEG
Examples :
SLOPE POS
SLOPE NEG
Query
Syntax
:
SLOPE
?
Query
Response :
SLOPE
POS
;
SLOPE
NEG
;
Discussion :
The SLOPE command controls the setting of the
FG 5010 trigger / gate active edge / state . Valid arguments
are :
POS - A low to high transition causes a trigger to occur
in
triggered modes
; a high state
causes the
gate to be on
in
gated
mode
.
NEG - A high to low transition causes a trigger to occur
in triggered modes ; a low state causes the gate to be on
in
gated mode
.
The
power - on
setting is POS
. ( The FG 5010
always trig
gers
on the
positive slope
in the phase
lock mode
. )
3-20
SLOPE
SQUARE
Type :
Setting only
Syntax :
SQUARE
Discussion :
The SQUARE command causes the FG 5010 output to
be
in
squarewave
form .
Selection of
squarewave
output
cancels any
previous
selection . This
command
is a
special
case of the FUNC command . The header ( FUNC ) is option
al , but the argument ( SQUARE ) is not .
