Tektronix FG 5010 User Manual

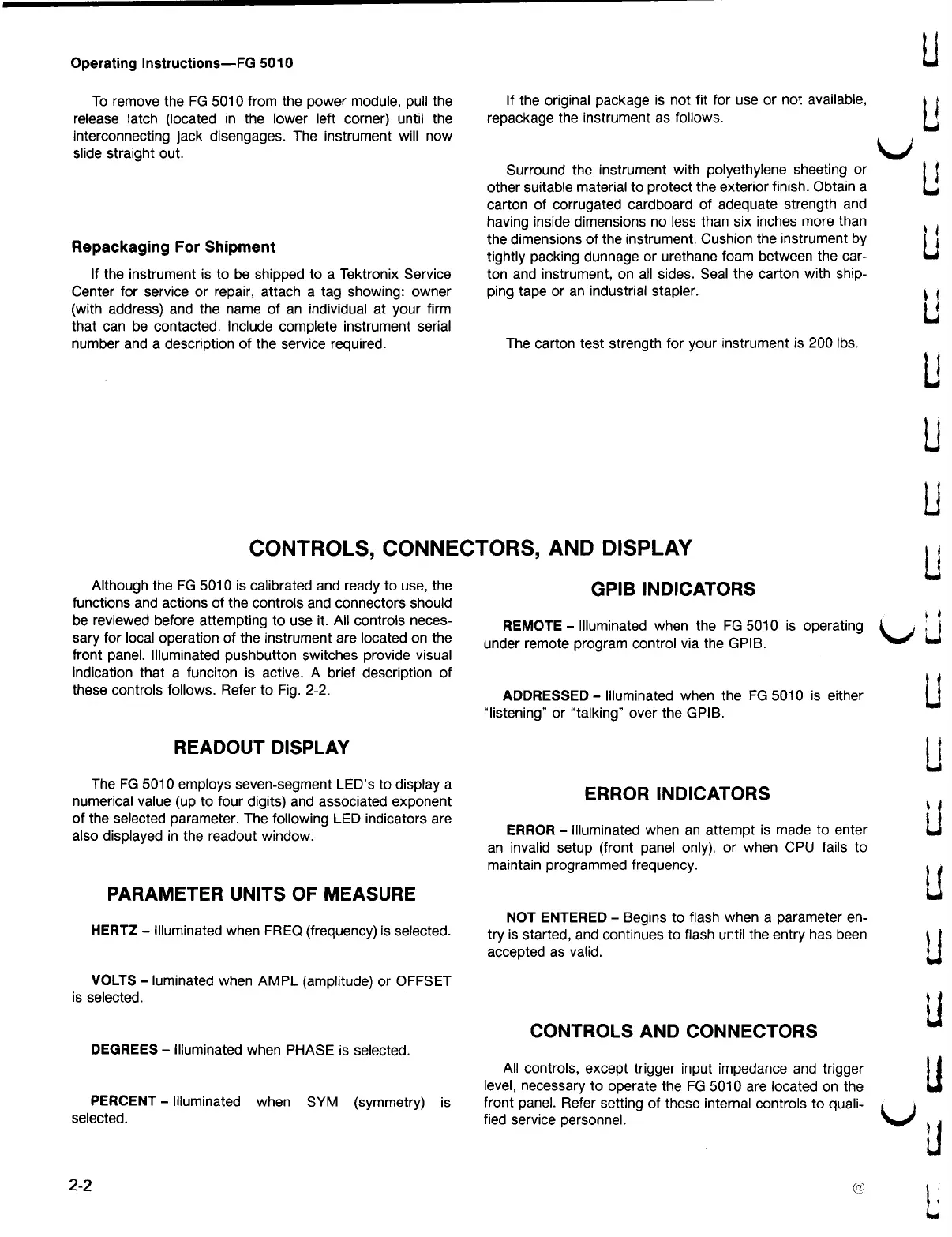

Operating
Instructions - FG
5010
To remove the FG 5010 from the power module , pull the
release latch ( located in the lower left corner ) until the
interconnecting jack disengages . The instrument will now
slide straight out
.
Repackaging For Shipment
If the instrument is to be shipped to a Tektronix Service
Center
for
service
or
repair , attach a
tag
showing : owner
( with address ) and the name of an individual at your firm
that can be contacted . Include complete instrument serial
number and a description of the service required .
Although the FG 5010 is calibrated and ready to use , the
functions and actions of the controls and connectors should
be reviewed before attempting to use it . All controls neces
sary for local operation of the instrument are located on the
front panel . Illuminated pushbutton switches provide visual
indication
that
a funciton is
active . A brief
description
of
these controls follows . Refer to Fig . 2-2 .
READOUT DISPLAY
The FG 5010 employs seven - segment LED's to display a
numerical value ( up to four digits ) and associated exponent
of the selected parameter . The following LED indicators are
also displayed in the readout window .
PARAMETER UNITS OF MEASURE
HERTZ -
Illuminated
when
FREQ (
frequency
) is
selected
.
CONTROLS
,
CONNECTORS
,
AND
DISPLAY
VOLTS
-
luminated when
AMPL
(
amplitude
)
or
OFFSET
is
selected .
DEGREES
-
Illuminated when
PHASE
is
selected
.
2-2
PERCENT - Illuminated
when
SYM
(
symmetry
)
is
selected .
If
the
original package
is not fit for
use or not
available ,
repackage the
instrument as
follows .
Surround the instrument with polyethylene sheeting or
other suitable material to protect the exterior finish . Obtain a
carton of corrugated cardboard of adequate strength and
having
inside
dimensions no
less than six
inches more
than
the dimensions of the instrument . Cushion the instrument by
tightly
packing
dunnage or
urethane foam
between
the car
ton and instrument , on all sides . Seal the carton with ship
ping
tape or an
industrial stapler .
The carton test strength for your instrument is 200 lbs .
GPIB INDICATORS
REMOTE
-
Illuminated
when
the FG 5010 is
operating
under remote program control via the GPIB .
ADDRESSED – Illuminated when the FG 5010 is either
"
listening " or " talking
" over the GPIB
.
ERROR INDICATORS
ERROR - Illuminated when an attempt is made to enter
an invalid setup ( front panel only ) , or when CPU fails to
maintain programmed frequency .
NOT ENTERED - Begins to flash when a parameter en
try is started , and continues to flash until the entry has been
accepted
as valid
.
CONTROLS AND CONNECTORS
All
controls ,
except
trigger
input
impedance and
trigger
level , necessary to operate the FG 5010 are located on the
front panel . Refer setting of these internal controls to quali
fied
service
personnel
.
(
8
)
)
C
C
C
U
U
U
U
U
U
U
U
U
C
