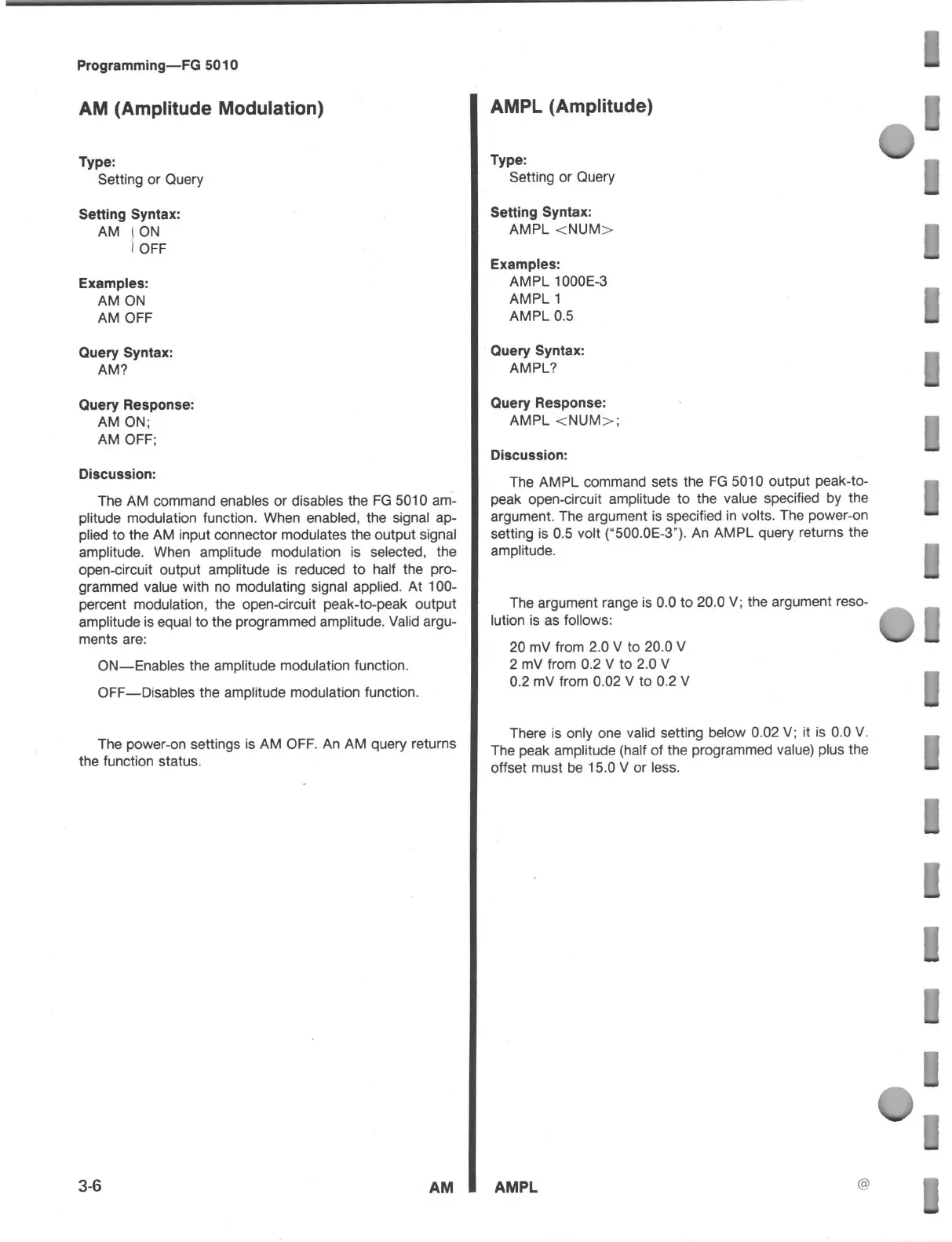

Programming
- FG
5010
AM ( Amplitude Modulation )
Type
:
Setting or
Query
Setting Syntax :
AM ON
OFF
Examples :
AM
ON
AM OFF
Query
Syntax
:
AM ?
Query Response :
AM
ON
;
AM OFF ;
Discussion :
The AM command enables or disables the FG 5010 am
plitude modulation function . When enabled , the signal ap
plied to the AM input connector modulates the output signal
amplitude . When
amplitude
modulation is selected
, the
open
-
circuit output
amplitude is
reduced to
half the pro
grammed value
with no
modulating signal applied
. At 100
percent modulation , the open - circuit peak - to - peak output
amplitude is equal to the programmed amplitude . Valid argu
ments
are
:
ON Enables the amplitude modulation function .
OFF - Disables the amplitude modulation function .
The power - on settings is AM OFF . An AM query returns
the function status .
3-6
AM
AMPL (
Amplitude
)
Type :
Setting or Query
Setting Syntax :
AMPL < NUM >
Examples :
AMPL 1000E - 3
AMPL 1
AMPL 0.5
Query Syntax :
AMPL ?
Query
Response :
AMPL <
NUM > ;
Discussion :
The AMPL command sets the FG 5010 output peak - to
peak
open -
circuit amplitude
to
the
value specified
by
the
argument . The
argument is
specified in
volts . The power
- on
setting
is 0.5 volt
( " 500.0E - 3 " )
. An AMPL query
returns the
amplitude
.
The argument range is 0.0 to 20.0 V ; the argument reso
lution is as follows :
20
mV from 2.0 V
to 20.0 V
2 mV from 0.2 V to 2.0 V
0.2 mV from 0.02 V to 0.2 V
There
is only
one valid
setting
below
0.02 V ; it
is 0.0 V.
The peak amplitude ( half of the programmed value ) plus the
offset must be 15.0 V or less .
AMPL
(
