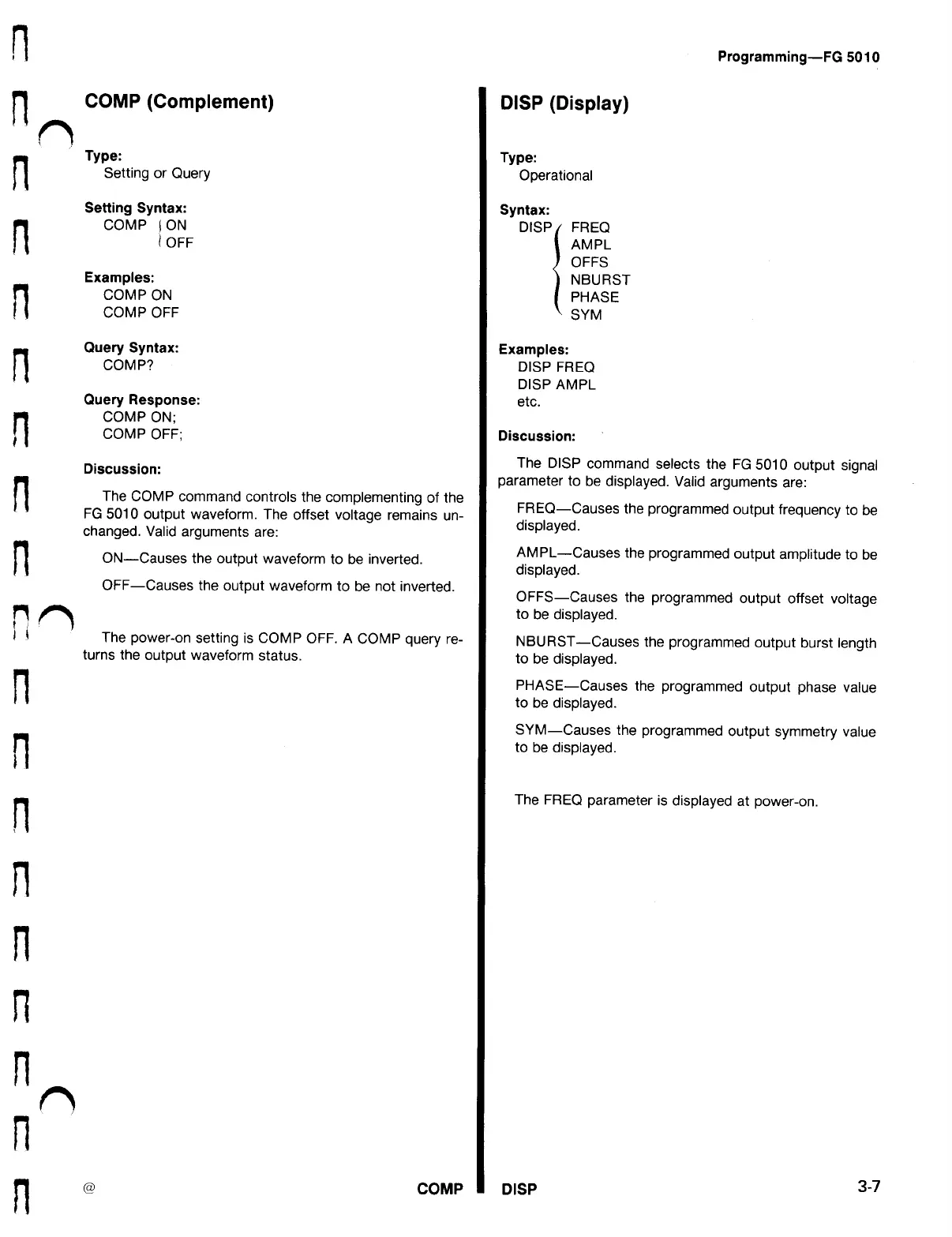

COMP (
Complement )
Type :
Setting
or
Query
Setting
Syntax :
COMPON
OFF
Examples :
COMP ON
COMP OFF
Query
Syntax :
COMP ?
Query Response :
COMP
ON
;
COMP
OFF ;
Discussion :
The
COMP
command
controls
the
complementing of
the
FG 5010
output
waveform
.
The
offset
voltage
remains
un
changed
. Valid
arguments
are :
ON Causes
the output
waveform
to be
inverted
.
OFF
Causes the output
waveform
to be
not
inverted
.
(
8
)
The
power - on
setting is
COMP OFF . A
COMP
query
re
turns the output waveform status .
COMP
DISP (
Display
)
Type
:
Operational
Syntax :
DISP
FREQ
AMPL
OFFS
NBURST
PHASE
SYM
Examples :
DISP
FREQ
DISP AMPL
etc.
Programming
- FG 5010
Discussion
:
The
DISP
command
selects
the
FG
5010
output
signal
parameter to
be
displayed .
Valid arguments
are :
FREQ -
Causes
the
programmed
output
frequency to
be
displayed .
AMPL -
Causes
the
programmed
output
amplitude to be
displayed .
OFFS
-
Causes the
programmed
output
offset
voltage
to
be
displayed .
NBURST
-
Causes
the
programmed
output
burst
length
to
be
displayed .
PHASE -
Causes
the
programmed
output
phase
value
to
be
displayed .
DISP
SYM
-
Causes
the
programmed
output
symmetry
value
to be
displayed .
The
FREQ
parameter is
displayed at
power - on .
3-7
