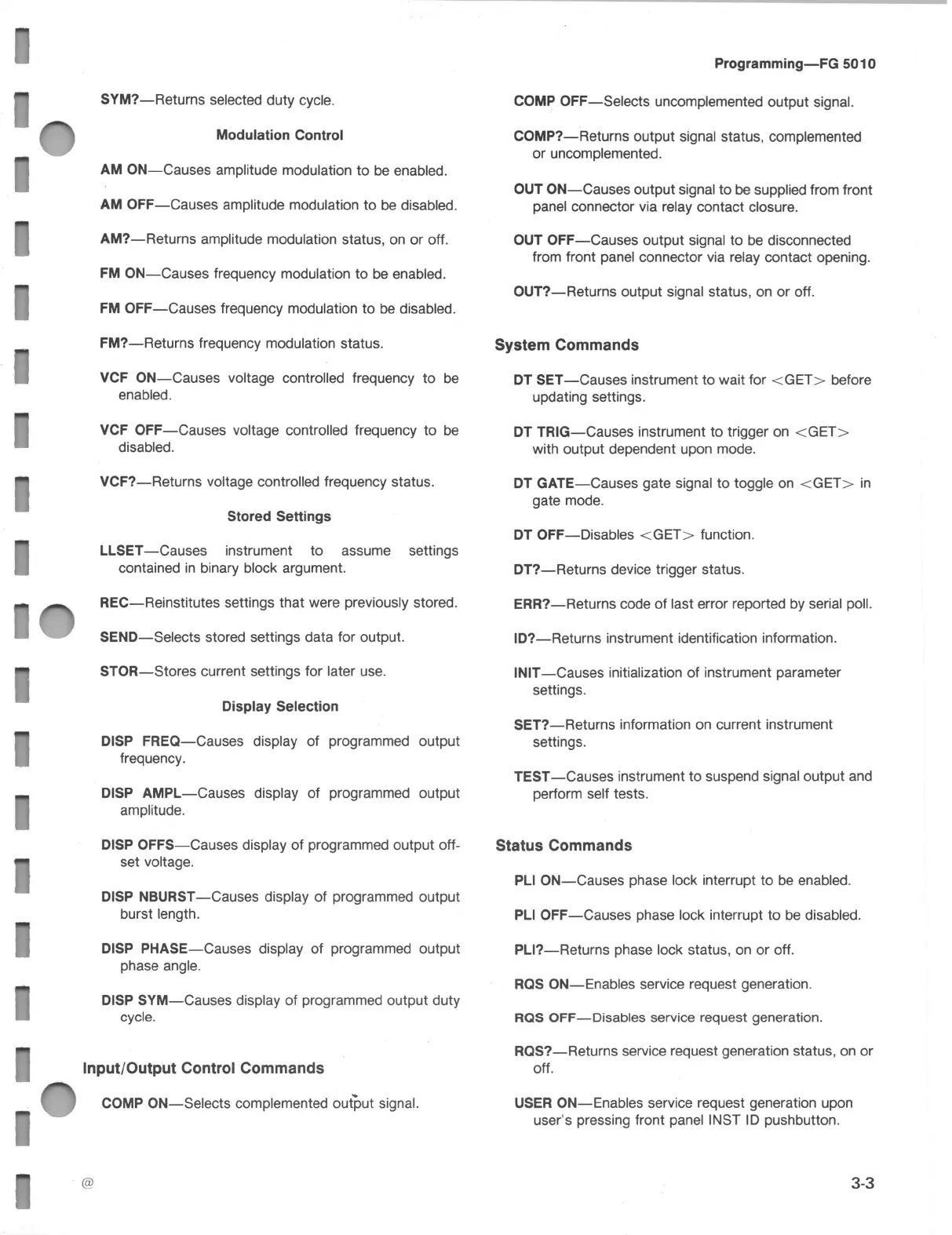

Tektronix FG 5010 User Manual

SYM
?
Returns
selected
duty
cycle .
Modulation
Control
AM ON -
Causes
amplitude modulation to be
enabled
.
AM OFF -
Causes
amplitude
modulation
to be
disabled .
AM ? Returns
amplitude
modulation
status ,
on or off .
FM ON - Causes frequency modulation to be enabled .
FM OFF - Causes frequency modulation to be disabled .
FM ? -Returns frequency modulation status .
VCF ON -
Causes
voltage
controlled
frequency
to
be
enabled .
VCF OFF -
Causes
voltage
controlled
frequency to be
disabled .
VCF ? -Returns voltage controlled frequency status .
Stored
Settings
LLSET Causes
instrument to
assume
settings
contained in
binary
block
argument .
REC - Reinstitutes settings that were previously stored .
SEND - Selects stored settings data for output .
STOR - Stores
current
settings
for later use .
Display
Selection
DISP
FREQ -
Causes
display of
programmed
output
frequency
.
DISP
AMPL
-
Causes
display
of
programmed
output
amplitude .
DISP OFFS -
Causes
display
of
programmed
output
off
set
voltage
.
DISP
NBURST -
Causes
display of
programmed
output
burst
length
.
DISP
PHASE
-
Causes
display of
programmed
output
phase angle .
DISP
SYM
-
Causes
display of
programmed
output duty
cycle .
Input /
Output
Control
Commands
COMP ON - Selects complemented output signal .
Programming
- FG 5010
COMP
OFF
-
Selects
uncomplemented
output
signal .
COMP
?
-Returns
output
signal
status
,
complemented
or
uncomplemented .
OUT ON
Causes
output
signal to
be
supplied from front
panel connector via relay contact closure .
OUT OFF - Causes output signal to be disconnected
from front panel connector via relay contact opening .
OUT ?
Returns output signal
status , on or off
.
System
Commands
DT SET - Causes instrument to wait for < GET > before
updating settings .
DT TRIG - Causes instrument to trigger on < GET >
with output dependent upon mode .
DT GATE - Causes gate signal to toggle on < GET > in
gate
mode
.
DT OFF - Disables < GET > function .
DT ?
Returns device trigger
status .
ERR ? -Returns code of last error reported by serial poll .
ID ? Returns instrument identification information .
INIT - Causes initialization of instrument parameter
settings
.
SET ? Returns information on current instrument
settings .
TEST - Causes instrument to suspend signal output and
perform
self tests
.
Status Commands
PLI ON - Causes phase lock interrupt to be enabled .
PLI OFF - Causes phase lock interrupt to be disabled .
PLI ? -Returns phase lock status , on or off .
RQS ON
Enables
service request
generation
.
RQS OFF -
Disables
service
request
generation
.
RQS ?
Returns service
request generation status , on
or
off .
USER
ON -
Enables
service
request generation upon
user's pressing front panel INST ID pushbutton .
3-3
