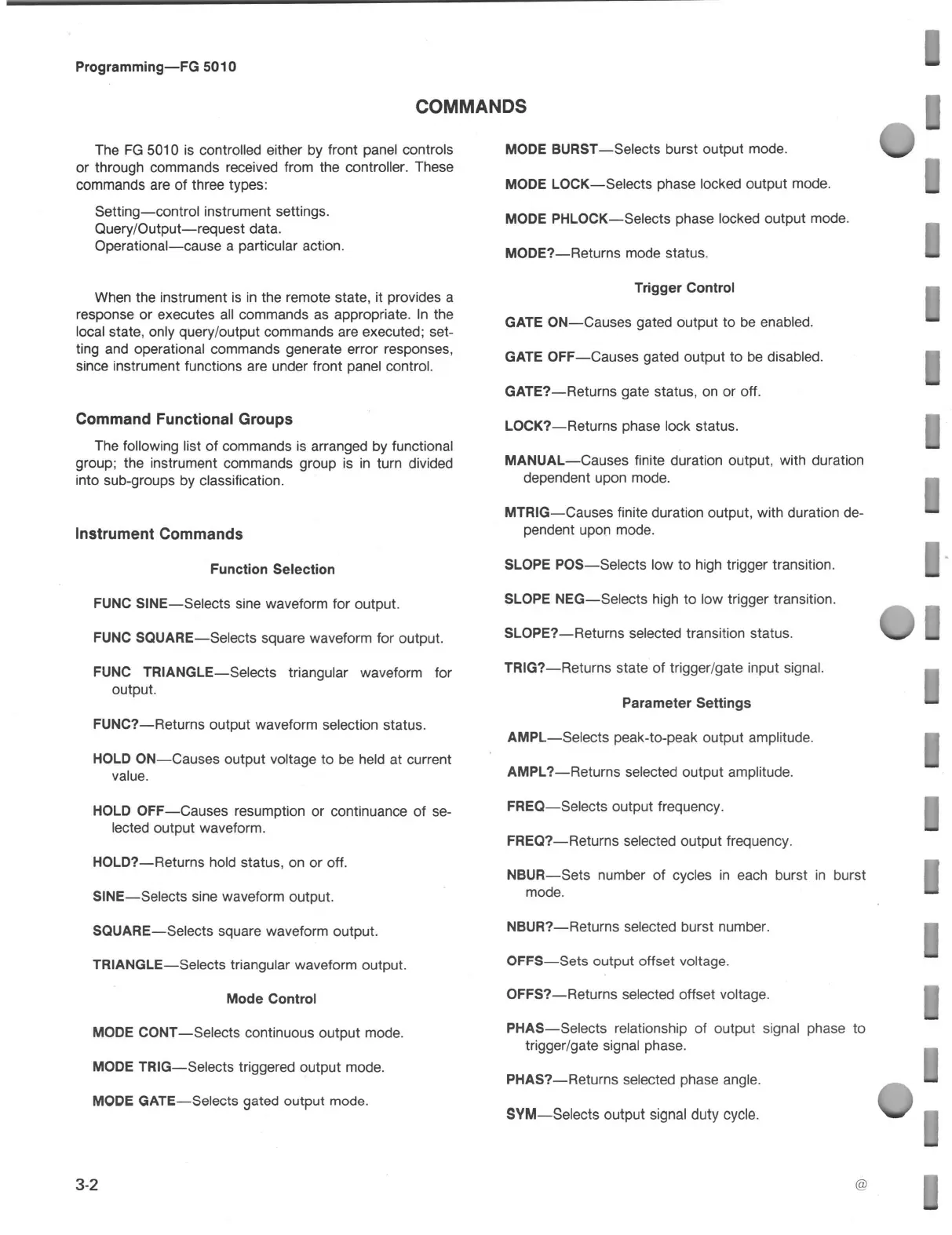

Programming -
FG 5010
The FG 5010 is controlled either by front panel controls
or
through
commands
received from the
controller .
These
commands are of
three types
:
Setting control instrument settings .
Query / Output - request data .
Operational -
cause a
particular action
.
When the instrument is in the remote state , it provides a
response or executes all commands as appropriate . In the
local state , only query / output commands are executed ; set
ting and operational commands generate error responses ,
since instrument functions are under front panel control .
Command
Functional
Groups
The following list of commands is arranged by functional
group ; the instrument commands group is in turn divided
into
sub -
groups by
classification
.
Instrument Commands
COMMANDS
Function
Selection
FUNC
SINE
-
Selects
sine waveform
for
output .
FUNC
SQUARE -
Selects
square
waveform
for
output .
FUNC TRIANGLE - Selects triangular waveform for
output .
FUNC ?
-Returns
output
waveform selection status .
HOLD ON - Causes output voltage to be held at current
value .
HOLD OFF - Causes resumption or continuance of se
lected output waveform .
HOLD ?
Returns
hold
status , on or
off .
SINE
-
Selects sine
waveform
output
.
SQUARE -
Selects
square
waveform
output .
TRIANGLE -
Selects
triangular
waveform
output
.
Mode Control
MODE
CONT
-
Selects continuous
output mode
.
MODE
TRIG
-
Selects
triggered
output
mode
.
MODE
GATE
-
Selects
gated
output
mode
.
3-2
MODE BURST - Selects burst output mode .
MODE LOCK - Selects phase locked output mode .
MODE PHLOCK - Selects phase locked output mode .
MODE ? -Returns mode status .
Trigger
Control
GATE ON - Causes gated output to be enabled .
GATE OFF - Causes gated output to be disabled .
GATE ?
Returns
gate
status , on or off
.
LOCK ?
Returns
phase
lock status .
MANUAL - Causes finite duration output , with duration
dependent upon
mode .
MTRIG - Causes finite duration output , with duration de
pendent
upon mode .
SLOPE
POS -
Selects
low
to high
trigger
transition
.
SLOPE NEG - Selects high to low trigger transition .
SLOPE ? Returns selected transition status .
TRIG
?
Returns
state
of
trigger
/ gate
input
signal
.
Parameter
Settings
AMPL
-
Selects
peak
- to -
peak output
amplitude .
AMPL
?
-Returns
selected
output amplitude .
FREQ -
Selects
output
frequency .
FREQ
?
-Returns
selected
output
frequency .
NBUR - Sets number of cycles in each burst in burst
mode .
NBUR ? Returns
selected burst
number .
OFFS
Sets
output
offset
voltage
.
OFFS
?
Returns
selected
offset
voltage
.
PHAS -
Selects relationship of
output signal
phase to
trigger / gate signal phase .
PHAS
?
Returns
selected
phase
angle
.
SYM
-
Selects
output
signal
duty
cycle
.
(
@
