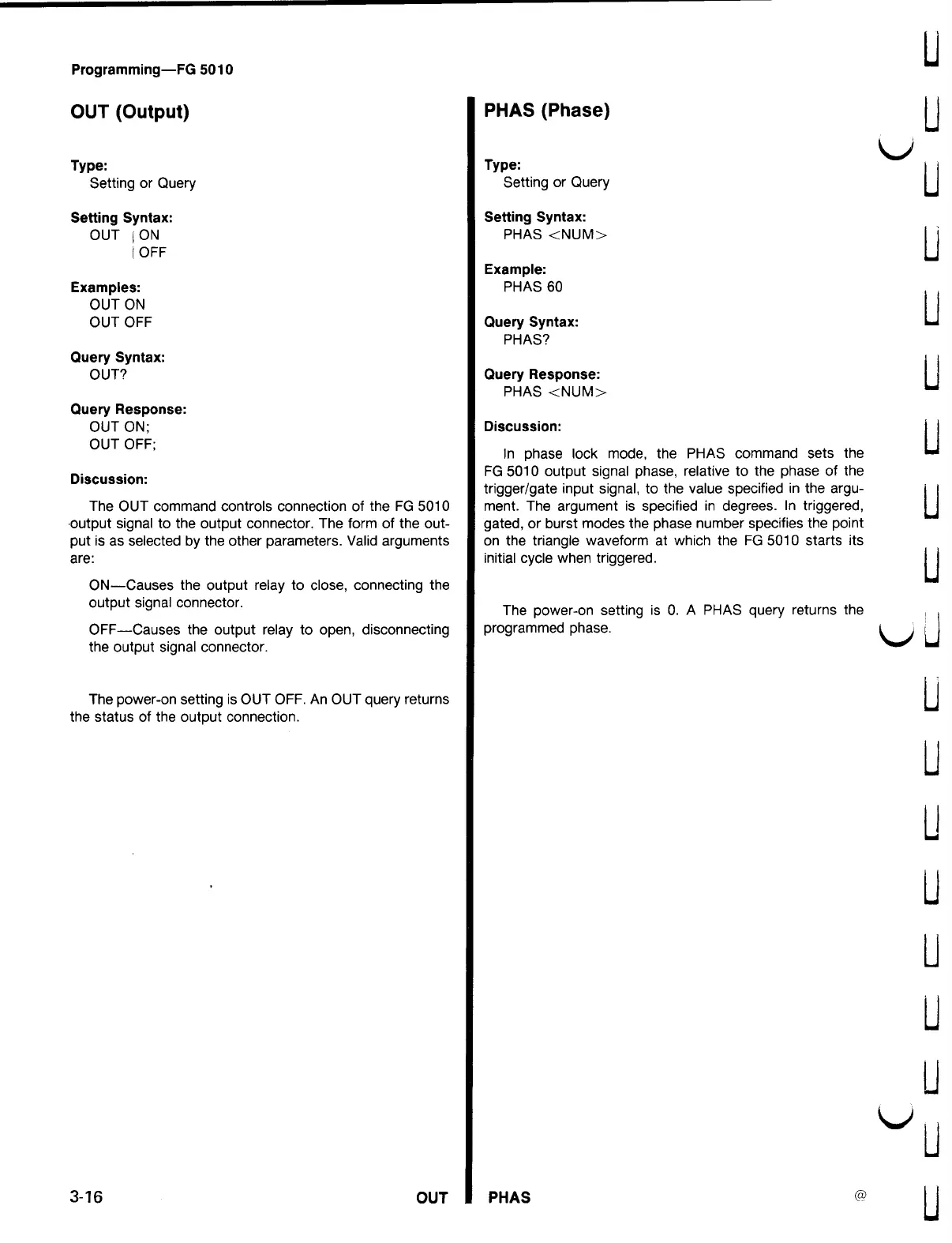

Tektronix FG 5010 User Manual

Programming -
FG 5010
OUT (
Output
)
Type :
Setting or Query
Setting
Syntax
:
OUT
ON
(
OFF
Examples :
OUT ON
OUT OFF
Query Syntax :
OUT
?
Query Response :
OUT
ON ;
OUT
OFF ;
Discussion
:
The OUT command controls connection of the FG 5010
output
signal to
the output
connector . The form
of the out
put is as selected by the other parameters . Valid arguments
are :
ON Causes the output relay to close , connecting the
output
signal
connector .
OFF -
Causes
the
output
relay
to open ,
disconnecting
the output signal connector .
The power - on setting is OUT OFF . An OUT query returns
the status of the output connection .
3-16
OUT
PHAS (
Phase
)
Type
:
Setting or Query
Setting Syntax :
PHAS < NUM >
Example :
PHAS 60
Query
Syntax :
PHAS
?
Query Response :
PHAS < NUM >
Discussion :
In
phase lock
mode , the
PHAS
command sets
the
FG 5010 output signal phase , relative to the phase of the
trigger / gate input signal , to the value specified in the argu
ment . The argument is specified in degrees . In triggered ,
gated , or burst modes the phase number specifies the point
on
the triangle
waveform at which
the FG 5010
starts its
initial cycle
when
triggered .
The
power - on setting
is 0. A
PHAS
query returns the
programmed
phase .
PHAS
©
U
U
U
U
U
U
U
U
U
U
U
