Getting Started

TDS3000, TDS3000B, and TDS3000C Series Programmer Manual

1-9

Push the UTILITY button, then push the System bottom button to select I/O.

The oscilloscope displays the I/O menu, as shown in Figure 1--8, which contains

the Ethernet Network Settings and Ethernet Printer Settings bottom buttons.

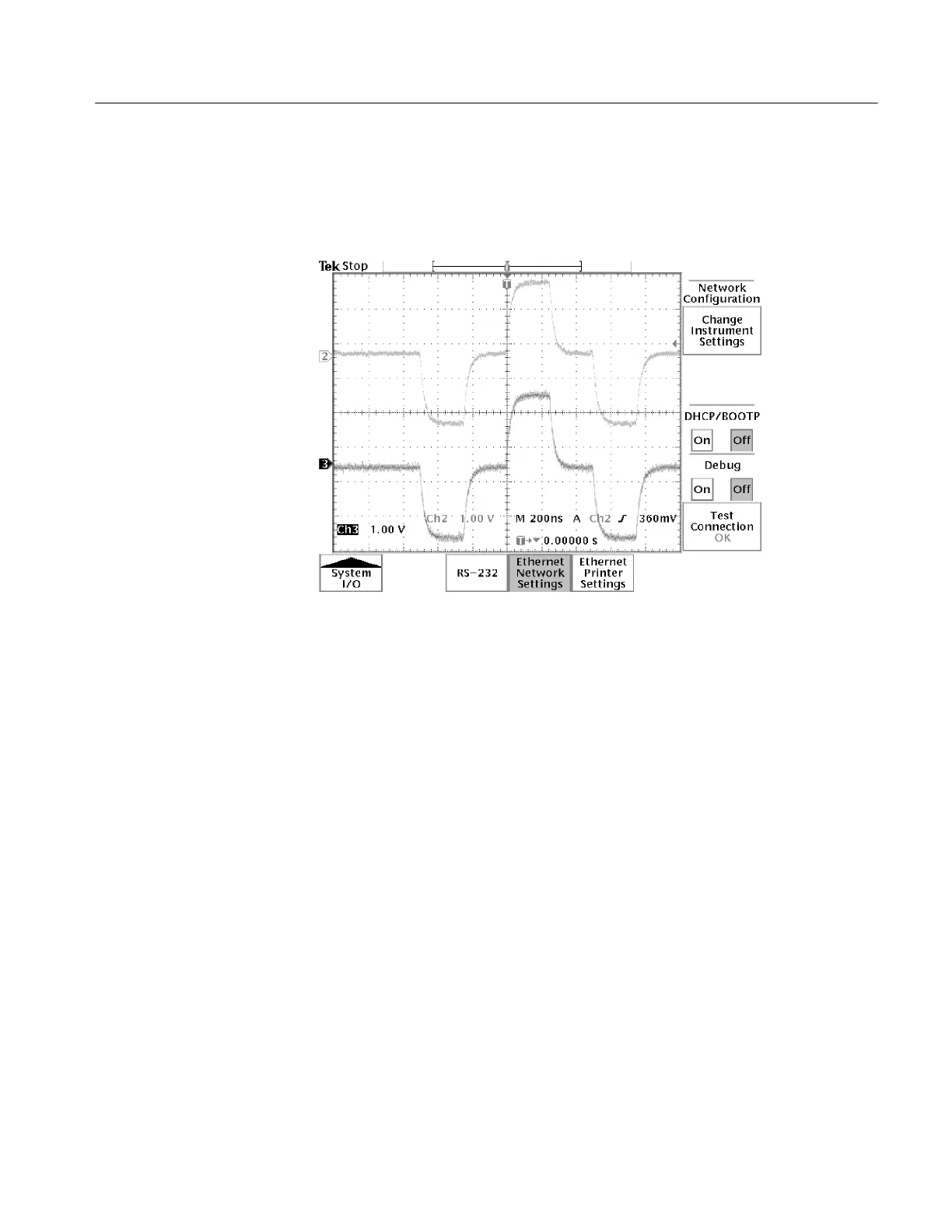

Figure 1- 8: The Ethernet Network Settings menu

Ethernet Network Sett ings Menu. Figure 1--9 shows the Ethernet Change

Instrument Settings screen. Table 1--2 describes the Ethernet Network Settings

fields. The procedures on page 1--13 (for networks that support DHC P/BOOTP)

and 1--14 (for networks that do not support DHCP/BOOTP) describe how to set

up the oscilloscope to communicate on your network using the appropriate

instrument IP information from your network administrator.
