Tenda F6 User Manual

15

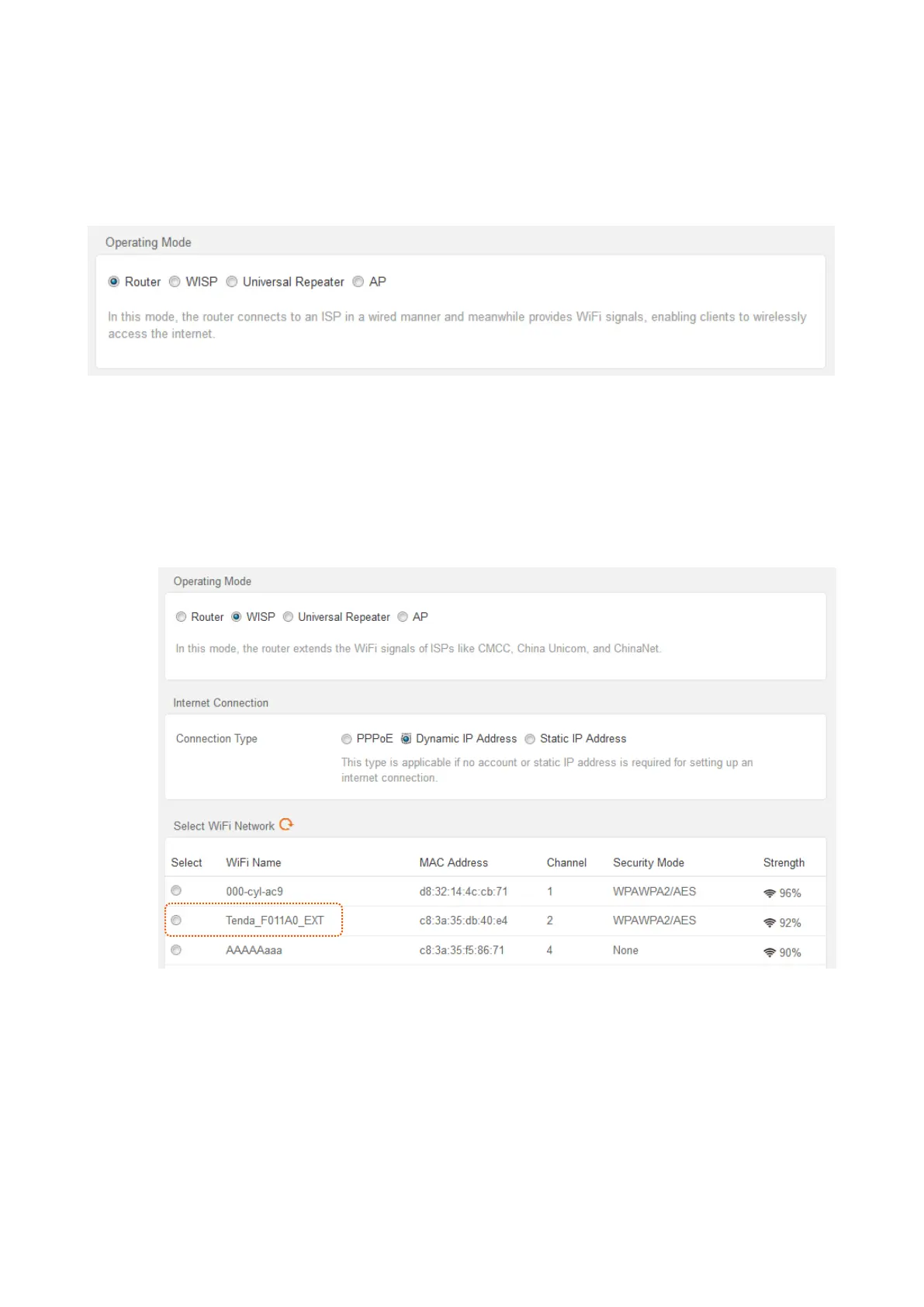

5.2 WISP mode
In WISP mode, this router can connect to a WiFi hotspot provided by ISP in wireless manner, and
provide both wireless and wired network for clients to access internet access.
Choose Internet Settings to access the configuration page.
Configuration procedure:
Step 1 Choose Internet Settings to access the configuration page.
Step 2 Set Operating Mode as WISP.
Step 3 Select the Connection Type of your WiFi hotspot and enter the related parameters as
required.
Step 4 Select the WiFi name to connect.
Step 5 If the wireless network of the upstream device is encrypted, enter the password of the
upstream WiFi network.

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
