Tenda F6 User Manual

45
9.6 UPnP
UPnP is short for Universal Plug and Play. This function enables the router to implement automatic
port forwarding by automatically detecting UPnP-based application programs and enabling ports
on the router for the applications. It is generally used for P2P programs, such as BitComet and
AnyChat, and helps to increase the download speed.

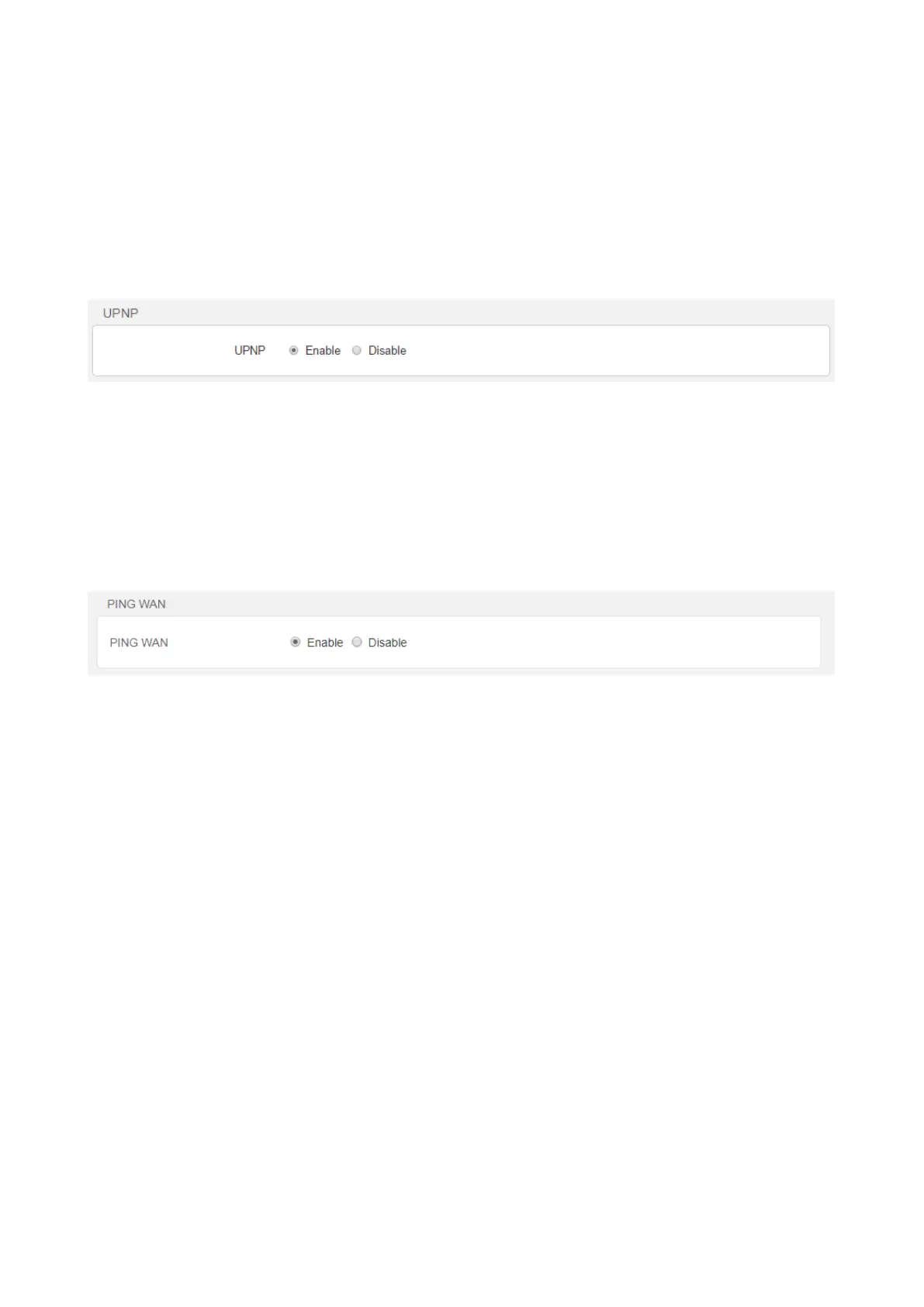

Choose Advanced, and move to UPnP module to enter the configuration page. It is enabled by
default, see the following figure.
9.7 PING WAN
It enables you to ping the WAN port IP address over the internet to check the connectivity
between the router and the internet. It is enabled by default.
Choose Advance, and move to PING WAN module to enter the configuration page. It is enabled by
default, see the following figure.

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
