Tenda F6 User Manual

24

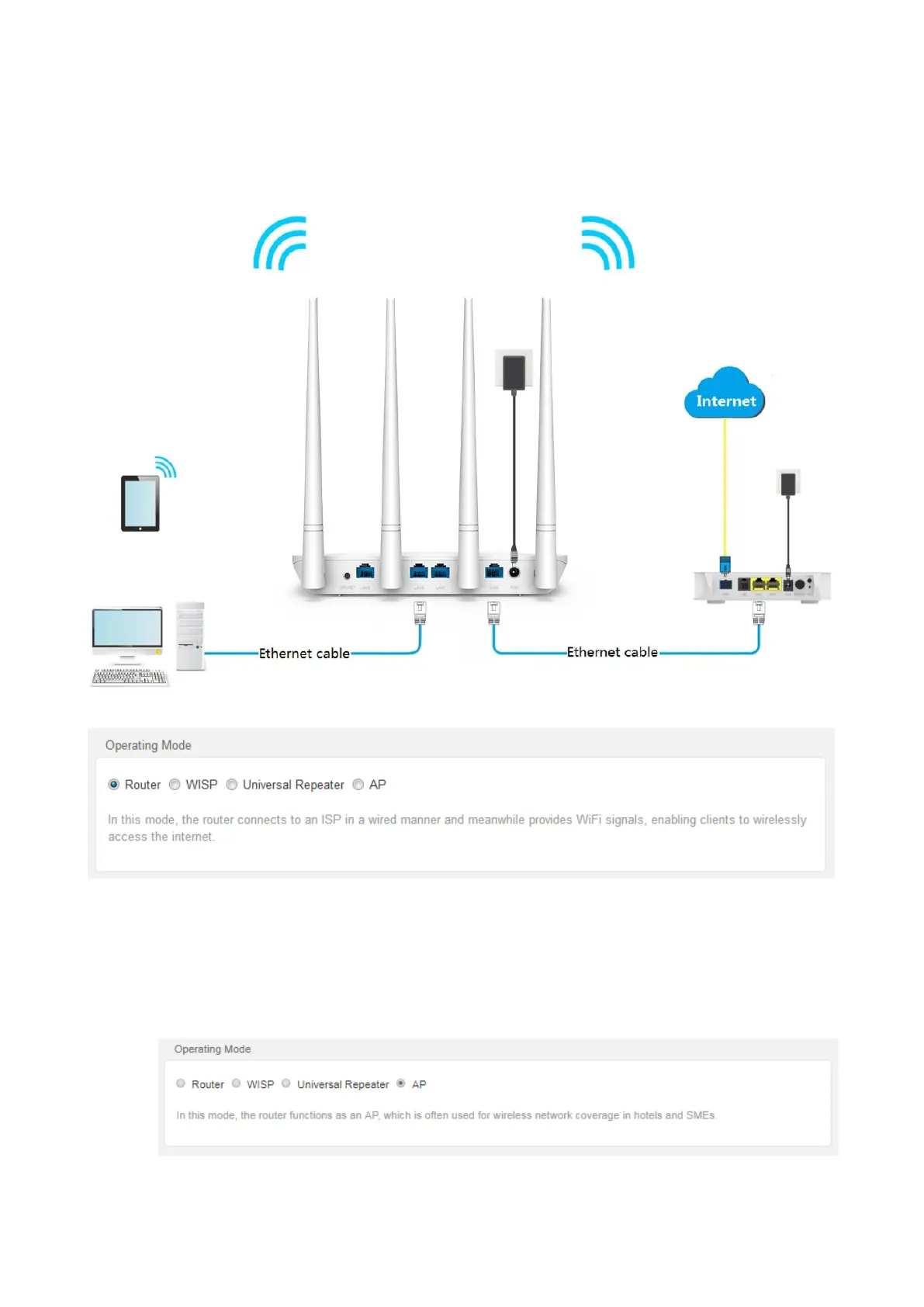

5.4 AP mode
In AP mode, the router connects to the internet using an Ethernet cable and converts wired
network into wireless network to provide wireless network coverage. In AP mode, the WAN port
also serves as a LAN port. It applies to the scenario showing as below:
Choose Internet Settings to access the configuration page.
Configuration procedure
Step 1 Connect a LAN port of the router to a LAN port of the upstream device which is connected
to the internet successfully.
Step 2 Choose Internet Settings to access the configuration page.
Step 3 Set Operating Mode as AP, and click OK at the bottom of the page.
Step 4 Click OK in the popup window.
Gateway

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
