Tenda F6 User Manual

20

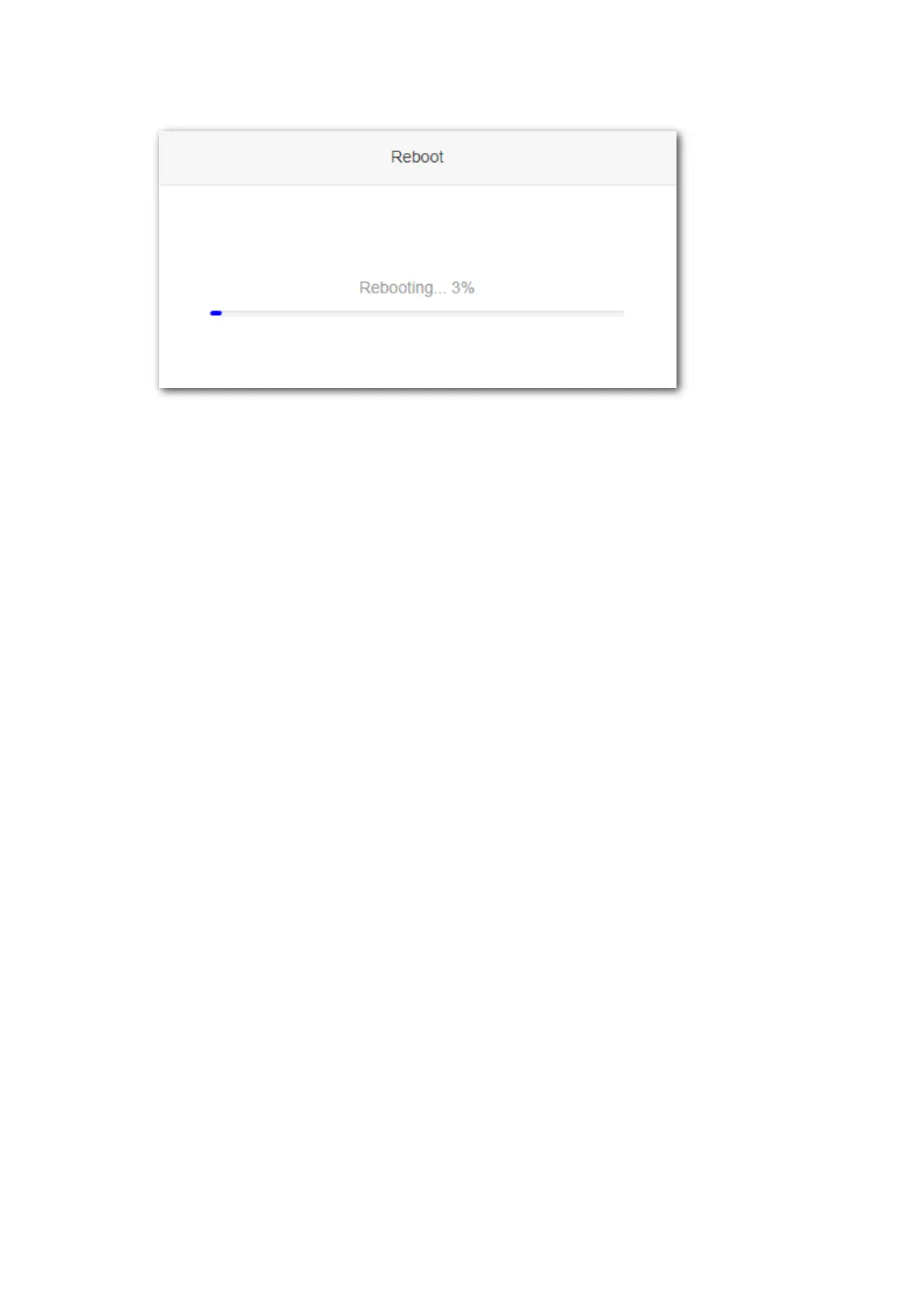

Step 5 Click Connect and wait for the router to reboot.
---End
Wait until the progress bar is complete. Log in to the web UI of the router again. Choose Status >
Internet Connection Status to check the connection status.
An example of configuring universal repeater mode
Application scenario
Tom uses a wireless router (main router) for internet access in his apartment. The router is placed
in the main bedroom. The WiFi signal is strong in the main bedroom, but too poor in dining room
and balcony to access the internet. For better connection, Tom uses a Tenda F6 router placed in
the living room to extend the WiFi network coverage.
The universal repeater mode of F6 can meet the requirement.

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
