Tenda N301 User Manual

4

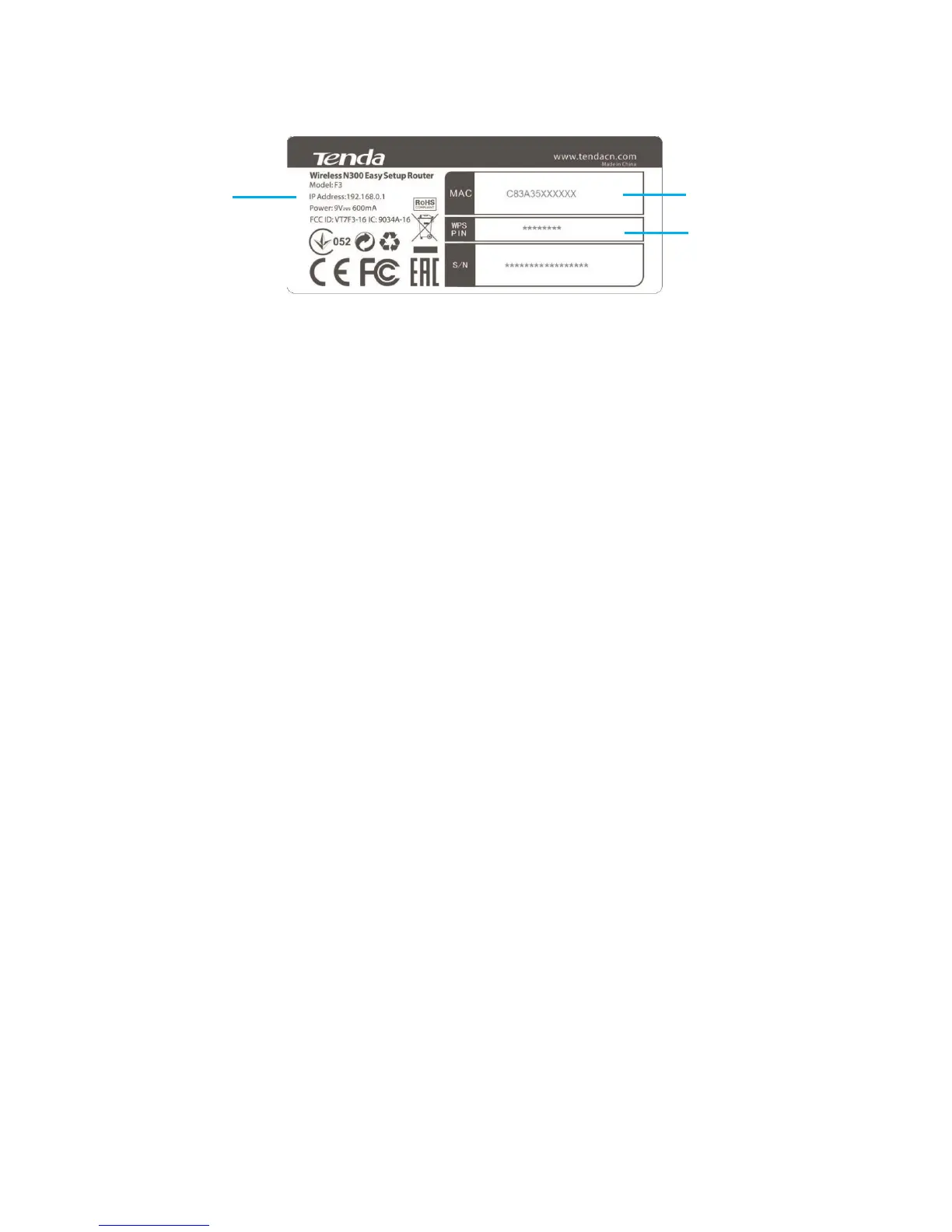

1.3.3 Label on the Bottom
(1) Default IP address of the router. You can use the IP address to access the router web UI.
(2) MAC address of the router. Each router has a unique MAC address and the default WiFi name
(Tenda_XXXXXX) consists of “Tenda_” and the last six characters of the MAC address.
(3) WPS PIN code of the router. The PIN code may be required by a wireless client, such as a smart
phone, when the client is connected to the router using the WPS function.
(1)
(2)
(3)

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
