Tenda N301 User Manual

59

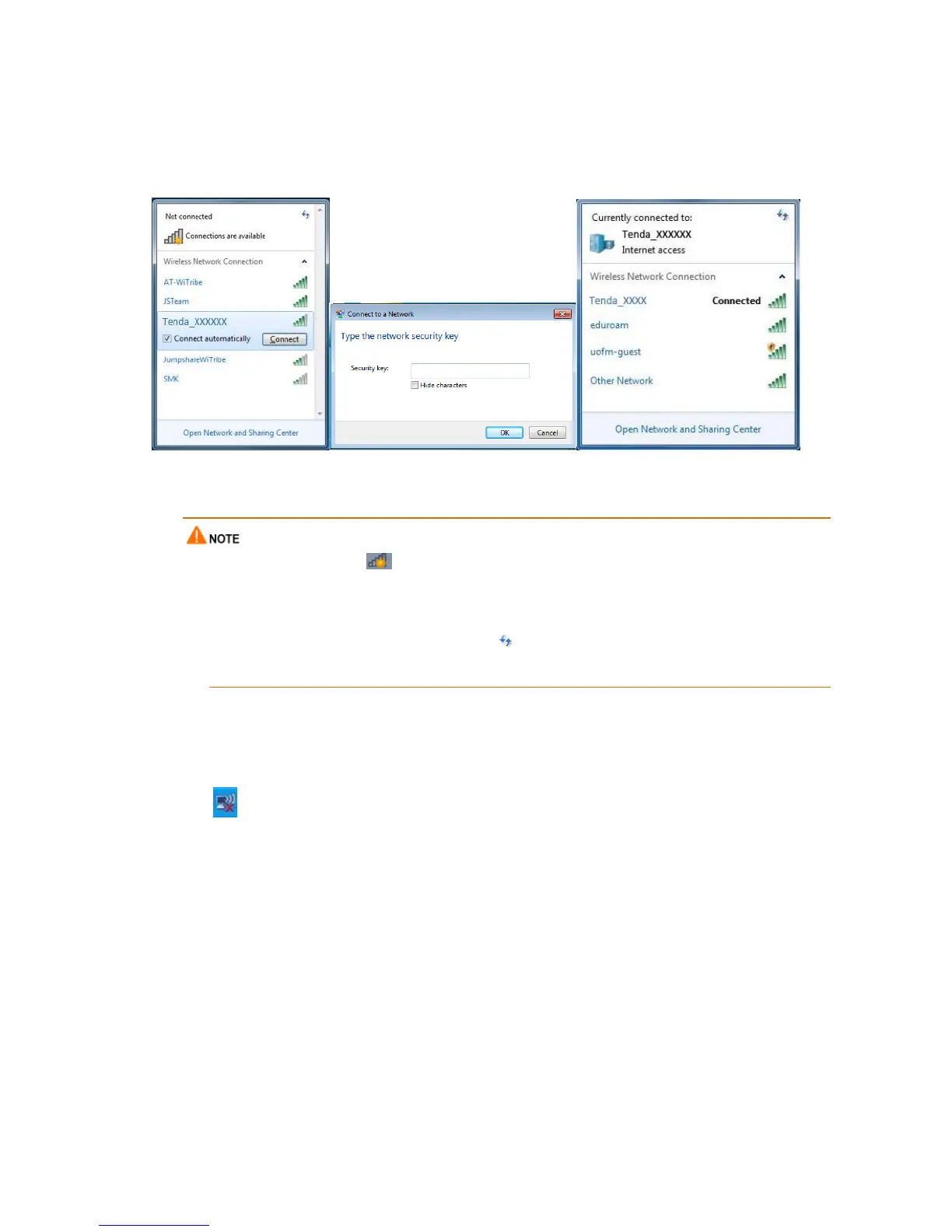

Step 2 Select the WiFi network of the router from the network list that appears.
Step 3 Enter the WiFi password (network security key) of the WiFi network.
Step 4 Click OK.
---End
 If you cannot find the icon, choose Start > Control Panel > Network and Internet > Network
and Sharing Center, click Change adapter settings, right-click Wireless Network Connection, and
choose Disable. Then, right-click Wireless Network Connection, and choose Enable.
 If the wireless network is not detected, click in the upper-right corner to refresh the list of wireless
networks.
A.1.3 Windows XP
Step 1 Click in the lower-right corner of the desktop.
Step 2 Select the WiFi network from the list that appears.
Step 3 Enter the WiFi password (network security key) of the WiFi network.
Step 4 Click Connect.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
