Tenda N301 User Manual

31
strong in the living room and master bedroom, but very weak in the other bedrooms and the restrooms.
Solution
To improve internet connectivity, the user can add a Tenda F3 router and configure the wireless
repeating function of the router to extend the WiFi network coverage. That will eliminate blind areas in
the apartment, enabling the user to access the internet anywhere in the apartment.

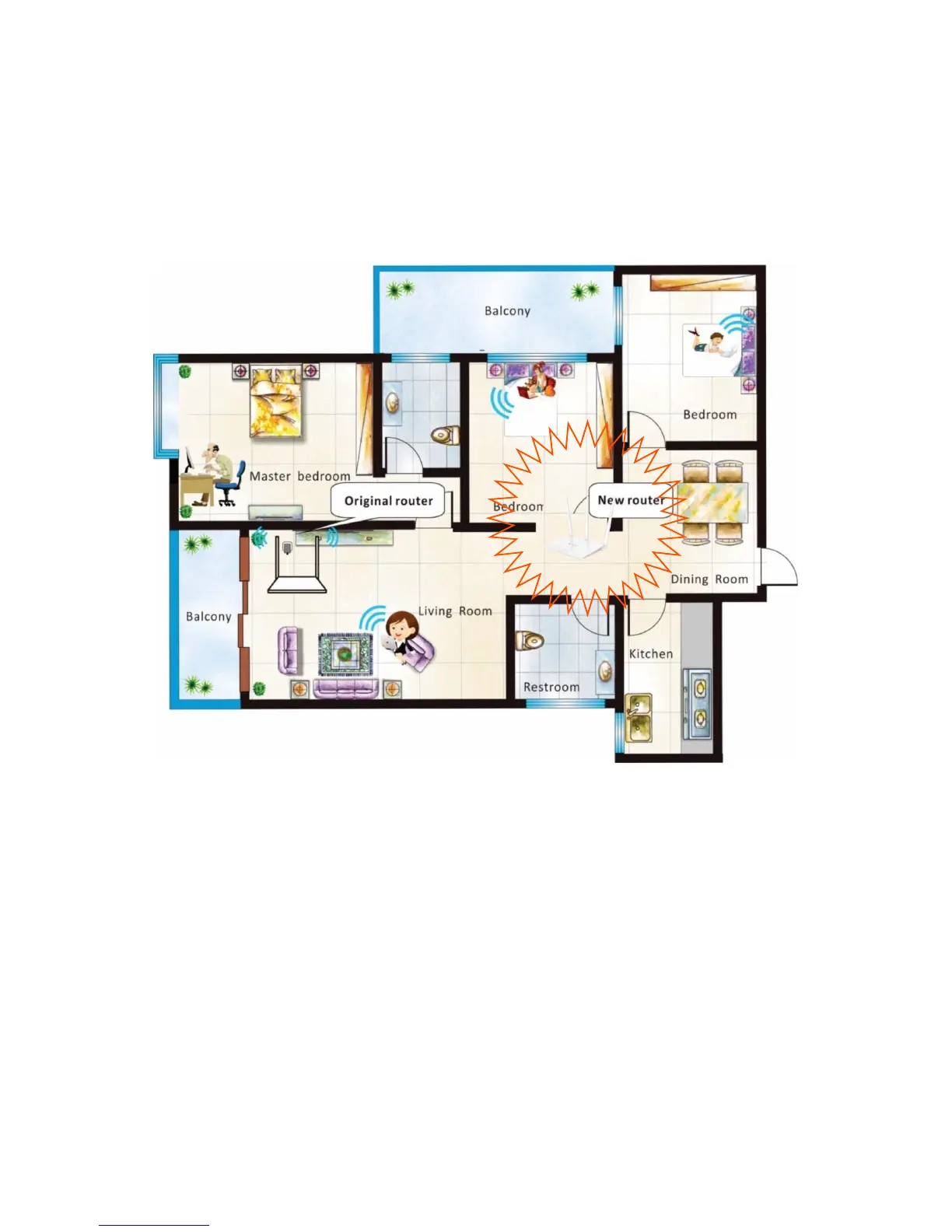

The following figure shows the application scenario.
Before configuring the new router:

Ensure that the WAN port of the new router is not connected.

Ensure that the original router can access the internet.

Record the WiFi name and password of the original router, which are Tenda_2
and 12345678 in this example.
3.5.1 Enabling the WISP Mode
Log in to the web UI of the new router, and choose Wireless Repeating.
Assume that the router connections shown in the following figure are set up.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
