Tenda N301 User Manual

53
--End
3.8.6 Device Management
This section helps you maintain your router to improve the performance of your router and extend the
durability of your router.

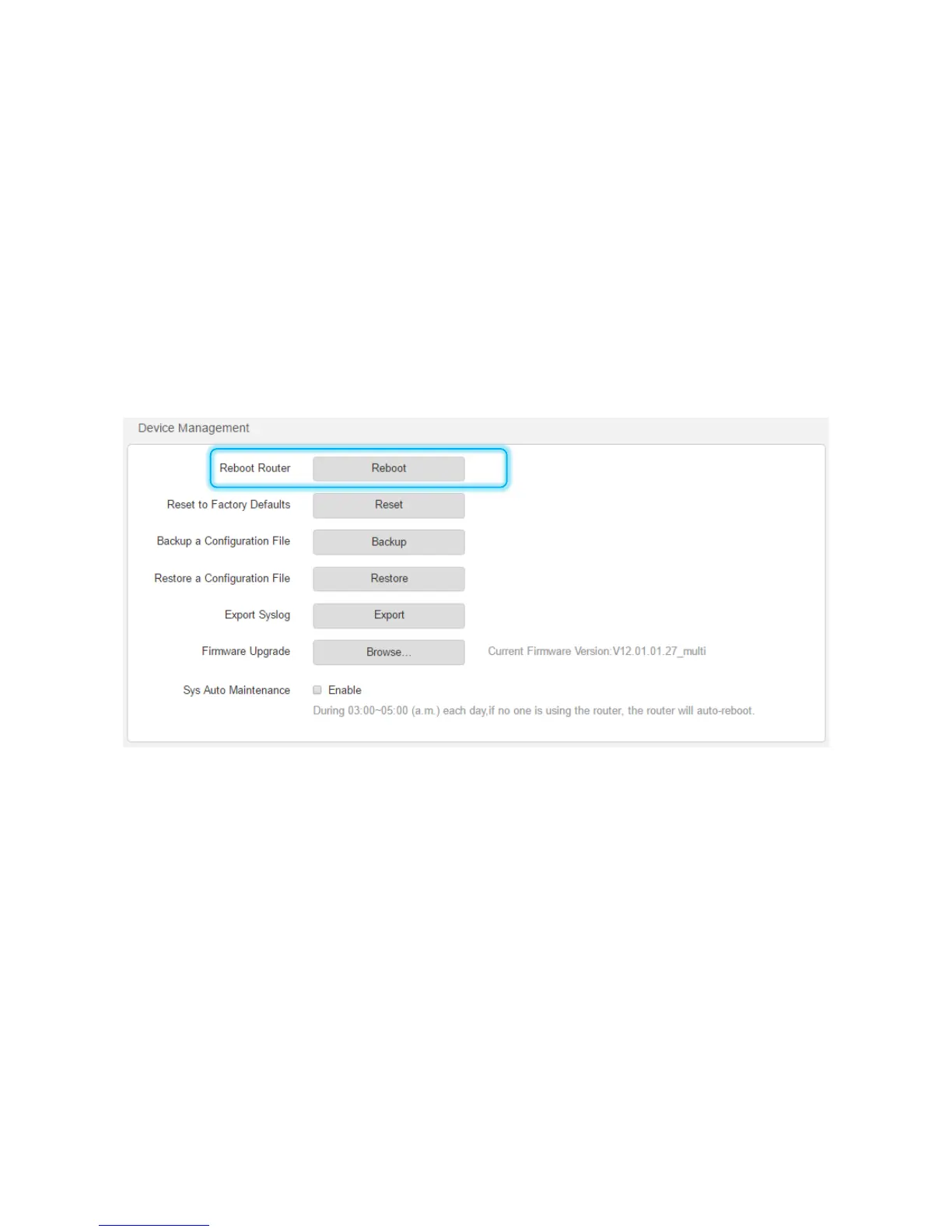

Reboot Router
If a setting fails to take effect or the router fails to work properly, you can try rebooting the router. To
reboot the router, choose Administration > Device Management, and click Reboot.
Click OK in the dialog box that appears.
Reset to Factory Settings
If you are uncertain about why the internet is inaccessible through the router or forget the login password
of the router, you can reset the router to restore the factory settings.
The router can be reset on the web UI or using the Reset button.
Reset the Router on the Web UI
Choose Administration > Device Management and click Reset.
Click OK on the dialog box that appears.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
