Tenda N301 User Manual

52
Step 4 Set Port to the port number of the web service, which is generally 8080. You can also select a
port number from 1024~65535, but the port number must not be the same as that for port
forwarding.
Step 5 Click OK.
---End
Remote Access
Enter http://102.33.66.88:8080 in the address bar of a web browser of computer 2 and log in to the router
web UI to perform remote management.
The public IP address of the router may change. Therefore, you need to confirm the IP address each time you
want to remotely log in to the router web UI, which is troublesome. To address this issue, you can use the
DDNS function to bind the public IP address with a fixed domain name, so that you can use the domain name to
log in to the router web UI. To implement this measure, configure the DDNS function and then the remote
management function of the router.

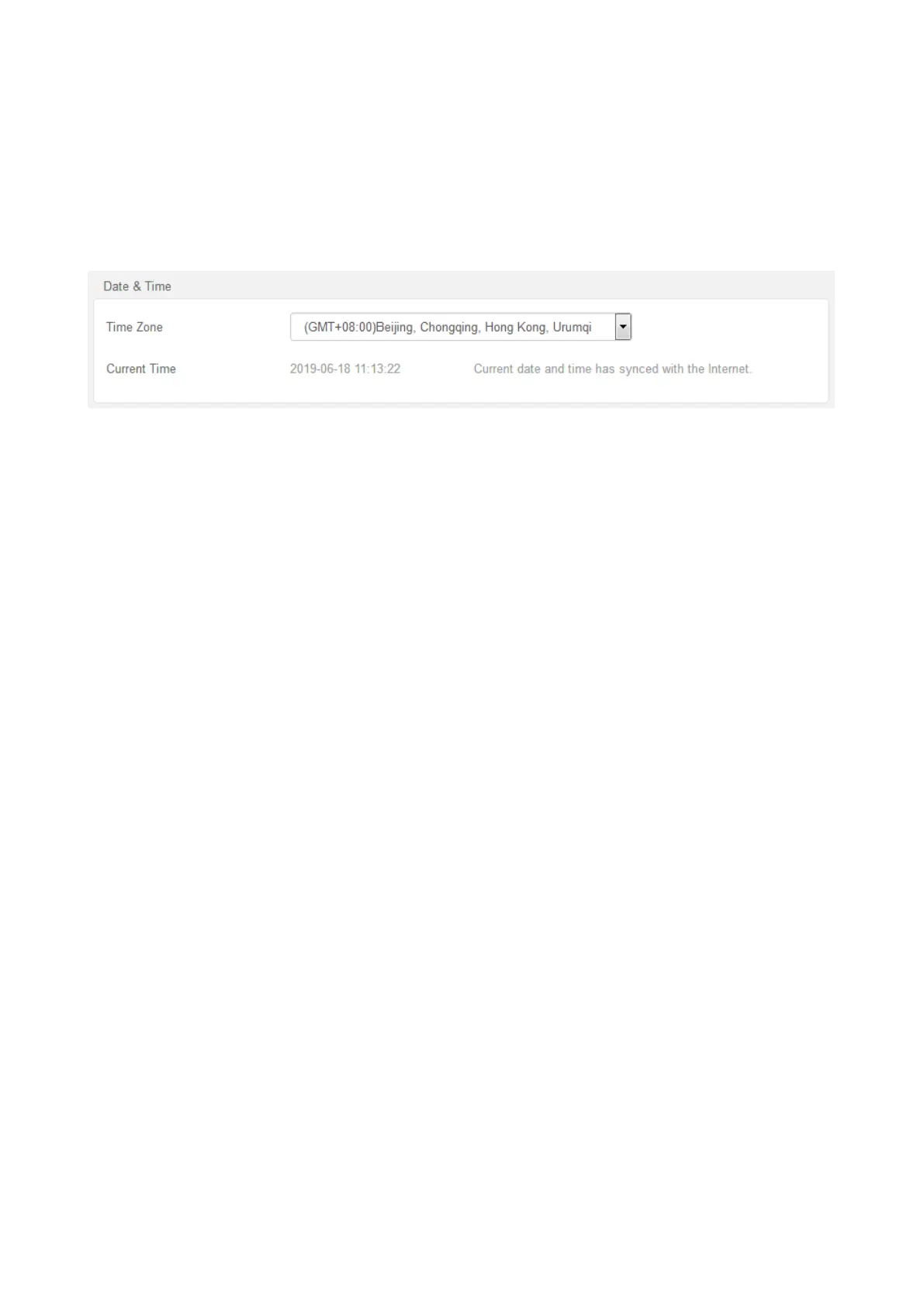

3.8.5 Date & Time
If the system time of the router is incorrect, all the router functions depending on the system time are
affected, including the WiFi schedule, parental control and automatic system maintenance functions.
Upon completion of configuration with the Quick Setup Wizard, the router synchronizes its system time
with the computer used to configure the router. You can change the setting manually.
Procedure
Step 1 Choose Administration > Date & Time.
Step 2 Select your time zone from the Time Zone drop-down list box.
Step 3 Click OK.

Tenda N301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	11, 54, 300 Mbit/s
Ethernet LAN (RJ-45) ports	3
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS
Antennas quantity	2
Antenna gain level (max)	5 dBi
Product color	White
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoH
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127.4 mm
Width	90.5 mm
Height	26 mm
Weight	- g
