Planetary-Gear-Drivewith
LubricantQuantity
0.62L(21oz);refertoPlanetary-Gear-Drive
LubricantSpecication(page65)
FillingthePlanetary-Gear-Drive
withLubricant
1.Throughthell-plughole,slowlyaddthe
speciedgearlubricant;refertoFigure87in
CheckingthePlanetary-Gear-DriveLubricant
(page65).
Youshouldseethelubricantlevelatthebottom
ofthethreadsinthecheck-plughole.
Important:Iftheplanetary-geardrivells
beforethespeciedlubricantquantityis
added,wait1hourorinstalltheplugs,and
movethemachineapproximatelytenfeetto
distributethelubricantthroughthebrake
system.Then,removetheplugsandaddthe
remaininglubricant.
2.Allowthelubricantleveltosettlefor10minutes,
checkthelubricantlevel,andaddlubricantas
neededtoraisetheleveltothebottomofthe
threadsinthecheck-plughole.
3.Installthellplugandcheckplug;referto
Figure87inCheckingthePlanetary-Gear-Drive
Lubricant(page65).
4.RepeatthestepsinDrainingthe
Planetary-Gear-DriveLubricant(page66)
andFillingthePlanetary-Gear-Drivewith
Lubricant(page67)fortheplanetary-geardrive
attheothersideofthemachine.
AdjustingtheFrontWheel
Toe-In
ServiceInterval:Every200hours/Yearly(whichever
comesrst)
Youshouldmeasure0to3mm(0to1/8inch)between
thefrontcenterlineofthetiresandthebackcenterline
ofthetires.
1.Checkandllalltires;refertoCheckingtheTire
AirPressure(page23).
2.Measurethedistancebetweenofthefronttires
attheaxleheightatthefrontandrearofthe
fronttires(Figure90).
Note:Thedistancebetweenthefrontofthe
tiresshouldbe0to3mm(0to1/8inch)less
thanthedistancebetweenthebacksideofthe
fronttires.

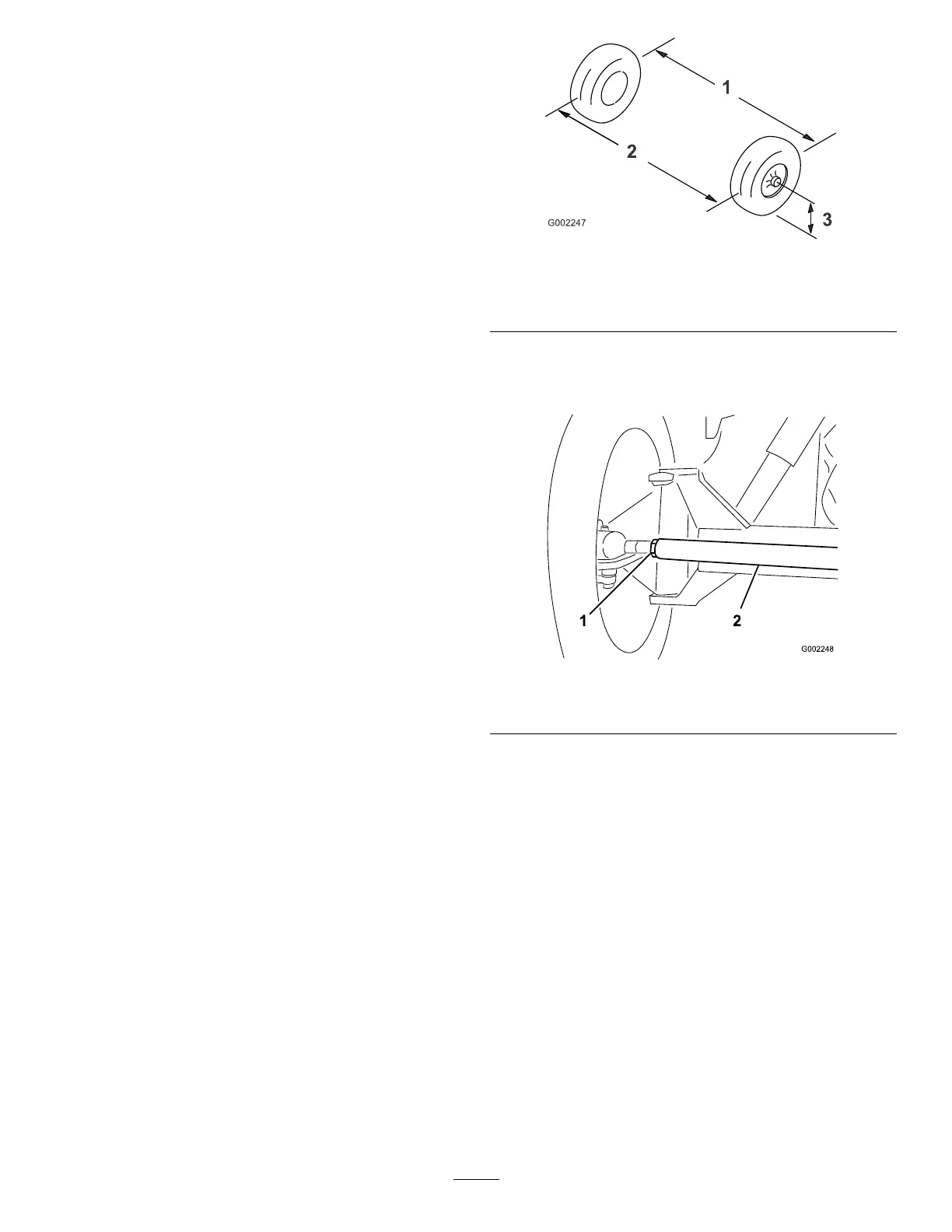

g002247
Figure90
1.Tirecenterline—back3.Axlecenterline
2.Tirecenterline—front
3.Ifthemeasurementdoesnotfallwithinthe
speciedrange,loosenthejamnutsatboth
endsofthetierod(Figure91).
g002248
Figure91
1.Jamnut2.Tierod
4.Rotatethetierodtomovethefrontofthetire
inwardoroutward.
5.Tightenthetierodjamnutswhentheadjustment
iscorrect.
6.Ensurethatthesteeringwheelrotatesanequal
amountinbothdirections.
67
