8

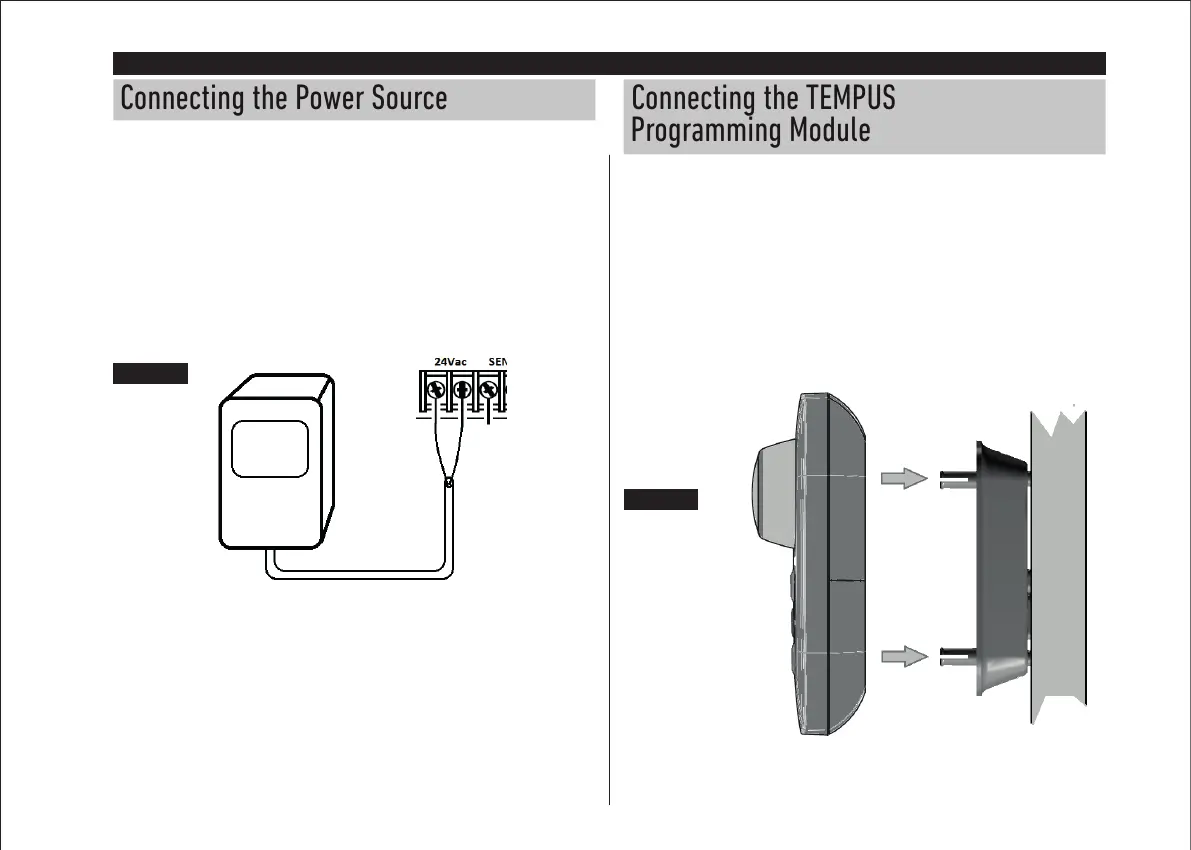

Connecting the Power Source
1. Route 10 cm of the transformer wire cable into the controller through the conduit
(C) of Figure 1 or through the knockout (if conduit is not used).
2. Connect the transformer cable brown and blue to the terminals labeled “24 VAC”.
See Figure 5.
3. Plug the transformer into the wall plug socket.
AUS: 230-240 VAC 50Hz
EU: 220-240 VAC 50Hz
US: 120 VAC 60Hz
Connecting the TEMPUS
Programming Module
In order to complete the TEMPUS Controller assembly connect the Programming
Module onto the Back Module by simply aligning the two and pressing them together.
Programming Module may be programmed also when detought from back module. In
order to work in this way, programming module needs to be recharged for 5 minutes
minimum (attached to the back module) the first time it is operated or after 24H of
power absense.
Figure 5
Figure 6
Toro TEMPUS Controller 4
_
6
_
8
BACK MODULE
